GENERATOR

EX500D4 NINJA 500 1997 USA CALIFORNIA CANADA

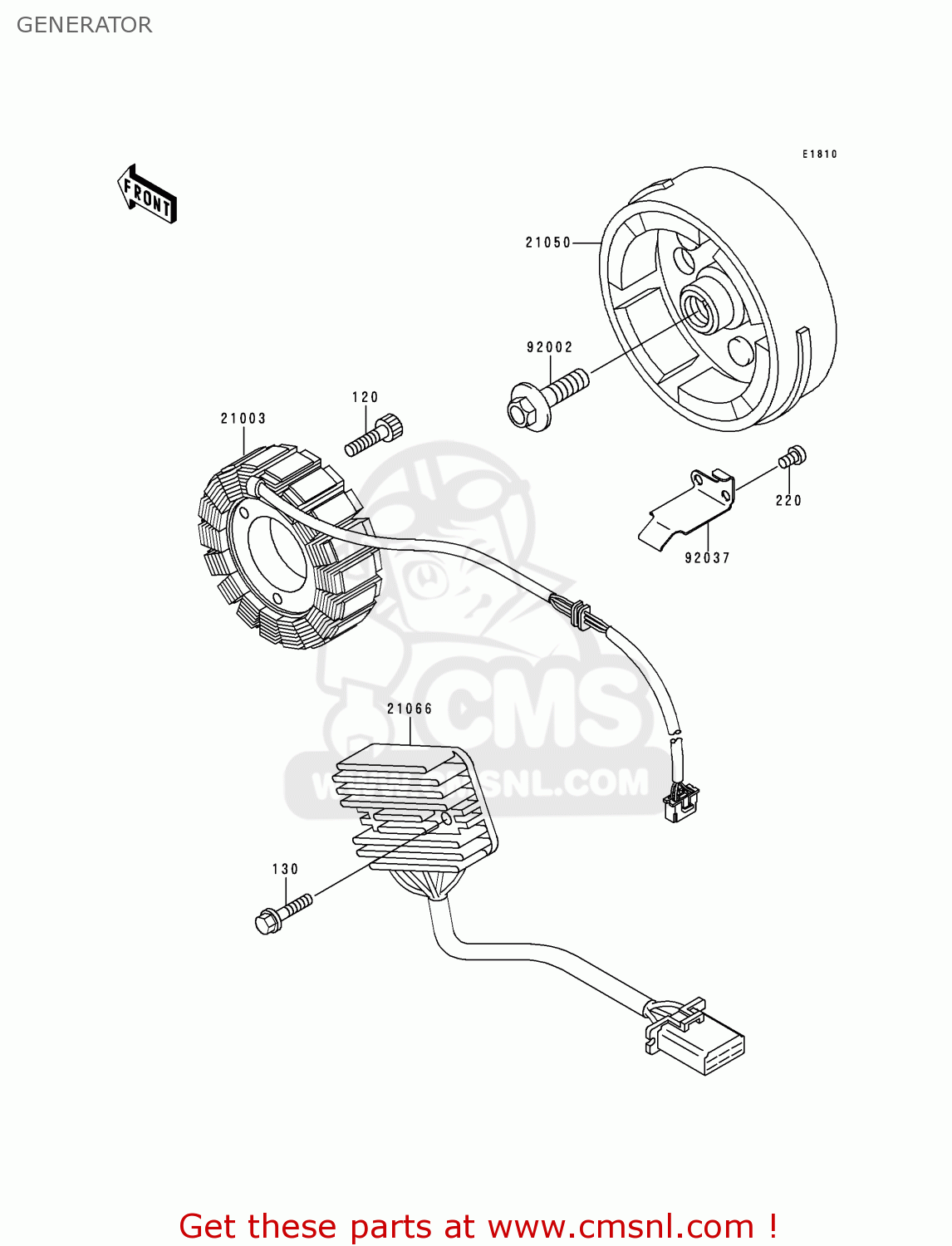

Generator diagram EX500D4 NINJA 500 1997 USA CALIFORNIA CANADA

GENERATOR EX500D4 NINJA 500 1997 USA CALIFORNIA CANADA

GENERATOR EX500D4 NINJA 500 1997 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

120

120P0625
ref: 120

BOLT,6X25

€ 1.50

130

130B0625
ref: 130

BOLT,FLANGED,6X25

€ 0.50

220

220B0510
ref: 220

SCREW-PAN-CROS,5X10

€ 0.50

21003

210031123
ref: 21003

STATOR

€ 485.50

21050

210501162
ref: 21050

FLYWHEEL

€ 646.50

21066

210661030
ref: 21066

REGULATOR-VOLTAGE

€ 176.00

92002

920021457
ref: 92002

BOLT,FLANGED,10X36

€ 8.50

92037

920371630
ref: 92037

CLAMP,GENERATOR LEAD

€ 5.50
