FUEL EVAPORATIVE SYSTEM

EX500D4 NINJA 500 1997 USA CALIFORNIA CANADA

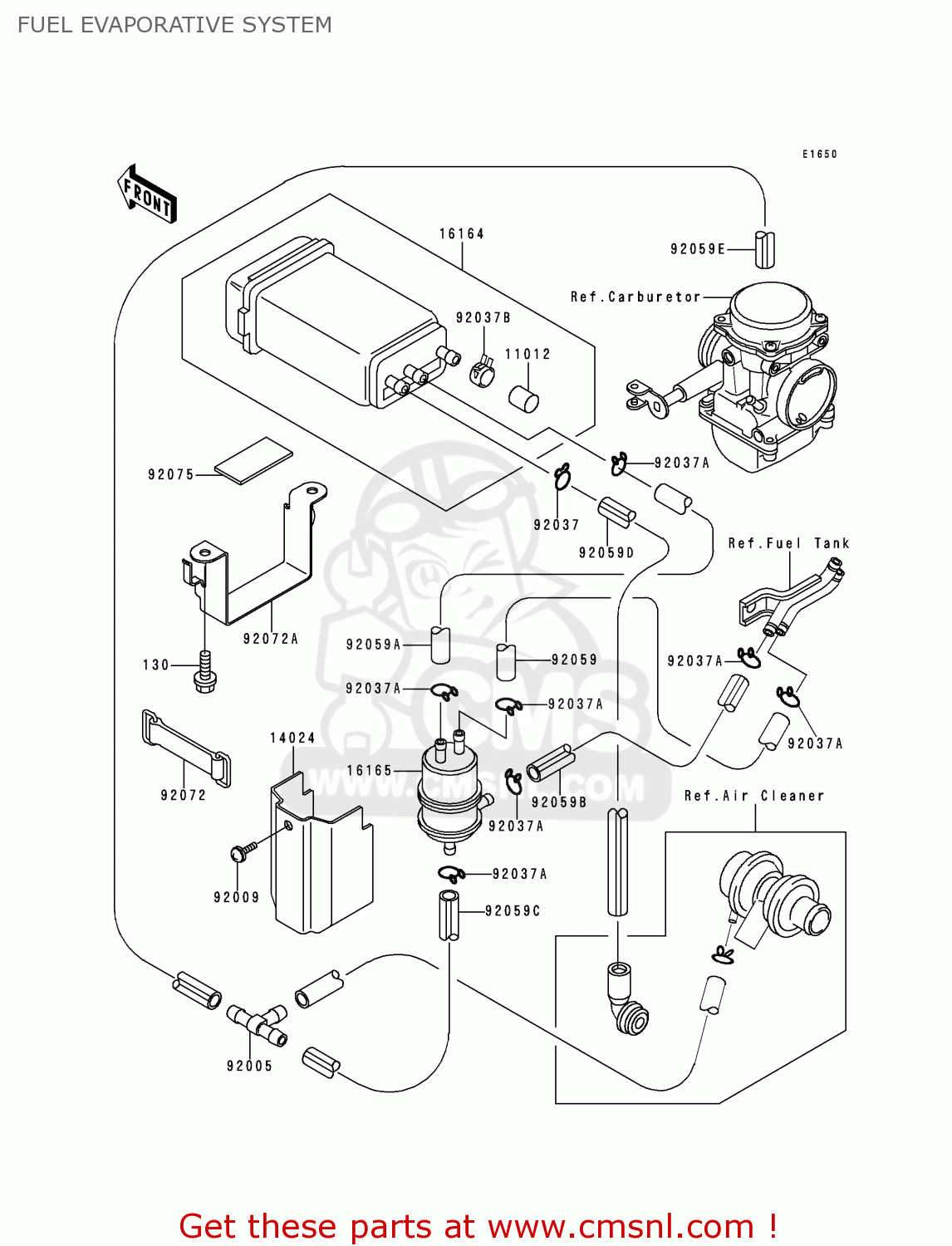

Fuel evaporative system diagram EX500D4 NINJA 500 1997 USA CALIFORNIA CANADA

FUEL EVAPORATIVE SYSTEM EX500D4 NINJA 500 1997 USA CALIFORNIA CANADA
FUEL EVAPORATIVE SYSTEM EX500D4 NINJA 500 1997 USA CALIFORNIA CANADA
FUEL EVAPORATIVE SYSTEM EX500D4 NINJA 500 1997 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130B0612
ref: 130
CA
BOLT-FLANGED,6X12
€ 0.50
11012
110121388
ref: 11012
CA
CANISTER CAP
€ 5.50
14024
140241399
ref: 14024
CA
SEPARATOR COVER
€ 19.50
16164
161641054
ref: 16164
CA
CANISTER
161641054
€ 123.00
16165
161651001
ref: 16165
CA
SEPARATOR
161651001
€ 69.50
92005
920051017
ref: 92005
CA
FITTING,TUBE
920051017
€ 6.50
92009
920091402
ref: 92009
CA
SCREW,6X10
920091402
€ 1.50
92037
920371104
ref: 92037
CA
CLAMP,HOSE
920371104
€ 1.00
92037A
92037147
ref: 92037A
CA
CLAMP,CHAIN OILER
92037147
€ 4.50
92037B
920371512
ref: 92037B
CA
CANISTER CLAMP
€ 3.50
92059
920591496
ref: 92059
CA
TUBE,5X10X170,BLUE
€ 13.00
92059A
920591499
ref: 92059A
CA
TUBE,5X10X320,BLUE
€ 13.00
92059B
920591809
ref: 92059B
CA
TUBE,5X10X250,RED
€ 22.50
92059C
920591824
ref: 92059C
CA
TUBE
€ 11.50
92059D
920591825
ref: 92059D
CA
TUBE
€ 9.00
92059E
920591826
ref: 92059E
CA
TUBE
€ 22.50
92072
92072066
ref: 92072
CA
BAND,L=50
92072066
€ 11.00
92072A
920721216
ref: 92072A
CA
CANISTER BAND
€ 10.00
92075
920751830
ref: 92075
CA
DAMPER
920751830
€ 3.50
