BRAKE PEDAL/TORQUE LINK

EX500D4 NINJA 500 1997 USA CALIFORNIA CANADA

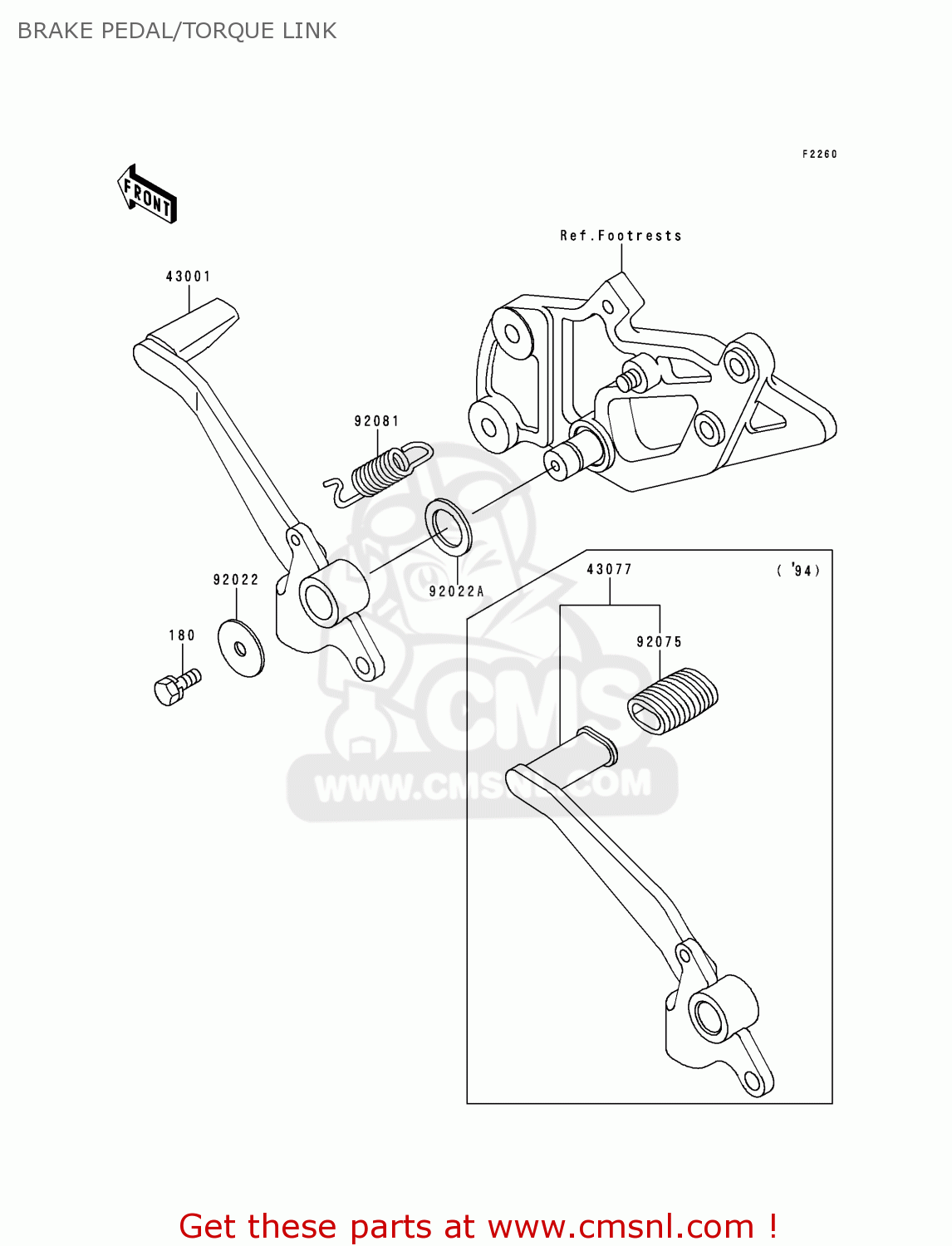

Brake pedal/torque link diagram EX500D4 NINJA 500 1997 USA CALIFORNIA CANADA

BRAKE PEDAL/TORQUE LINK EX500D4 NINJA 500 1997 USA CALIFORNIA CANADA

BRAKE PEDAL/TORQUE LINK EX500D4 NINJA 500 1997 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

180

180D0616
ref: 180

BOLT-UPSET-WS

€ 0.50

43001

430011355
ref: 43001

LEVER-BRAKE,PEDAL

€ 84.50

92022

920221282
ref: 92022

WASHER,7X28X1.6

€ 3.00

92022A

92022326
ref: 92022A

WASHER,15.3X24X1

€ 2.50

92081

920811833
ref: 92081

SPRING,BRAKE PEDAL

€ 7.00
