FENDERS

EX500D4 NINJA 500 1997 USA CALIFORNIA CANADA

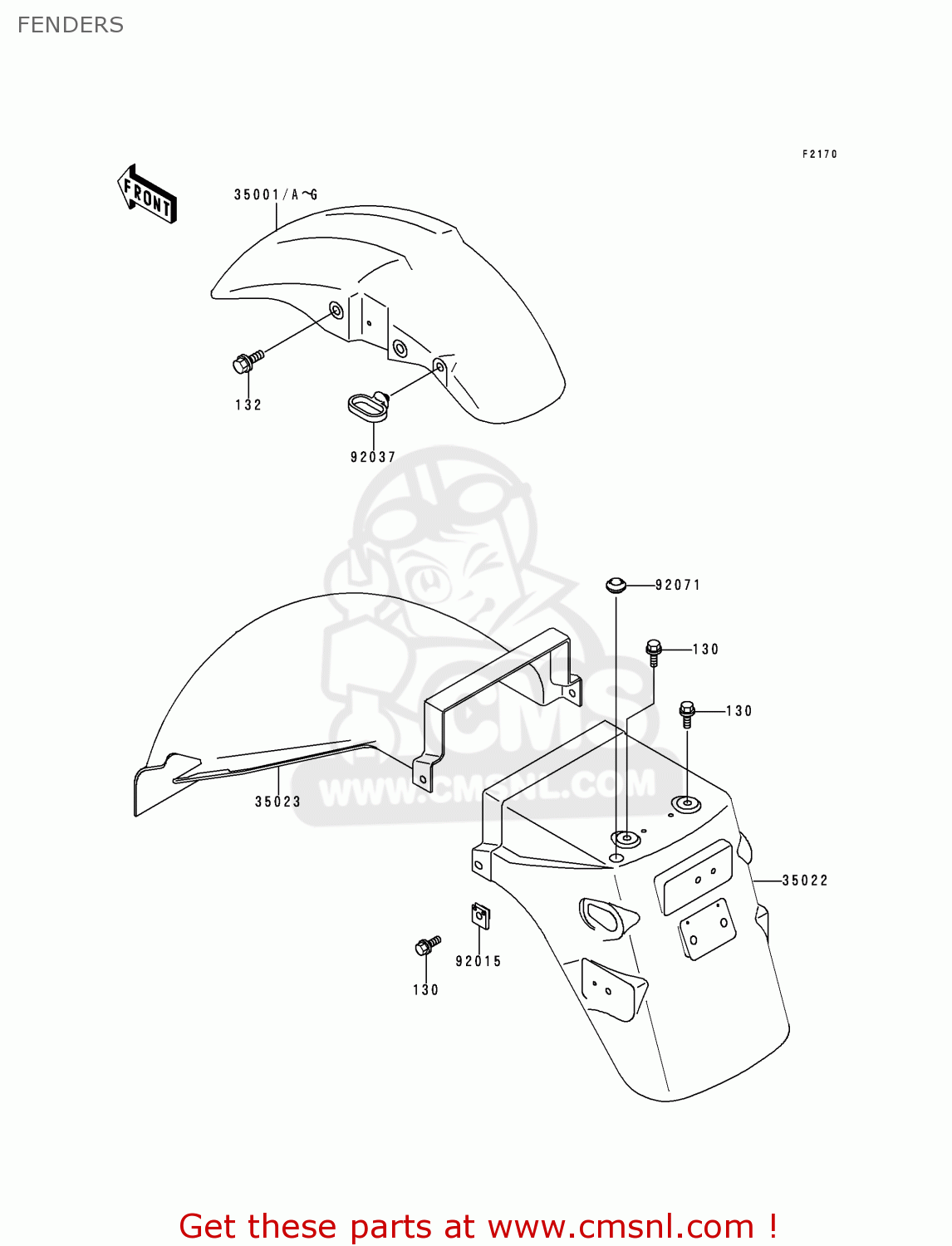

Fenders diagram EX500D4 NINJA 500 1997 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130B0616
ref: 130

BOLT-FLANGED,6X16

€ 0.50

132

132J0820
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

35001A

350011155B1
ref: 35001A

FRONT FENDER ASSEMBLY,FIRECRACKER RED

€ 132.50

35001G

35001115535
ref: 35001G

FRONT FENDER ASSEMBLY,LUMINOUS PEACOCK BLUE

€ 91.50

35022

3502212296Z
ref: 35022

FENDER-COMP-REAR,RR,B

€ 96.50

35023

350231391
ref: 35023

FENDER-REAR,FR

€ 50.50

92015

920151678
ref: 92015

NUT

€ 3.50

92037

920371459
ref: 92037

CLAMP,CABLE

€ 14.50

92071

92071019
ref: 92071

GROMMET,10MM

€ 2.50
