CHASSIS ELECTRICAL EQUIPMENT

EX500D4 NINJA 500 1997 USA CALIFORNIA CANADA

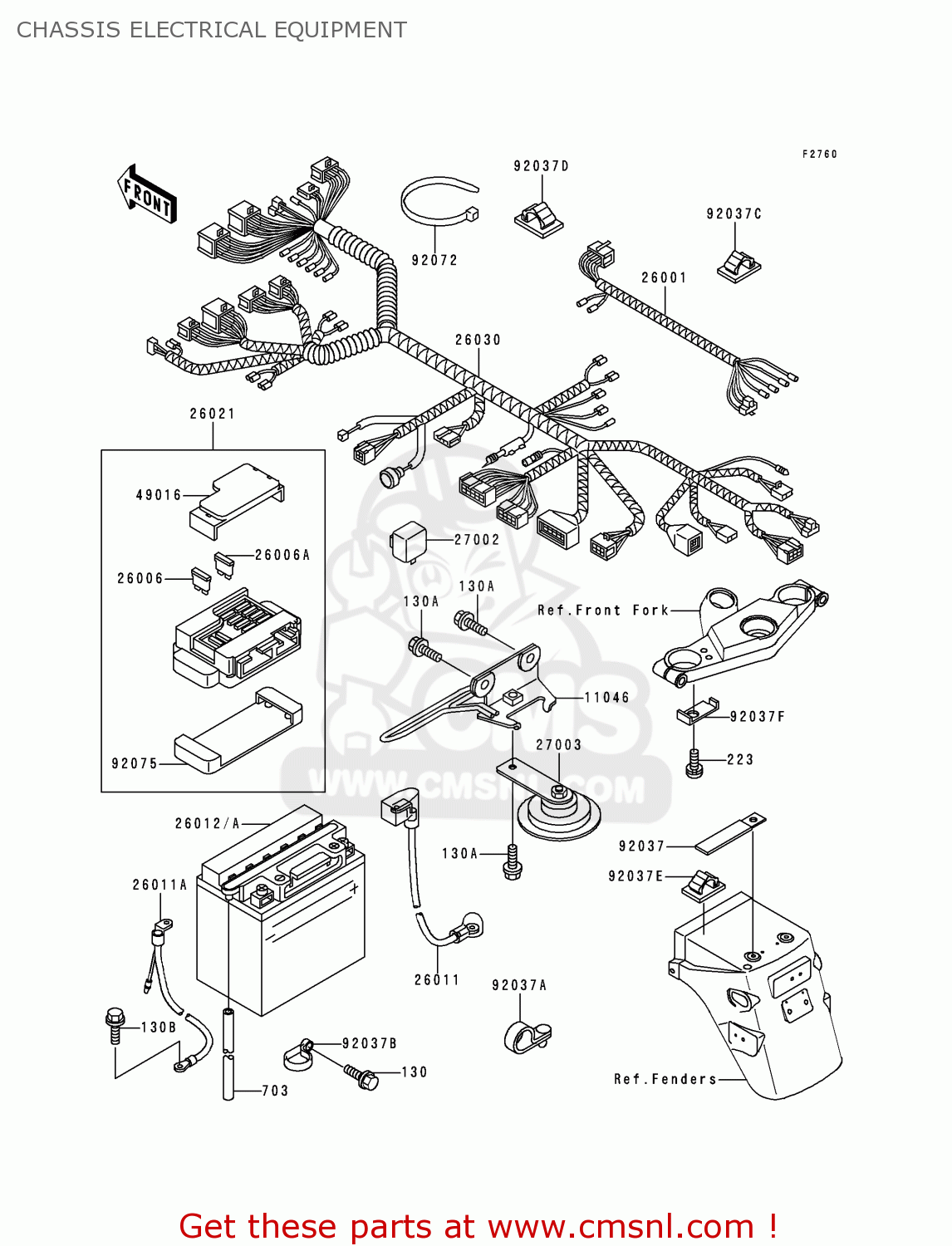

Chassis electrical equipment diagram EX500D4 NINJA 500 1997 USA CALIFORNIA CANADA

CHASSIS ELECTRICAL EQUIPMENT EX500D4 NINJA 500 1997 USA CALIFORNIA CANADA
CHASSIS ELECTRICAL EQUIPMENT EX500D4 NINJA 500 1997 USA CALIFORNIA CANADA
CHASSIS ELECTRICAL EQUIPMENT EX500D4 NINJA 500 1997 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130B0610
ref: 130
BOLT,FLANGED,6X10
130B0610
€ 0.50
130A
130C0612
ref: 130A
BOLT-FLANGED,6X12
130C0612
€ 1.50
130B
130V0610
ref: 130B
BOLT-FLANGED,6X10
130V0610
€ 0.50
223
223C0610
ref: 223
SCREW-PAN-WS-CROS
223C0610
€ 2.50
703
703A08530
ref: 703
TUBE-RUBBER,8X12X530
€ 13.50
11046
110461233
ref: 11046
BRACKET,HORN&CABLE
110461233
€ 15.00
26001
260011859
ref: 26001
HARNESS,FRONT SIGNAL
260011859
€ 27.50
26006
260061067
ref: 26006
FUSE, 30A-G
€ 3.00
26006A
260061068
ref: 26006A
FUSE, 10A-R
€ 3.00
26011
260111388
ref: 26011
WIRE-LEAD,BATTERY(+)
€ 26.50
26011A
260111389
ref: 26011A
WIRE-LEAD,BATTERY(-)
260111389
€ 26.50
26012
260121219
ref: 26012
BATTERY,12V 14AH,FB14
€ 61.50
26021
260211089
ref: 26021
JUNCTION BOX
260211089
€ 126.00
26030
260301290
ref: 26030
HARNESS,MAIN
€ 184.00
27002
270021060
ref: 27002
RELAY-ASSY,TURN SIGNA
270021060
€ 65.50
27003
270031288
ref: 27003
HORN
270031288
€ 62.00
49016
490161177
ref: 49016
COVER-SEAL,FUSE
490161177
€ 7.00
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92037A
920371163
ref: 92037A
CLAMP,HARNESS,REAR
920371163
€ 4.50
92037B
920371727
ref: 92037B
CLAMP,HOSE
920371727
€ 5.50
92037C
920371793
ref: 92037C
CLAMP,HARNESS
€ 4.00
92037D
920371794
ref: 92037D
CLAMP
920371794
€ 5.00
92037E
920371816
ref: 92037E
CLAMP,HARNESS
920371816
€ 5.00
92037F
920371916
ref: 92037F
CLAMP,HARNESS
920371916
€ 3.00
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92075
920751688
ref: 92075
DAMPER,FUSE & RELAY B
920751688
€ 9.50
