FRONT HUB
EX500C1 GPZ500S 1992 AUSTRIA

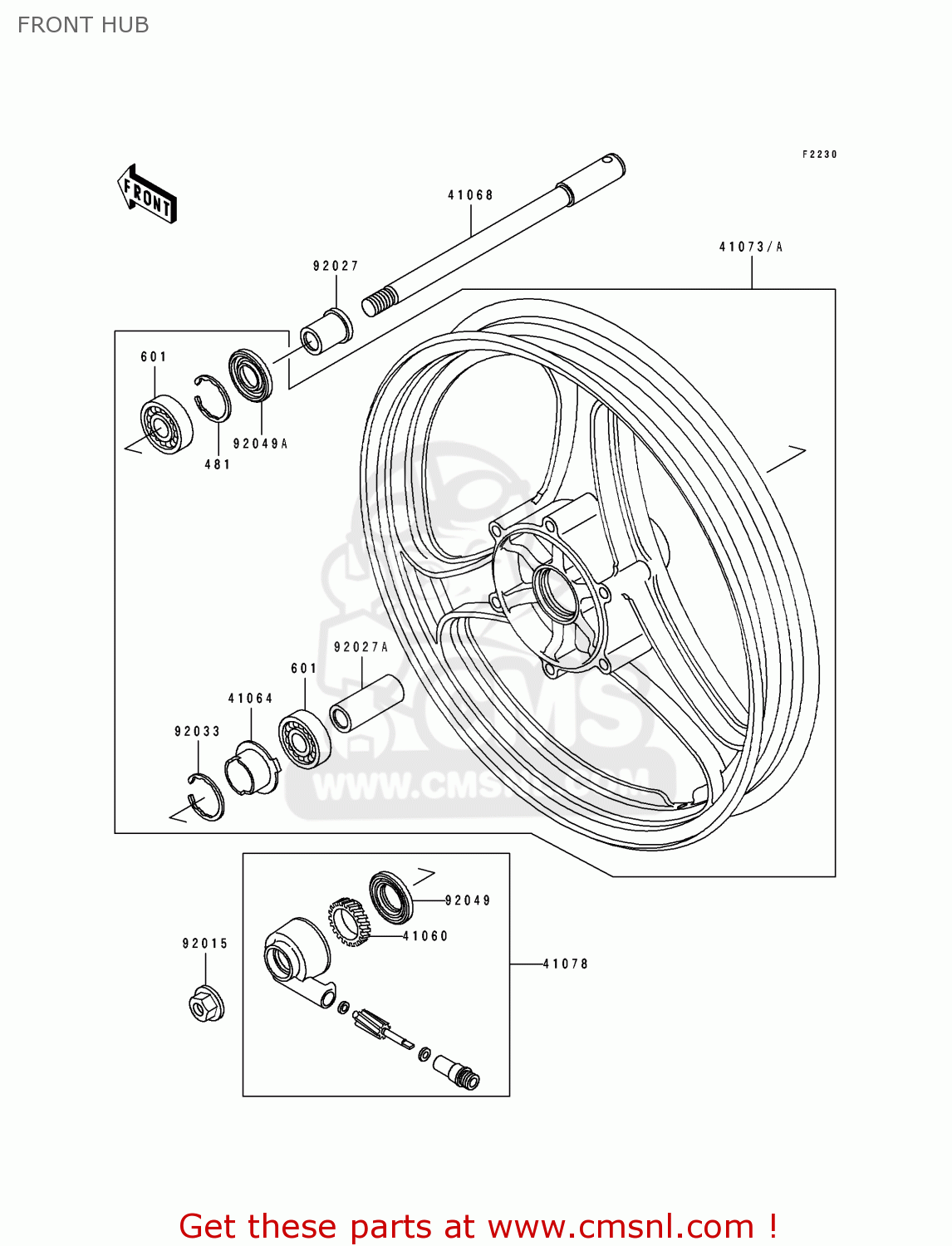

Front hub diagram EX500C1 GPZ500S 1992 AUSTRIA
FRONT HUB EX500C1 GPZ500S 1992 AUSTRIA
×
prices are in EUR
ref
part #
description
quantity
481
481J3500
ref: 481
CIRCLIP-TYPE-C,35MM
€ 1.00
601
601B6202UU
ref: 601
BEARING-BALL
€ 21.00
41060
410601107
ref: 41060
GEAR-METER SCREW,23T
€ 21.50
41064
410641006
ref: 41064
RECEIVER,SPEEDOMETER
€ 9.50
41068
410681238
ref: 41068
AXLE,FR
€ 49.00
41073
410731411GE
ref: 41073
WHEEL-ASSY,FR,G.GRAY
€ 475.50
41073A
410731411T6
ref: 41073A
WHEEL-ASSY,FR,WHITE N
€ 618.00
41078
410781055
ref: 41078
CASE-ASSY-METER GEAR
€ 102.50
92015
920151407
ref: 92015
NUT,14MM
€ 6.50
92027
920271118
ref: 92027
COLLAR,L=34
€ 10.00
92027A
920271980
ref: 92027A
COLLAR,15.2X22X60
€ 9.50
92033
920331041
ref: 92033
CIRCLIP,42MM
€ 4.00
92049
920491057
ref: 92049
OIL SEAL,BJN30427-C3
€ 7.50
92049A
920491348
ref: 92049A
SEAL-OIL
€ 7.50
