ELECTRICAL EQUIPMENT

EX500C1 GPZ500S 1992 AUSTRIA

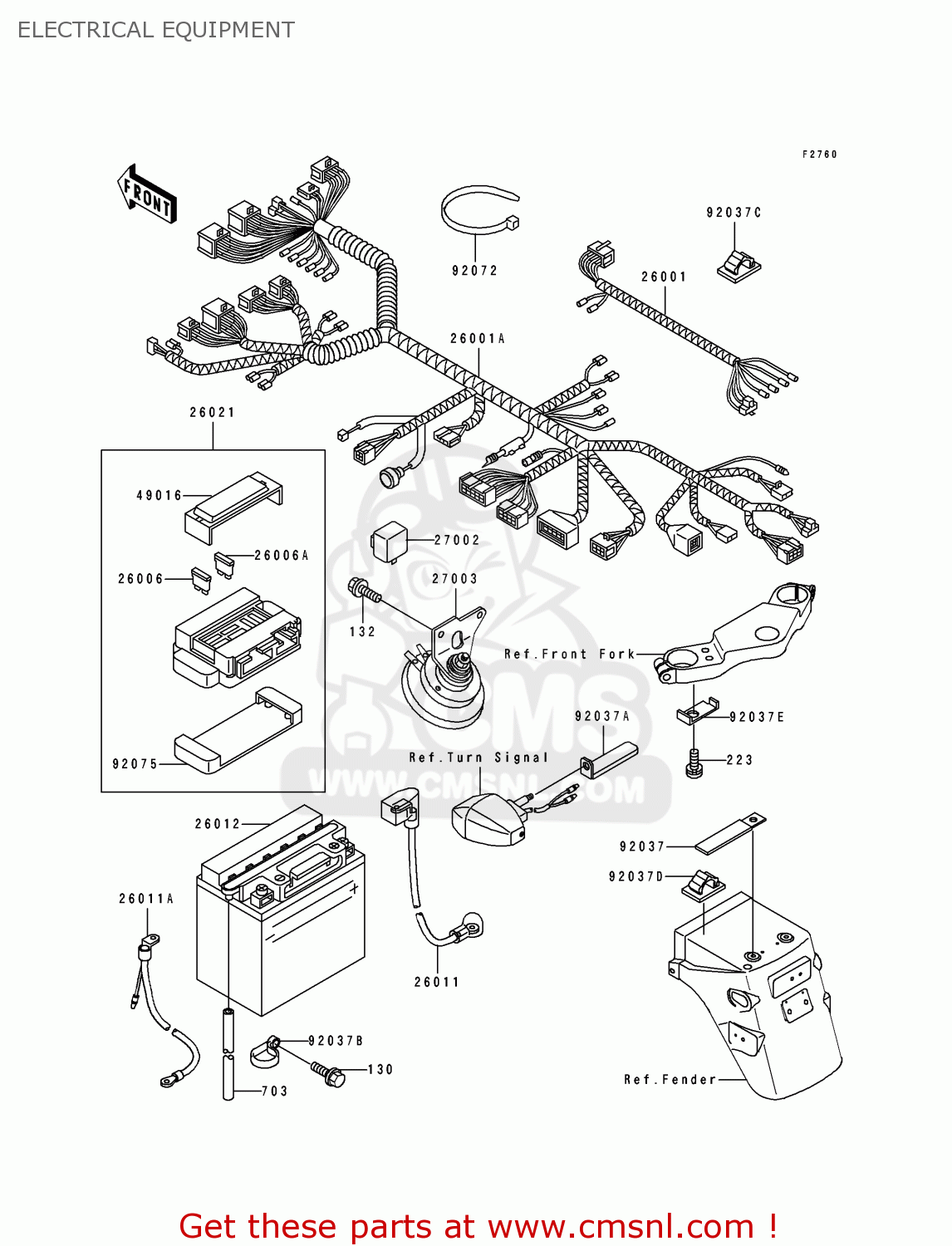

Electrical equipment diagram EX500C1 GPZ500S 1992 AUSTRIA

ELECTRICAL EQUIPMENT EX500C1 GPZ500S 1992 AUSTRIA
ELECTRICAL EQUIPMENT EX500C1 GPZ500S 1992 AUSTRIA
ELECTRICAL EQUIPMENT EX500C1 GPZ500S 1992 AUSTRIA
prices are in EUR
ref
part #
description
quantity
130
130B0610
ref: 130
BOLT,FLANGED,6X10
130B0610
€ 0.50
132
132J0610
ref: 132
BOLT-FLANGED-SMALL,6X
132J0610
€ 1.50
223
223B0610
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
703
703A08530
ref: 703
TUBE-RUBBER,8X12X530
€ 13.50
26001
260011859
ref: 26001
HARNESS,FRONT SIGNAL
260011859
€ 27.50
26001A
260011951
ref: 26001A
HARNESS,MAIN
260011951
€ 196.00
26006
260061067
ref: 26006
FUSE, 30A-G
€ 3.00
26006A
260061068
ref: 26006A
FUSE, 10A-R
€ 3.00
26011
260111388
ref: 26011
WIRE-LEAD,BATTERY(+)
€ 26.50
26011A
260111389
ref: 26011A
WIRE-LEAD,BATTERY(-)
260111389
€ 26.50
26012
260121219
ref: 26012
BATTERY,12V 14AH,FB14
€ 61.50
26021
260211081
ref: 26021
JUNCTION, BOX
€ 106.50
27002
270021053
ref: 27002
RELAY-ASSY,TURN SIGNA
270021053
€ 33.50
27003
270031274
ref: 27003
HORN
€ 45.00
49016
490161124
ref: 49016
COVER-SEAL,FUSE
490161124
€ 6.00
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92037A
920371316
ref: 92037A
CLAMP
€ 1.50
92037B
920371727
ref: 92037B
CLAMP,HOSE
920371727
€ 5.50
92037C
920371794
ref: 92037C
CLAMP
920371794
€ 5.00
92037D
920371816
ref: 92037D
CLAMP,HARNESS
920371816
€ 5.00
92037E
920371916
ref: 92037E
CLAMP,HARNESS
920371916
€ 3.00
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92075
920751688
ref: 92075
DAMPER,FUSE & RELAY B
920751688
€ 9.50
