FRONT CALIPER
EX500C1 GPZ500S 1992 AUSTRIA

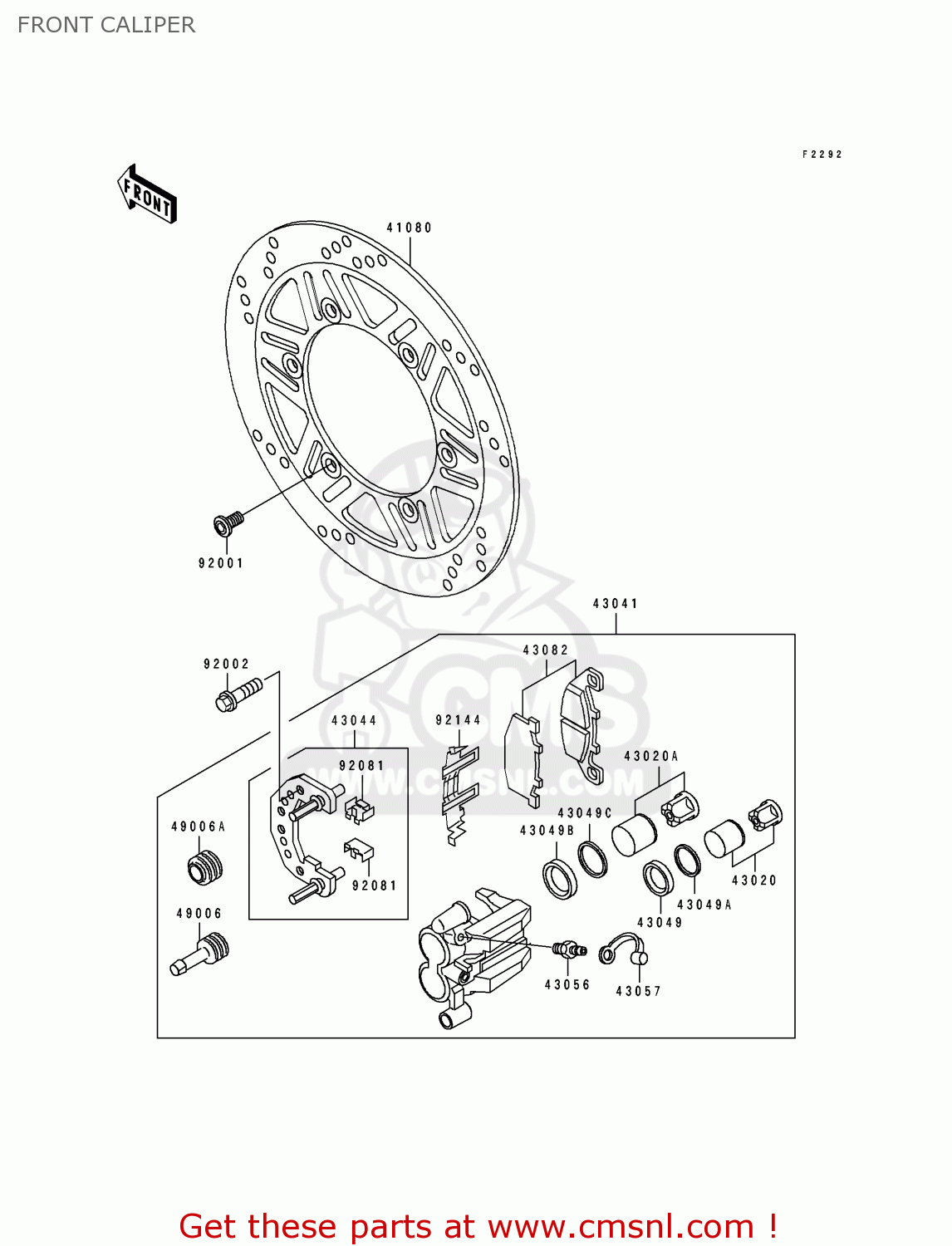

Front caliper diagram EX500C1 GPZ500S 1992 AUSTRIA
FRONT CALIPER EX500C1 GPZ500S 1992 AUSTRIA
×
prices are in EUR
ref
part #
description
quantity
41080
410801181
ref: 41080
DISC,FR
€ 310.50
43020
430201068
ref: 43020
PISTON-COMP-BRAKE
€ 49.00
43020A
430201069
ref: 43020A
PISTON-COMP-BRAKE
€ 49.00
43041
430411375DJ
ref: 43041
CALIPER-ASSY,FR,LH,BL
€ 449.50
43044
430441067
ref: 43044
HOLDER-COMP-CALIPER
€ 126.00
43049
430491054
ref: 43049
PACKING,PISTON SEAL (NAS)
€ 9.00
43049A
430491055
ref: 43049A
PACKING,PISTON (NAS)
€ 7.50
43049B
430491056
ref: 43049B
PACKING,PISTON SEAL (NAS)
€ 9.00
43049C
430491057
ref: 43049C
PACKING,PISTON (NAS)
€ 8.00
43056
430561054
ref: 43056
BREATHER-BRAKE
€ 16.50
43057
43057003
ref: 43057
CAP-BREATHER
€ 3.00
43082
430821074
ref: 43082
PAD-ASSY-BRAKE (NAS)
€ 42.50
49006
490061094
ref: 49006
BOOT,CALIPER
€ 8.00
49006A
490061095
ref: 49006A
BOOT,CALIPER
€ 4.50
92001
920011951
ref: 92001
BOLT,SOCKET,8X30
€ 3.00
92002
920021468
ref: 92002
BOLT,FLANGED,10X41
€ 6.00
92081
920811661
ref: 92081
SPRING,PAD STOPPER
€ 7.50
92144
921441070
ref: 92144
SPRING,PAD
€ 18.50
