FRAME

EX500C1 GPZ500S 1992 AUSTRIA

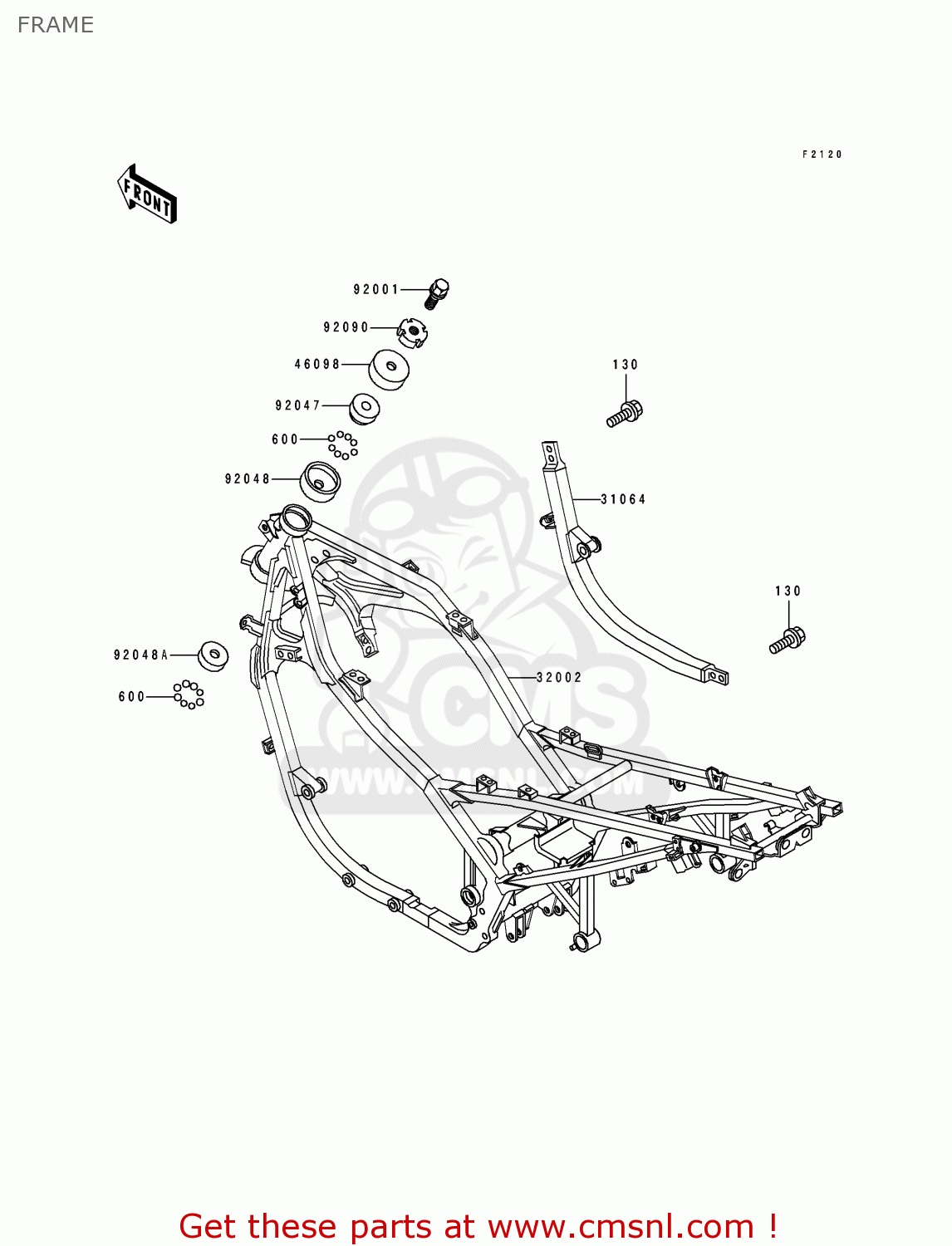

Frame diagram EX500C1 GPZ500S 1992 AUSTRIA

prices are in EUR

ref

part #

description

quantity

130

130G1020
ref: 130

BOLT-FLANGED,10X20

€ 1.50

600

600A0800
ref: 600

BALL-STEEL,1/4

€ 0.50

31064

310641082
ref: 31064

PIPE-COMP,FRAME,RH

€ 114.50

32002

320021924
ref: 32002

FRAME-COMP

€ 1,002.50

46098

46098016
ref: 46098

CAP,STEERING STEM

€ 4.00

92001

920011488
ref: 92001

BOLT,FLANGED,16X22

€ 13.50

92047

92047011
ref: 92047

CONE-STRNG STM BRNG

€ 14.50

92048

92048006
ref: 92048

RACE-STRNG BEARIN-STE

€ 11.50

92048A

92048008
ref: 92048A

RACE-STRNG STM BRNG

€ 16.00

92090

92090007
ref: 92090

NUT-STEERING STEM LCK

€ 8.00
