TAIL LAMP
EX500B3 1990 EUROPE FR GR IT NR SP

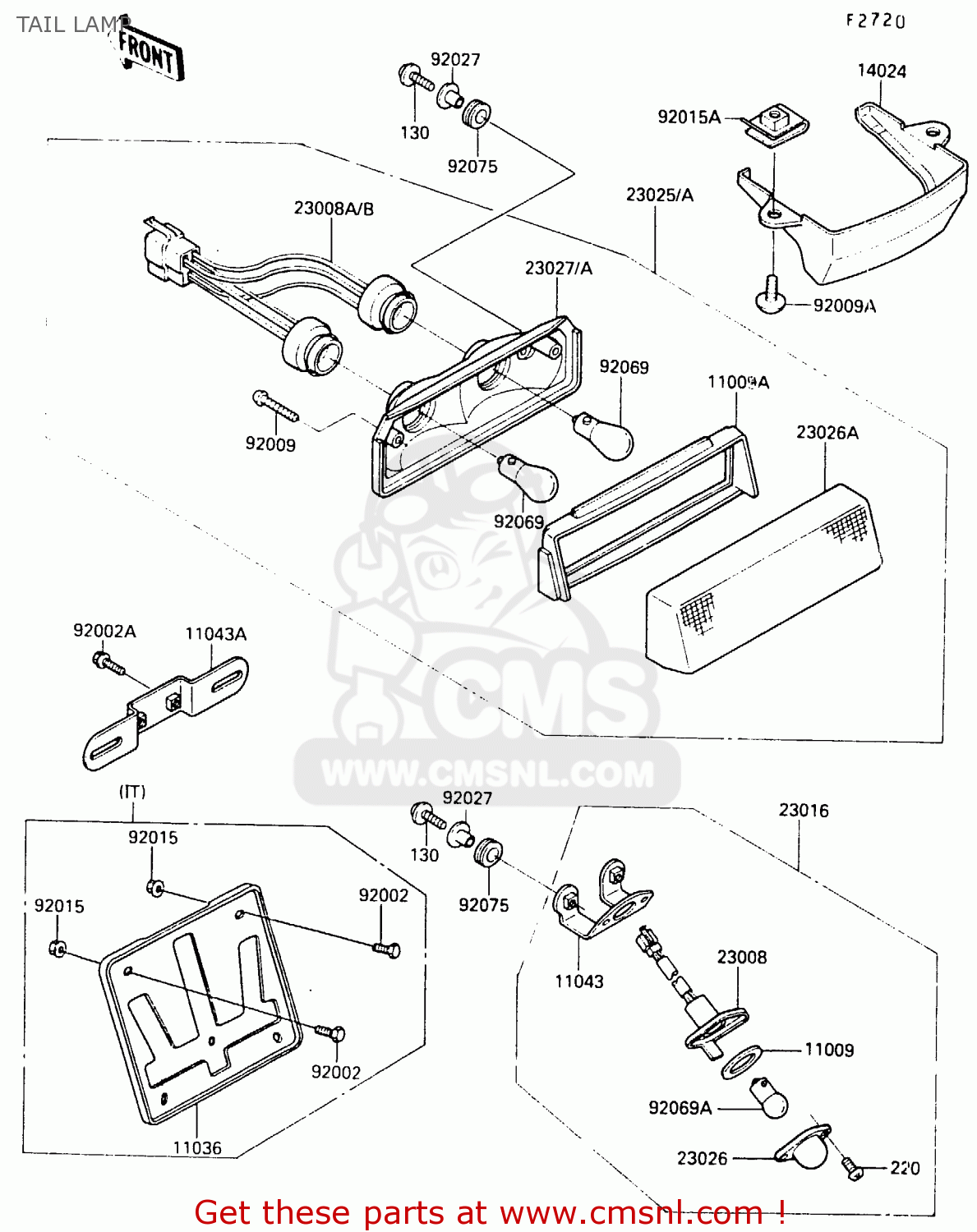

Tail lamp diagram EX500B3 1990 EUROPE FR GR IT NR SP
TAIL LAMP EX500B3 1990 EUROPE FR GR IT NR SP
×
prices are in EUR
ref
part #
description
quantity
11009
110091372
ref: 11009
GASKET,LICENSE PLATE (NAS)
€ 3.00
11009A
110091404
ref: 11009A
GASKET,TAIL LAMP (NAS)
€ 13.00
11036
110361820
ref: 11036
IT
BRACKET-A,LICENSE PLA
€ 13.50
11043
110431497
ref: 11043
BRACKET,LICENSE PLATE
€ 10.00
11043A
110431499
ref: 11043A
BRACKET,REFLECTOR
€ 12.00
14024
140241386
ref: 14024
COVER,LICENSE LAMP
€ 11.50
23008
230081221
ref: 23008
SOCKET-ASSY,LICENSE P
€ 7.50
23008A
230081225
ref: 23008A
EU, FR, GR, IT, NR,
SOCKET-ASSY,TAIL LAMP
€ 29.50
23008B
230081238
ref: 23008B
ST, WG
SOCKET-ASSY,TAIL LAMP
€ 22.50
23016
230161054
ref: 23016
LAMP-ASSY,LICENSE PLA
€ 54.50
23025
230251106
ref: 23025
EU, FR, GR, IT, NR,
LAMP-TAIL
€ 192.50
23025A
230251107
ref: 23025A
ST, WG
LAMP-TAIL
€ 192.50
23026
230261054
ref: 23026
LENS,LICENSE PLATE LA
€ 7.00
23026A
230261056
ref: 23026A
LENS,TAIL LAMP
€ 22.50
23027
230271055
ref: 23027
ST, WG
BODY-COMP-TAIL LAMP
€ 29.00
23027A
230271056
ref: 23027A
BODY-COMP-TAIL LAMP
€ 48.00
23027A
230271056
ref: 23027A
EU, FR, GR, IT, NR
BODY-COMP-TAIL LAMP
€ 48.00
23027A
230271056
ref: 23027A
EU, FR, GR, IT, NR,
BODY-COMP-TAIL LAMP
€ 48.00
92002
920021132
ref: 92002
IT
BOLT,6X12
€ 2.50
92002A
920021351
ref: 92002A
BOLT
€ 2.50
92009
920091056
ref: 92009
SCREW,TAPPING
€ 2.50
92009A
920091383
ref: 92009A
SCREW,5X14
€ 2.50
92015
920151193
ref: 92015
IT
NUT,FLANGED,6MM
€ 0.50
92015A
920151710
ref: 92015A
NUT
€ 4.00
92027
92027251
ref: 92027
COLLAR,L=13.1
€ 1.00
92069
92069063
ref: 92069
BULB 12V 21/5W
€ 4.50
92069A
920691055
ref: 92069A
BULB,12V 5W
€ 4.00
92075
920751690
ref: 92075
DAMPER,10X24X12
€ 3.00
130
130H0625
ref: 130
BOLT-FLANGED,6X25
€ 0.50
220
220B0410
ref: 220
SCREW-PAN-CROS
€ 2.00
