ENGINE COVER
EX500B3 1990 EUROPE FR GR IT NR SP

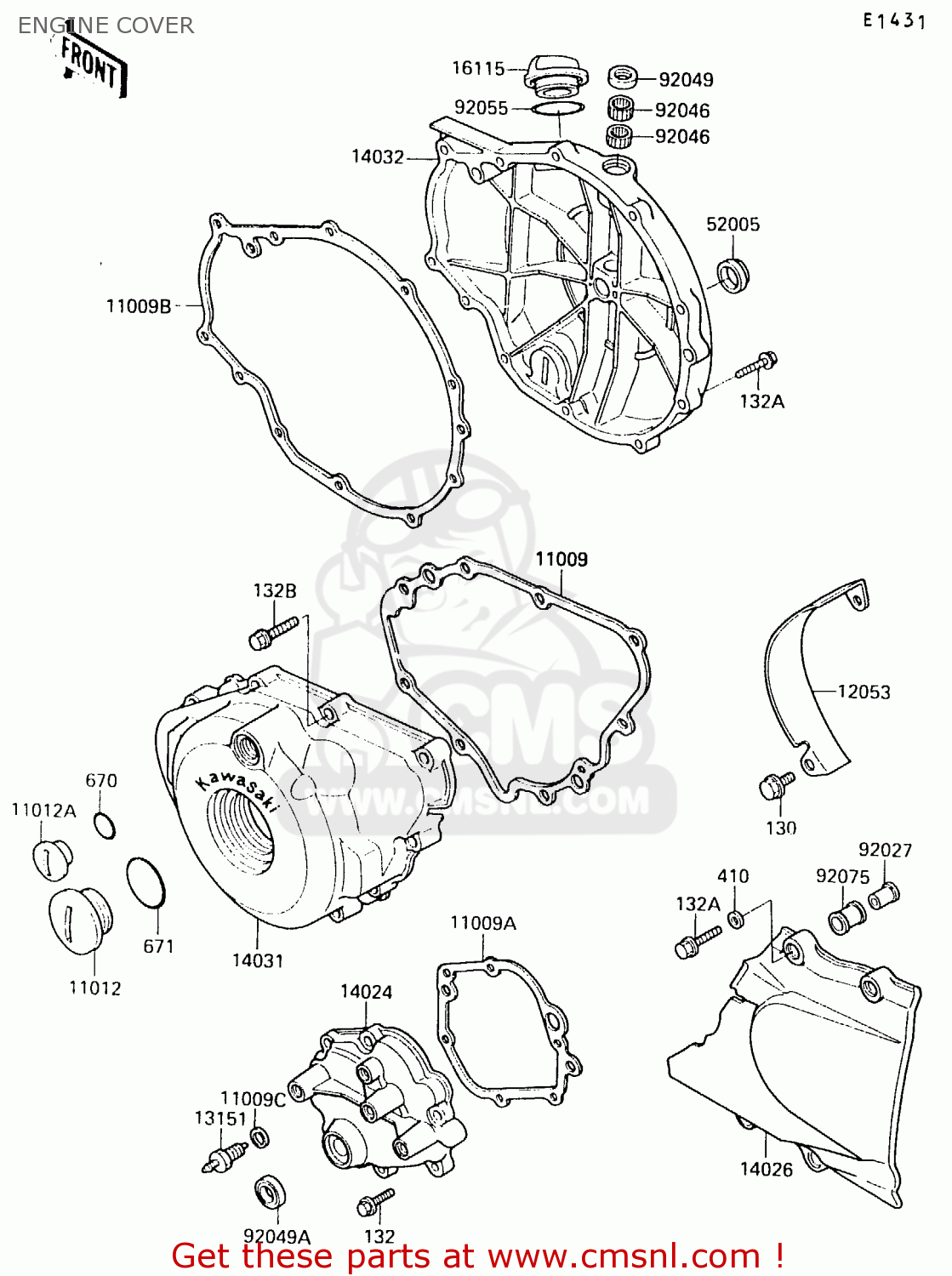

Engine cover diagram EX500B3 1990 EUROPE FR GR IT NR SP
ENGINE COVER EX500B3 1990 EUROPE FR GR IT NR SP
×
prices are in EUR
ref
part #
description
quantity
11009
110091834
ref: 11009
GASKET,GEN. COVER (NAS)
€ 17.00
11009A
110091835
ref: 11009A
GASKET,CHANGE MECHANI (NAS)
€ 5.50
11009B
110091836
ref: 11009B
GASKET, CLUTCH COVER (NAS)
€ 22.00
11009C
92065058
ref: 11009C
GASKET, 10,5X16X1 (NAS)
€ 2.50
11012
110121362
ref: 11012
CAP
€ 6.00
11012A
110121363
ref: 11012A
CAP,TOP MARK
€ 4.00
12053
120531215
ref: 12053
GUIDE-CHAIN
€ 10.00
13151
131511007
ref: 13151
SWITCH,NEUTRAL
€ 9.00
14024
140241387
ref: 14024
COVER,CHANGE MECHANIS
€ 78.50
14026
140261128
ref: 14026
COVER-CHAIN
€ 50.50
14031
140311202
ref: 14031
COVER-GENERATOR
€ 183.50
14032
140321231
ref: 14032
COVER-CLUTCH
€ 207.50
16115
161151009
ref: 16115
CAP-OIL FILLER
€ 10.00
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
€ 12.00
92027
920271858
ref: 92027
COLLAR
€ 3.50
92046
920461010
ref: 92046
BEARING-NEEDLE,HK1210
€ 17.00
92049
920491271
ref: 92049
SEAL, OIL
€ 7.00
92049A
92051005A
ref: 92049A
OIL SEAL,TB13225.5
€ 5.50
92055
92055049
ref: 92055
'0'RING,31MM
€ 2.50
92075
920751681
ref: 92075
DAMPER
€ 3.50
130
130G0612
ref: 130
BOLT,FLANGE,6X12
€ 0.50
132
132J0620
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
132A
132J0625
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
132B
132J0630
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
410
410F0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
670
670B2018
ref: 670
O RING,18MM
€ 1.00
671
671B2540
ref: 671
O RING,40MM
€ 4.00
