FRONT HUB
EX500B3 1990 EUROPE FR GR IT NR SP

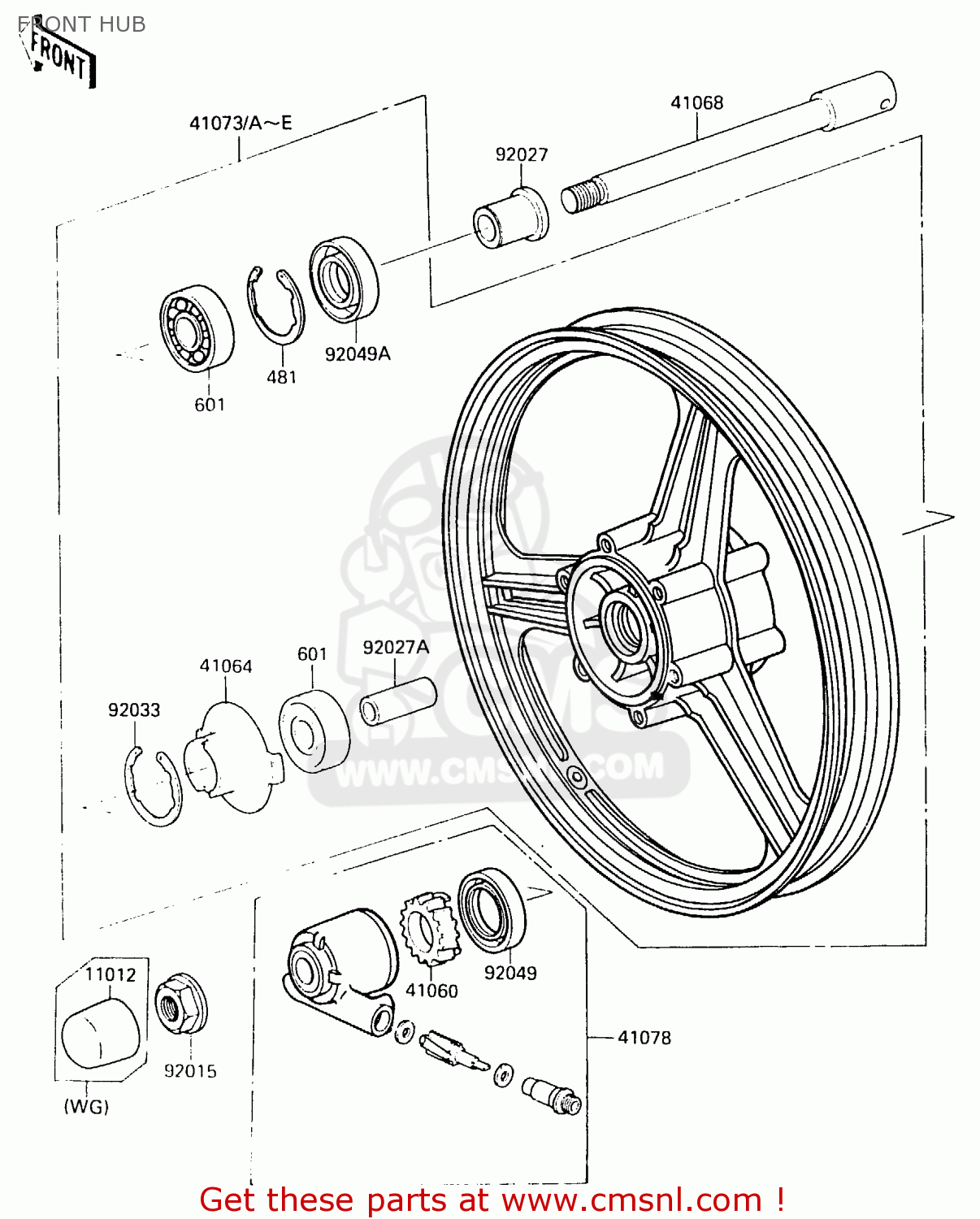

Front hub diagram EX500B3 1990 EUROPE FR GR IT NR SP
FRONT HUB EX500B3 1990 EUROPE FR GR IT NR SP
×
prices are in EUR
ref
part #
description
quantity
11012
110121591
ref: 11012
WG
CAP,AXLE NUT
€ 3.00
41060
410601107
ref: 41060
GEAR-METER SCREW,23T
€ 21.50
41064
410641006
ref: 41064
RECEIVER,SPEEDOMETER
€ 9.50
41068
410681009
ref: 41068
AXLE,FR,L=204
€ 44.50
41073C
410731412T6
ref: 41073C
WHEEL-ASSY,FR,WHITE N
€ 577.50
41073D
410731412V5
ref: 41073D
FR
WHEEL-ASSY,FR,SILVER
€ 618.00
41078
410781055
ref: 41078
CASE-ASSY-METER GEAR
€ 102.50
92015
920151407
ref: 92015
NUT,14MM
€ 6.50
92027
920271118
ref: 92027
COLLAR,L=34
€ 10.00
92027A
920271505
ref: 92027A
COLLAR,15.2X22X55
€ 8.50
92033
920331041
ref: 92033
CIRCLIP,42MM
€ 4.00
92049
920491057
ref: 92049
OIL SEAL,BJN30427-C3
€ 7.50
92049A
920491348
ref: 92049A
SEAL-OIL
€ 7.50
481
481J3500
ref: 481
CIRCLIP-TYPE-C,35MM
€ 1.00
601
601B6202UG
ref: 601
BEARING BALL
€ 19.50
