FRAME FITTING

EX500B3 1990 EUROPE FR GR IT NR SP

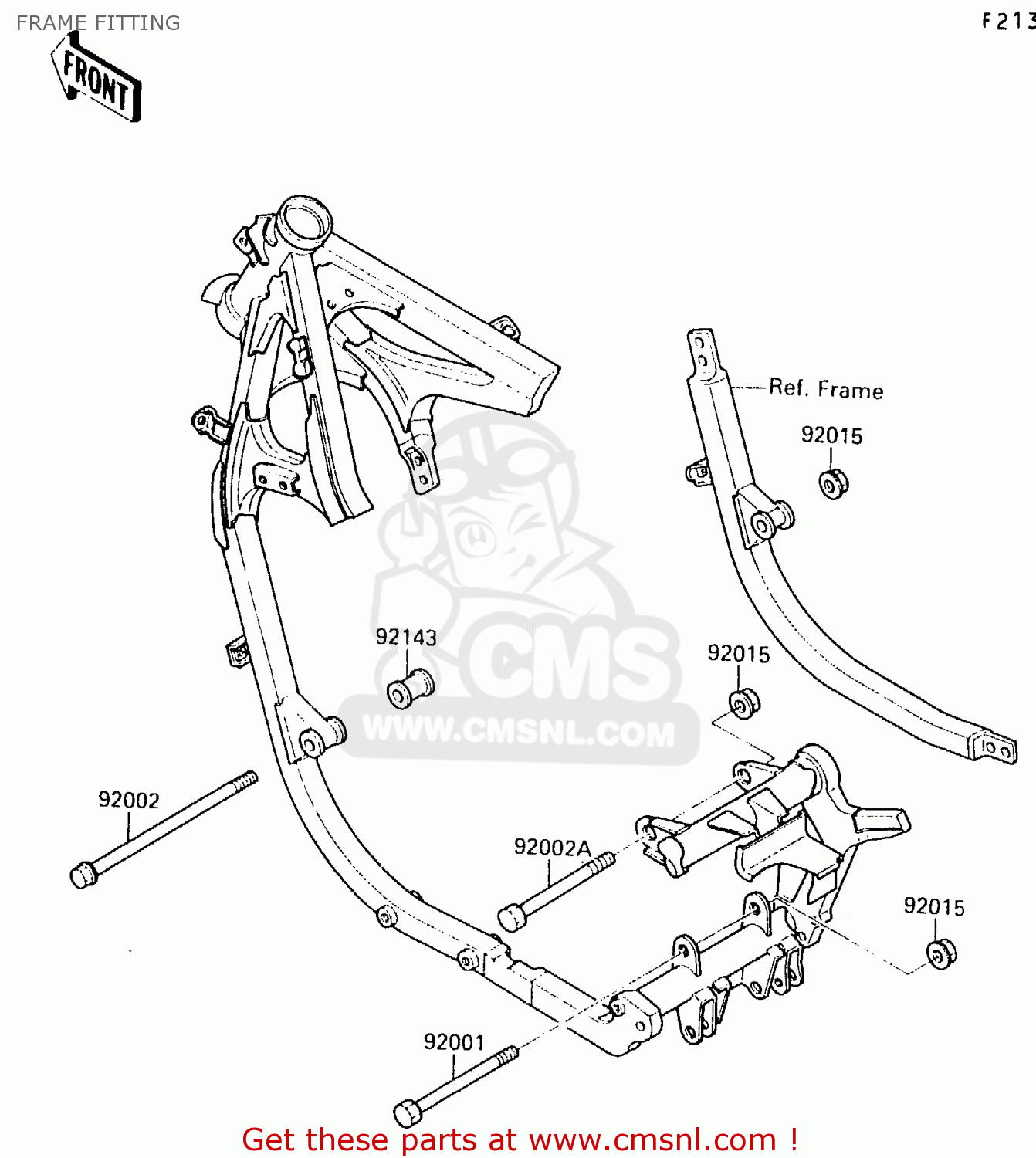

Frame fitting diagram EX500B3 1990 EUROPE FR GR IT NR SP

FRAME FITTING EX500B3 1990 EUROPE FR GR IT NR SP
FRAME FITTING EX500B3 1990 EUROPE FR GR IT NR SP
FRAME FITTING EX500B3 1990 EUROPE FR GR IT NR SP
prices are in EUR
ref
part #
description
quantity
92001
920011109
ref: 92001
BOLT,10X179
€ 15.00
92002
920021891
ref: 92002
BOLT,FLANGED,10X295
920021891
€ 11.00
92002A
920021920
ref: 92002A
BOLT,10X165
920021920
€ 7.50
92015
920151428
ref: 92015
NUT,FLANGED,10MM
920151428
€ 3.00
92143
921431073
ref: 92143
COLLAR,L=34
921431073
€ 8.50
