IGNITION SWITCH
EX500B3 1990 EUROPE FR GR IT NR SP

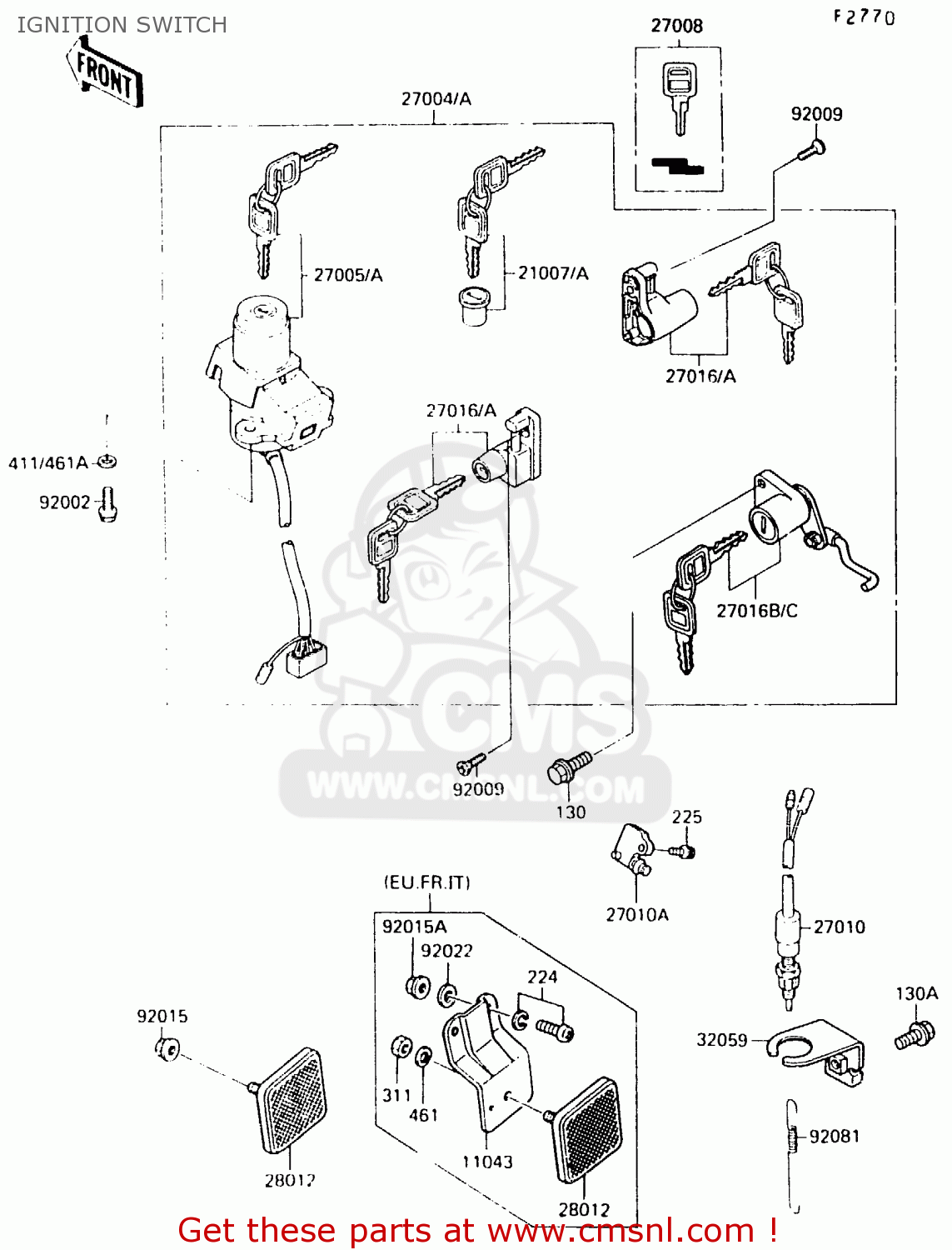

Ignition switch diagram EX500B3 1990 EUROPE FR GR IT NR SP
IGNITION SWITCH EX500B3 1990 EUROPE FR GR IT NR SP
×
prices are in EUR
ref
part #
description
quantity
11043
110431078
ref: 11043
EU, FR, IT, SP
BRACKET-B,REFLECTOR
€ 13.50
21007
210075012
ref: 21007
EU, FR, GR, IT, SP,
ROTOR,LOCK,TANK CAP
€ 65.50
21007A
210075013
ref: 21007A
NR, WG
ROTOR,LOCK,TANK CAP
€ 65.50
27004
270045301
ref: 27004
NR, WG
SWITCH-ASSY
€ 281.00
27004A
270045328
ref: 27004A
EU, FR, GR, IT, SP,
SWITCH-ASSY
€ 257.00
27005
270055071
ref: 27005
NR, WG
SWITCH-ASSY-IGNITION
€ 143.00
27005A
270055075
ref: 27005A
EU, FR, GR, IT, SP,
SWITCH-ASSY-IGNITION
€ 150.00
27008
270081103
ref: 27008
(OPTION)
KEY-LOCK,BLANK
€ 13.50
27010
270101019
ref: 27010
SWITCH,REAR BRAKE
€ 23.00
27010A
270101185
ref: 27010A
SWITCH,BRAKE/SIDE STA
€ 25.50
27016
270165091
ref: 27016
EU, FR, GR, IT, SP,
LOCK-ASSY,HELMET
€ 24.00
27016A
270165092
ref: 27016A
NR, WG
LOCK-ASSY,HELMET
€ 24.00
27016B
270165123
ref: 27016B
EU, FR, GR, IT, SP,
LOCK-ASSY,SEAT
€ 24.00
27016C
270165124
ref: 27016C
NR, WG
LOCK-ASSY,SEAT
€ 24.00
28012
280121054
ref: 28012
REFLECTOR-REFLEX,RR
€ 15.00
32059
320591081
ref: 32059
BRACKET-SWITCH,REAR B
€ 5.50
92002
920021333
ref: 92002
BOLT
€ 1.50
92009
920091305
ref: 92009
SCREW,5X16
€ 2.50
92015
920151259
ref: 92015
GR, NR, ST, WG
NUT,FLANGED,5MM
€ 2.50
92015A
920151367
ref: 92015A
EU, FR, IT, SP
NUT,FLANGED,6MM
€ 0.50
92022
920221557
ref: 92022
EU, FR, IT, SP
WASHER,6.5X20X1.6
€ 1.00
92081
27011006
ref: 92081
SPRING-BRAKE LAMP SW
€ 3.50
130
130B0510
ref: 130
BOLT-FLANGED
€ 1.50
130A
130B0614
ref: 130A
BOLT-FLANGED
€ 0.50
224
224C0614
ref: 224
EU, FR, IT, SP
SCREW-PAN-WP-CROS
€ 2.50
225
225C0416
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
311
311B0500
ref: 311
EU, FR, IT, SP
NUT-HEX
€ 0.50
411
411E0600
ref: 411
EU, FR, GR, IT, SP,
W-PLAIN-S
€ 0.50
461
461F0500
ref: 461
EU, FR, IT, SP
WASHER-SPRING,5MM
€ 0.50
461A
461L0600
ref: 461A
NR, WG
WASHER-SPRING
€ 0.50
