TIRE

EX500A5 GPZ500S 1991 UNITED KINGDOM AR SD

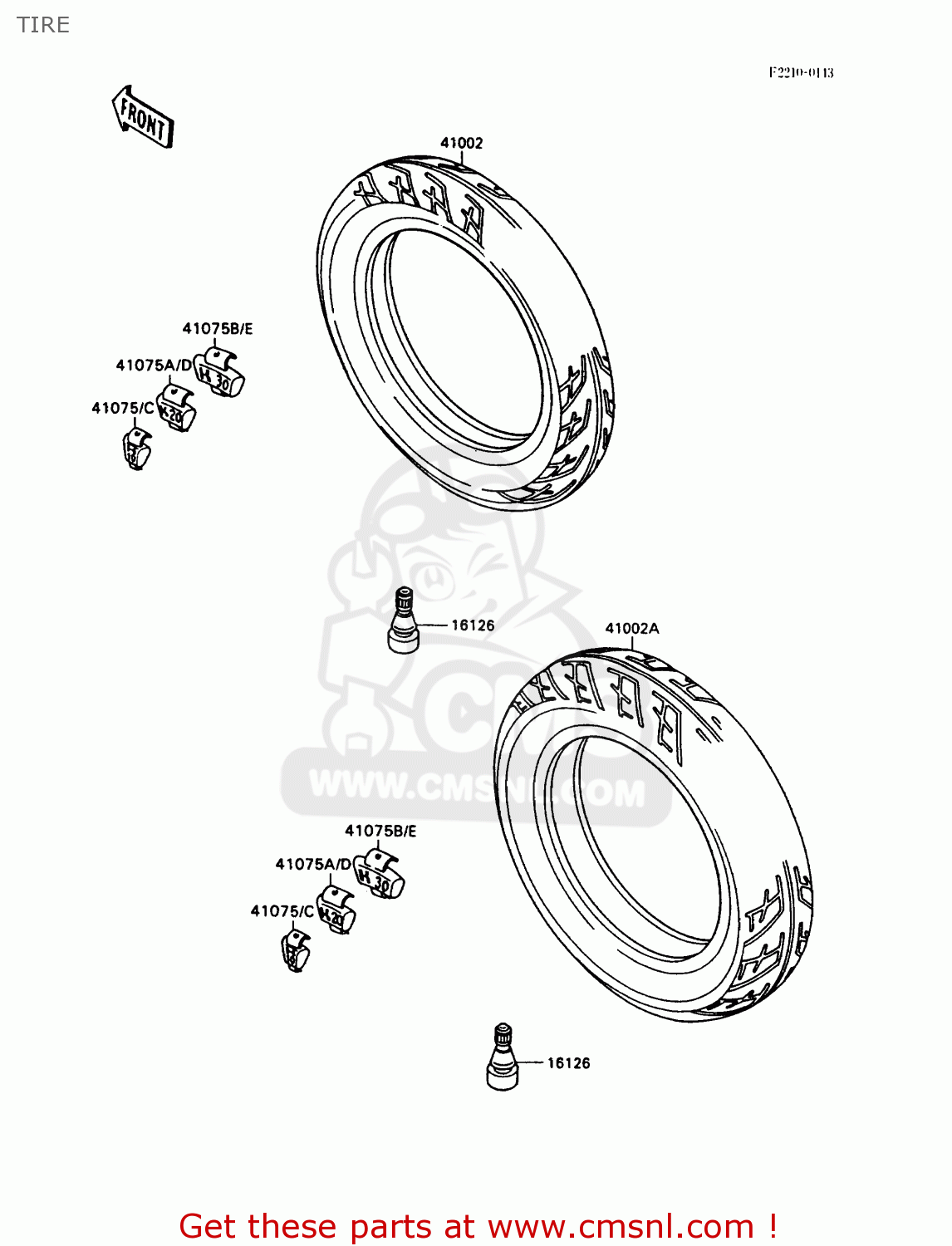

Tire diagram EX500A5 GPZ500S 1991 UNITED KINGDOM AR SD

prices are in EUR

ref

part #

description

quantity

16126

161261140
ref: 16126

VALVE,TIRE

€ 20.50

41002

410021618
ref: 41002

TIRE,FR,100/90-16 54H

€ 164.00

41002A

410021619
ref: 41002A

TIRE,RR,120/90-16 63H

€ 206.50

41075

410751014
ref: 41075

BALANCER-WHEEL,10G,SI

€ 7.50

41075A

410751015
ref: 41075A

BALANCER-WHEEL,20G,SI

€ 7.50

41075B

410751016
ref: 41075B

BALANCER-WHEEL,30G,SI

€ 7.50

41075C

410751051
ref: 41075C

BALANCER-WHEEL,10G

€ 7.50

41075D

410751052
ref: 41075D

BALANCER-WHEEL,20G

€ 7.50

41075E

410751053
ref: 41075E

BALANCER-WHEEL,30G

€ 7.50
