CYLINDER HEAD COVER

EX500A5 GPZ500S 1991 UNITED KINGDOM AR SD

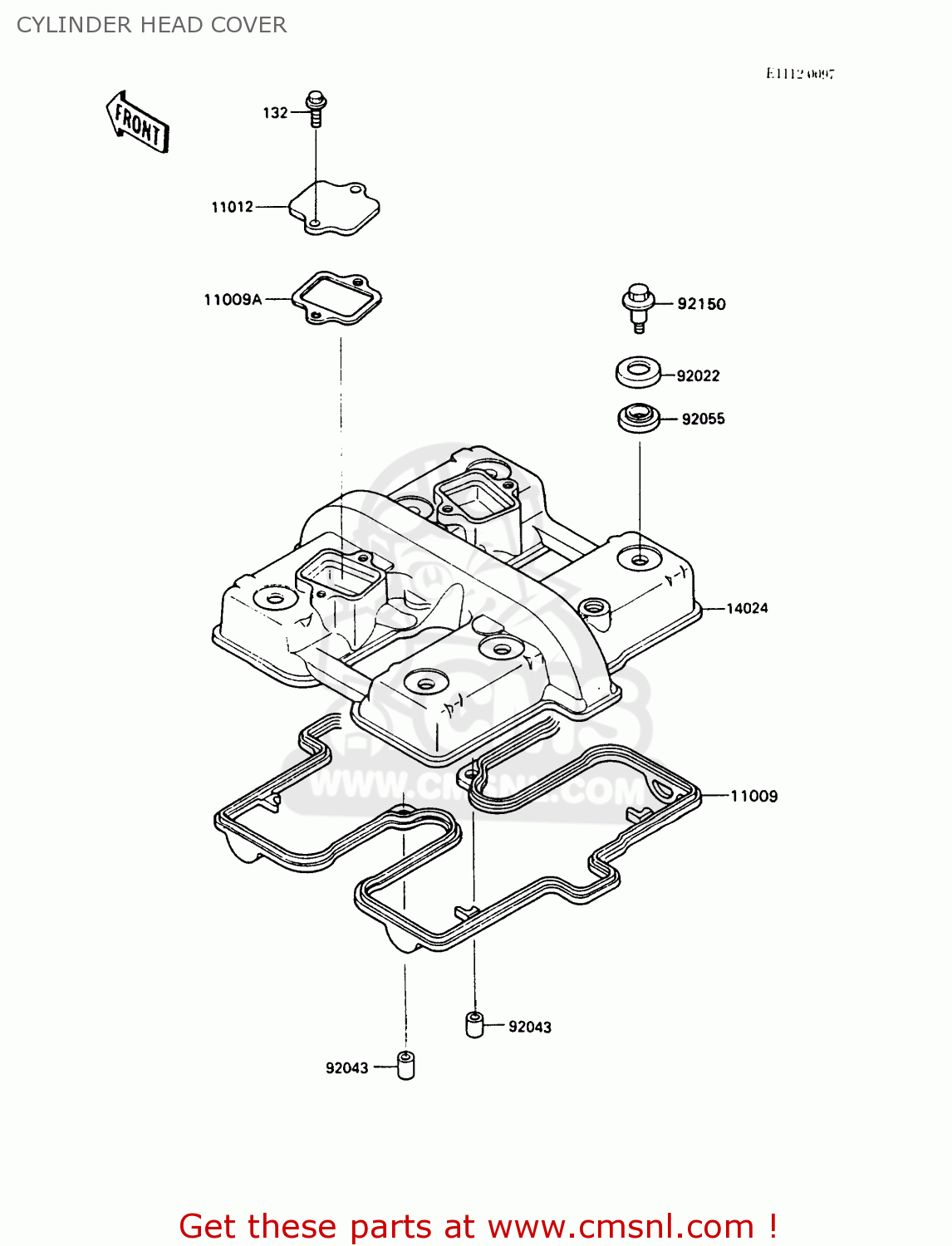

Cylinder head cover diagram EX500A5 GPZ500S 1991 UNITED KINGDOM AR SD

prices are in EUR

ref

part #

description

quantity

132

132J0616
ref: 132

BOLT-FLANGED-SMALL

€ 3.00

11009

110091483
ref: 11009

GASKET,CYLINDER HEAD (NAS)

€ 49.00

11009A

110091879
ref: 11009A

GASKET,REED VALVE (NAS)

€ 4.50

11012

110121212
ref: 11012

CAP,CYLINDER HEAD COV

€ 18.00

14024

140241397
ref: 14024

COVER,CYLINDER HEAD

€ 198.00

92022

920221487
ref: 92022

WASHER,HEAD COVER BOL

€ 3.50

92043

920431302
ref: 92043

PIN,DOWEL,8X10

€ 1.00

92055

920551225
ref: 92055

RING-O,HEAD COVER BOL

€ 4.50

92150

921501447
ref: 92150

BOLT

€ 3.00
