FRONT HUB

EX500A5 GPZ500S 1991 UNITED KINGDOM AR SD

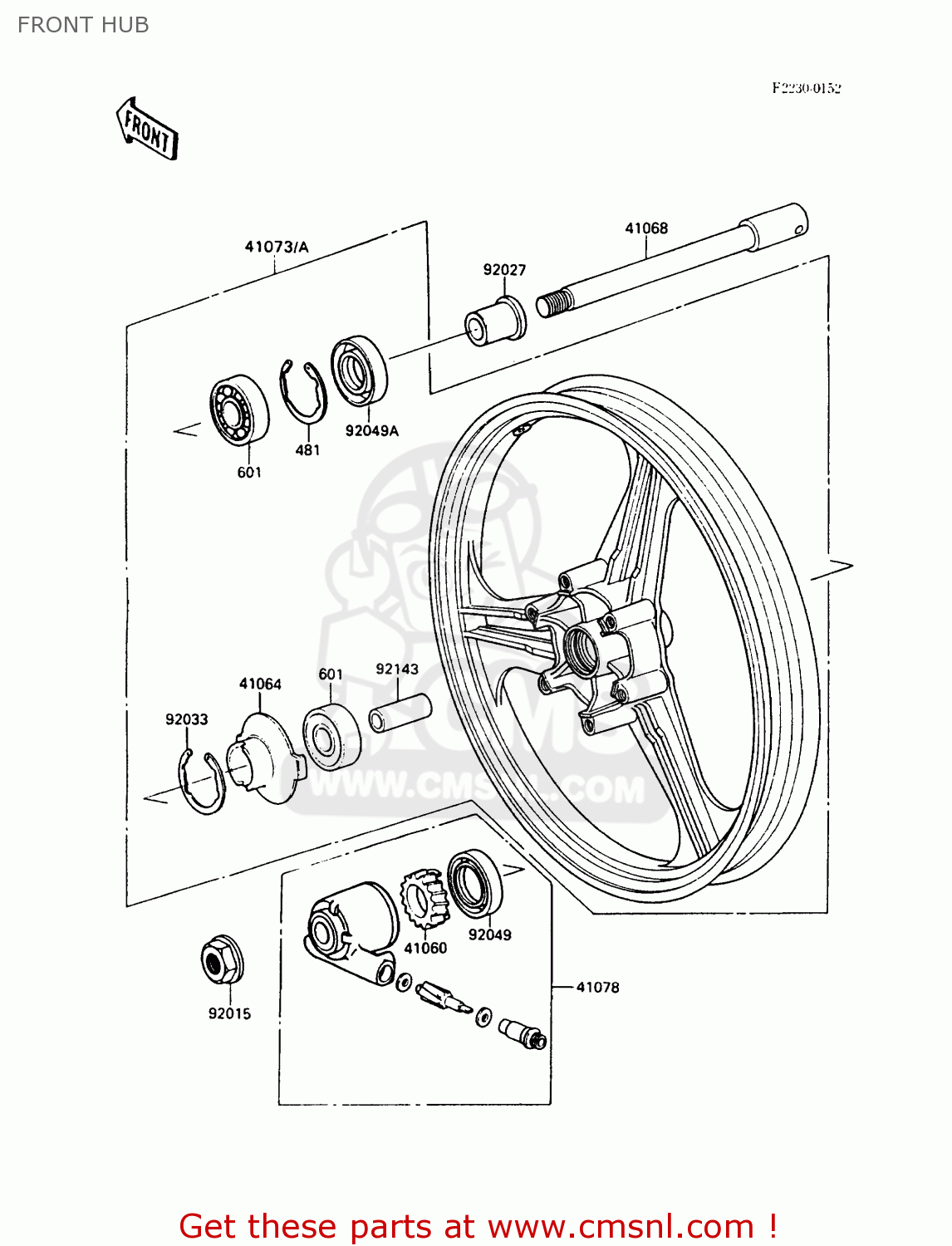

Front hub diagram EX500A5 GPZ500S 1991 UNITED KINGDOM AR SD

prices are in EUR

ref

part #

description

quantity

481

481J3500
ref: 481

CIRCLIP-TYPE-C,35MM

€ 1.00

601

601B6202UU
ref: 601

BEARING-BALL

€ 21.00

41060

410601107
ref: 41060

GEAR-METER SCREW,23T

€ 21.50

41064

410641006
ref: 41064

RECEIVER,SPEEDOMETER

€ 9.50

41068

410681238
ref: 41068

AXLE,FR

€ 49.00

41073

410731411GE
ref: 41073

WHEEL-ASSY,FR,G.GRAY

€ 475.50

41073A

410731411T6
ref: 41073A

WHEEL-ASSY,FR,WHITE N

€ 618.00

41078

410781055
ref: 41078

CASE-ASSY-METER GEAR

€ 102.50

92015

920151407
ref: 92015

NUT,14MM

€ 6.50

92027

920271118
ref: 92027

COLLAR,L=34

€ 10.00

92033

920331041
ref: 92033

CIRCLIP,42MM

€ 4.00

92049

920491057
ref: 92049

OIL SEAL,BJN30427-C3

€ 7.50

92049A

920491348
ref: 92049A

SEAL-OIL

€ 7.50

92143

920271980
ref: 92143

COLLAR,15.2X22X60

€ 9.50

FRONT HUB

all assemblies
