IGNITION SWITCH

EX500A5 GPZ500S 1991 UNITED KINGDOM AR SD

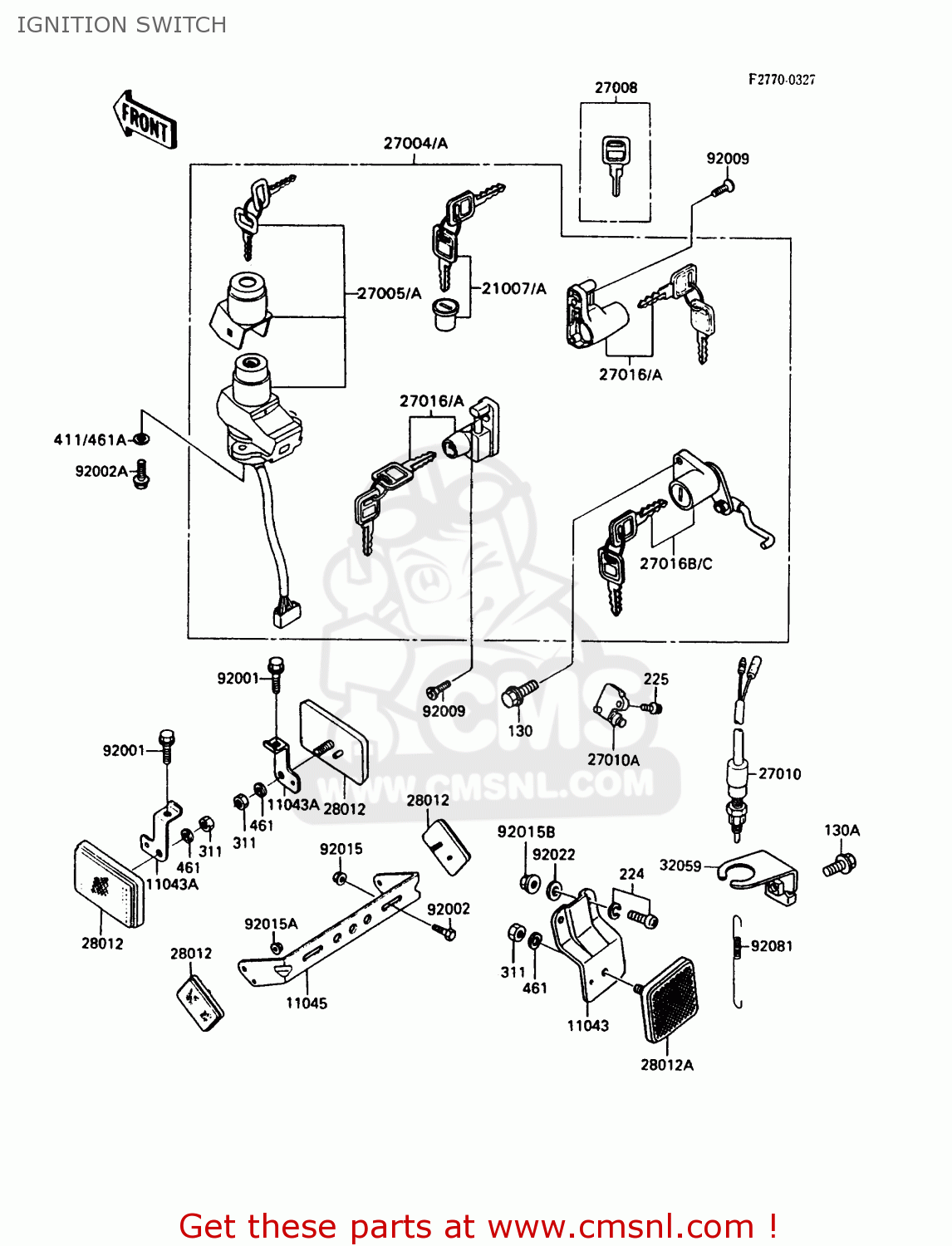

Ignition switch diagram EX500A5 GPZ500S 1991 UNITED KINGDOM AR SD

IGNITION SWITCH EX500A5 GPZ500S 1991 UNITED KINGDOM AR SD
IGNITION SWITCH EX500A5 GPZ500S 1991 UNITED KINGDOM AR SD
IGNITION SWITCH EX500A5 GPZ500S 1991 UNITED KINGDOM AR SD
prices are in EUR
ref
part #
description
quantity
11043
110431078
ref: 11043
ARUK
BRACKET-B,REFLECTOR
110431078
€ 13.50
11043A
110431423
ref: 11043A
AR
BRACKET,FR,REFLECTOR
€ 6.50
11045
110451621
ref: 11045
AR
BRACKET,REFLECTOR,RR
€ 14.00
21007
210075012
ref: 21007
ARUK
ROTOR,LOCK,TANK CAP
210075012
€ 65.50
21007A
210075013
ref: 21007A
SD
ROTOR,LOCK,TANK CAP
€ 65.50
27004
270045301
ref: 27004
SD
SWITCH-ASSY
€ 281.00
27004A
270045328
ref: 27004A
ARUK
SWITCH-ASSY
€ 257.00
27005
270055071
ref: 27005
SD
SWITCH-ASSY-IGNITION
270055071
€ 143.00
27005A
270055075
ref: 27005A
ARUK
SWITCH-ASSY-IGNITION
270055075
€ 150.00
27008
270081103
ref: 27008
KEY-LOCK,BLANK
270081103
€ 13.50
27010
270101019
ref: 27010
SWITCH,REAR BRAKE
270101019
€ 23.00
27010A
270101185
ref: 27010A
SWITCH,BRAKE/SIDE STA
270101185
€ 25.50
27016
270165091
ref: 27016
ARUK
LOCK-ASSY,HELMET
270165091
€ 24.00
27016A
270165092
ref: 27016A
SD
LOCK-ASSY,HELMET
270165092
€ 24.00
27016B
270165123
ref: 27016B
ARUK
LOCK-ASSY,SEAT
270165123
€ 24.00
27016C
270165124
ref: 27016C
SD
LOCK-ASSY,SEAT
€ 24.00
28012
280121003
ref: 28012
AR
REFLECTOR,REFLEX
280121003
€ 15.00
28012A
280121054
ref: 28012A
REFLECTOR-REFLEX,RR
280121054
€ 15.00
32059
320591081
ref: 32059
BRACKET-SWITCH,REAR B
320591081
€ 5.50
92001
920011847
ref: 92001
AR
BOLT,6X14,BLACK
920011847
€ 2.50
92002
920021132
ref: 92002
AR
BOLT,6X12
€ 2.50
92002A
920021333
ref: 92002A
BOLT
920021333
€ 1.50
92009
920091305
ref: 92009
SCREW,5X16
920091305
€ 2.50
92015
920151193
ref: 92015
AR
NUT,FLANGED,6MM
920151193
€ 0.50
92015A
920151259
ref: 92015A
AR
NUT,FLANGED,5MM
920151259
€ 2.50
92015A
920151259
ref: 92015A
SD
NUT,FLANGED,5MM
920151259
€ 2.50
130
130B0510
ref: 130
BOLT-FLANGED
130B0510
€ 1.50
130A
130B0614
ref: 130A
BOLT-FLANGED
130B0614
€ 0.50
224
224C0614
ref: 224
ARUK
SCREW-PAN-WP-CROS
224C0614
€ 2.50
225
225C0416
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
311
311B0500
ref: 311
UK
NUT-HEX
311B0500
€ 0.50
311
311B0500
ref: 311
AR
NUT-HEX
311B0500
€ 0.50
411
411E0600
ref: 411
ARUK
W-PLAIN-S
411E0600
€ 0.50
461
461F0500
ref: 461
UK
WASHER-SPRING,5MM
461F0500
€ 0.50
461
461F0500
ref: 461
AR
WASHER-SPRING,5MM
461F0500
€ 0.50
461A
461L0600
ref: 461A
SD
WASHER-SPRING
€ 0.50
92015B
920151367
ref: 92015B
ARUK
NUT,FLANGED,6MM
920151367
€ 0.50
92022
920221557
ref: 92022
ARUK
WASHER,6.5X20X1.6
920221557
€ 1.00
92081
27011006
ref: 92081
SPRING-BRAKE LAMP SW
27011006
€ 3.50
