SWING ARM

EX500A5 GPZ500S 1991 UNITED KINGDOM AR SD

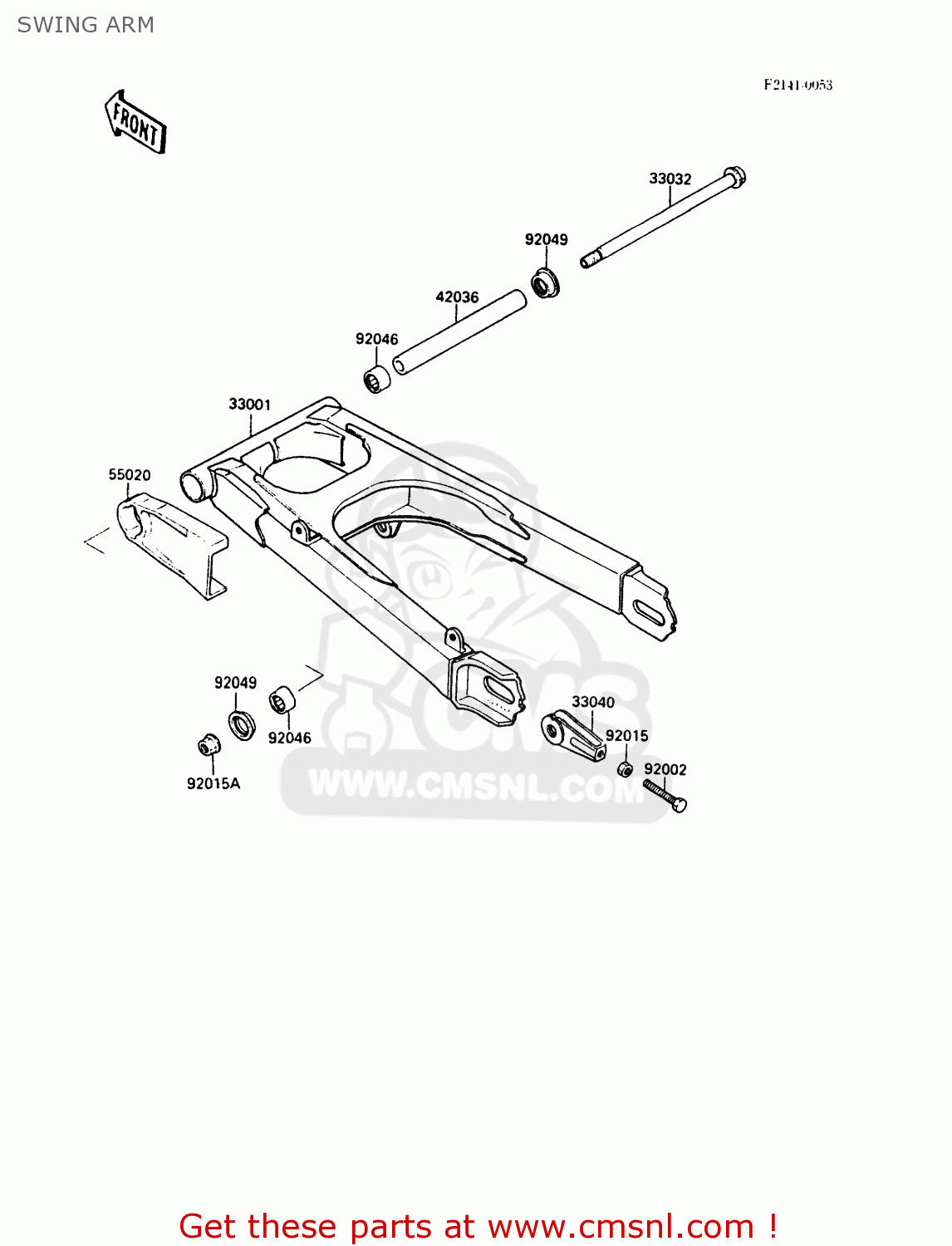

Swing arm diagram EX500A5 GPZ500S 1991 UNITED KINGDOM AR SD

prices are in EUR

ref

part #

description

quantity

33001

330011300CE
ref: 33001

ARM-COMP-SWING,SILVER

€ 411.00

33032

330321109
ref: 33032

SHAFT-SWING ARM

€ 31.50

33040

33040043
ref: 33040

ADJUSTER-CHAIN

€ 20.50

42036

420361212
ref: 42036

SLEEVE,14.1X22X220

€ 45.50

55020

550201218
ref: 55020

GUARD,CHAIN

€ 34.50

92002

920021825
ref: 92002

BOLT

€ 1.50

92015

920151364
ref: 92015

NUT,8MM

€ 2.50

92015A

920151407
ref: 92015A

NUT,14MM

€ 6.50

92046

920461036
ref: 92046

BEARING

€ 20.50

92049

920491254
ref: 92049

SEAL-OIL,MHA22 28 5.7

€ 6.50
