SUSPENSION

EX500A4 GPZ500S 1990 UNITED KINGDOM AR

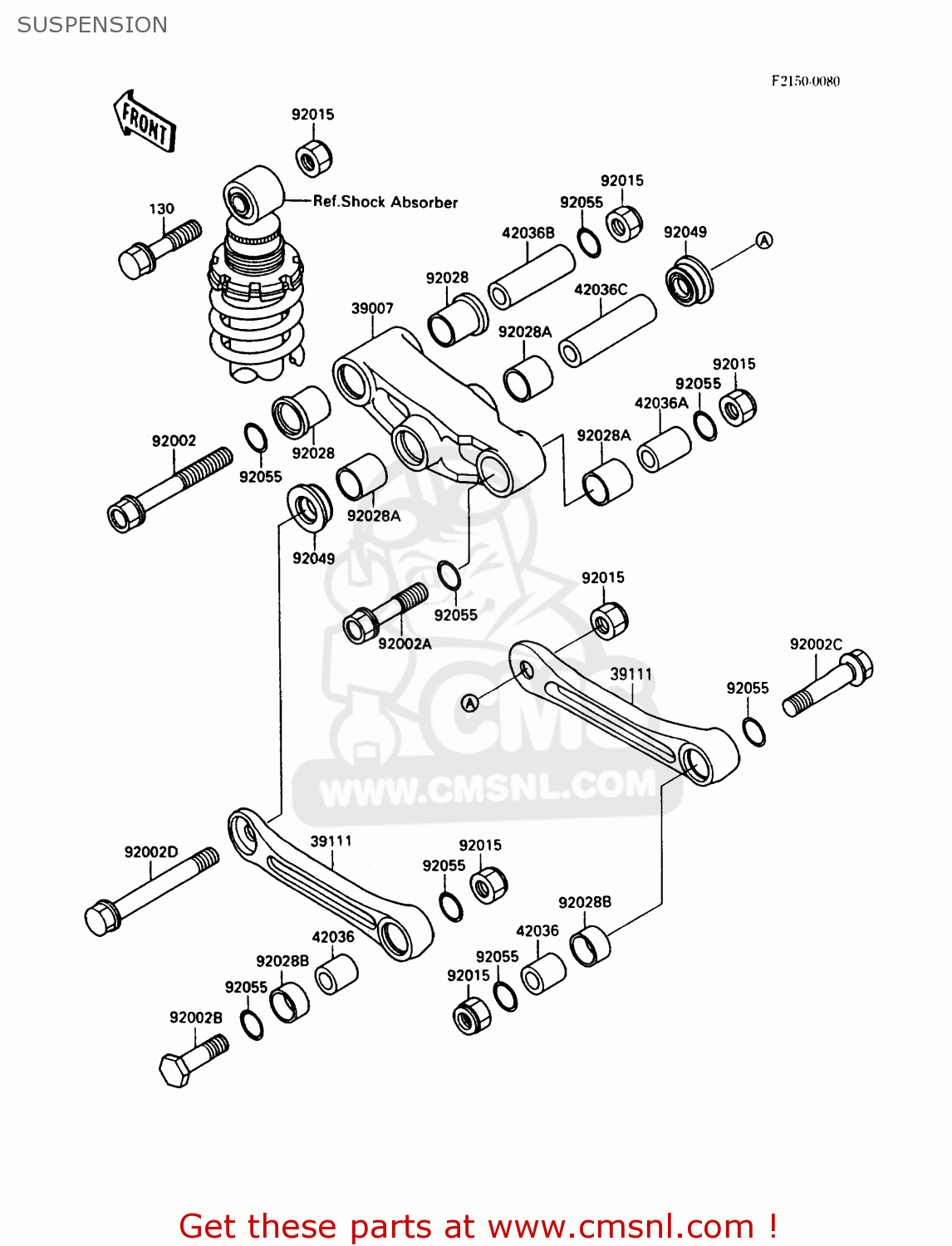

Suspension diagram EX500A4 GPZ500S 1990 UNITED KINGDOM AR

SUSPENSION EX500A4 GPZ500S 1990 UNITED KINGDOM AR
SUSPENSION EX500A4 GPZ500S 1990 UNITED KINGDOM AR
SUSPENSION EX500A4 GPZ500S 1990 UNITED KINGDOM AR
prices are in EUR
ref
part #
description
quantity
130
130G1250
ref: 130
BOLT-FLANGED
130G1250
€ 4.00
39007
390071120
ref: 39007
ARM-SUSP,UNI TRAK
390071120
€ 184.00
39111
391111072
ref: 39111
ROD-TIE,UNI TRAK
391111072
€ 51.50
42036
420361076
ref: 42036
SLEEVE,12.1X20X22
420361076
€ 12.00
42036A
420361077
ref: 42036A
SLEEVE,ARM,RR
420361077
€ 11.50
42036B
420361078
ref: 42036B
SLEEVE,ARM,FR
420361078
€ 17.00
42036C
420361102
ref: 42036C
SLEEVE,12.1X20X74
420361102
€ 19.50
92002
920011937
ref: 92002
BOLT,12X90
920011937
€ 10.50
92002A
920011938
ref: 92002A
BOLT,12X55
920011938
€ 8.50
92002B
920021065
ref: 92002B
BOLT,12X45
920021065
€ 7.50
92002C
920021885
ref: 92002C
BOLT,FLANGED,12X60
920021885
€ 7.00
92002D
920021886
ref: 92002D
BOLT,FLANGED,12X100
920021886
€ 11.50
92015
920151375
ref: 92015
NUT,12MM
€ 4.50
92028
920281200
ref: 92028
BUSHING,FLANGED
920281200
€ 6.50
92028A
920281201
ref: 92028A
BUSHING,20X23X25L
920281201
€ 5.00
92028B
920281202
ref: 92028B
BUSHING,20X23X15L
920281202
€ 18.00
92049
920491109
ref: 92049
SEAL-OIL,ARM,CNT
920491109
€ 6.50
92055
920551215
ref: 92055
RING-O,19.8X2.2
920551215
€ 2.50
