SIDE COVER/CHAIN CASE

EX500A4 GPZ500S 1990 UNITED KINGDOM AR

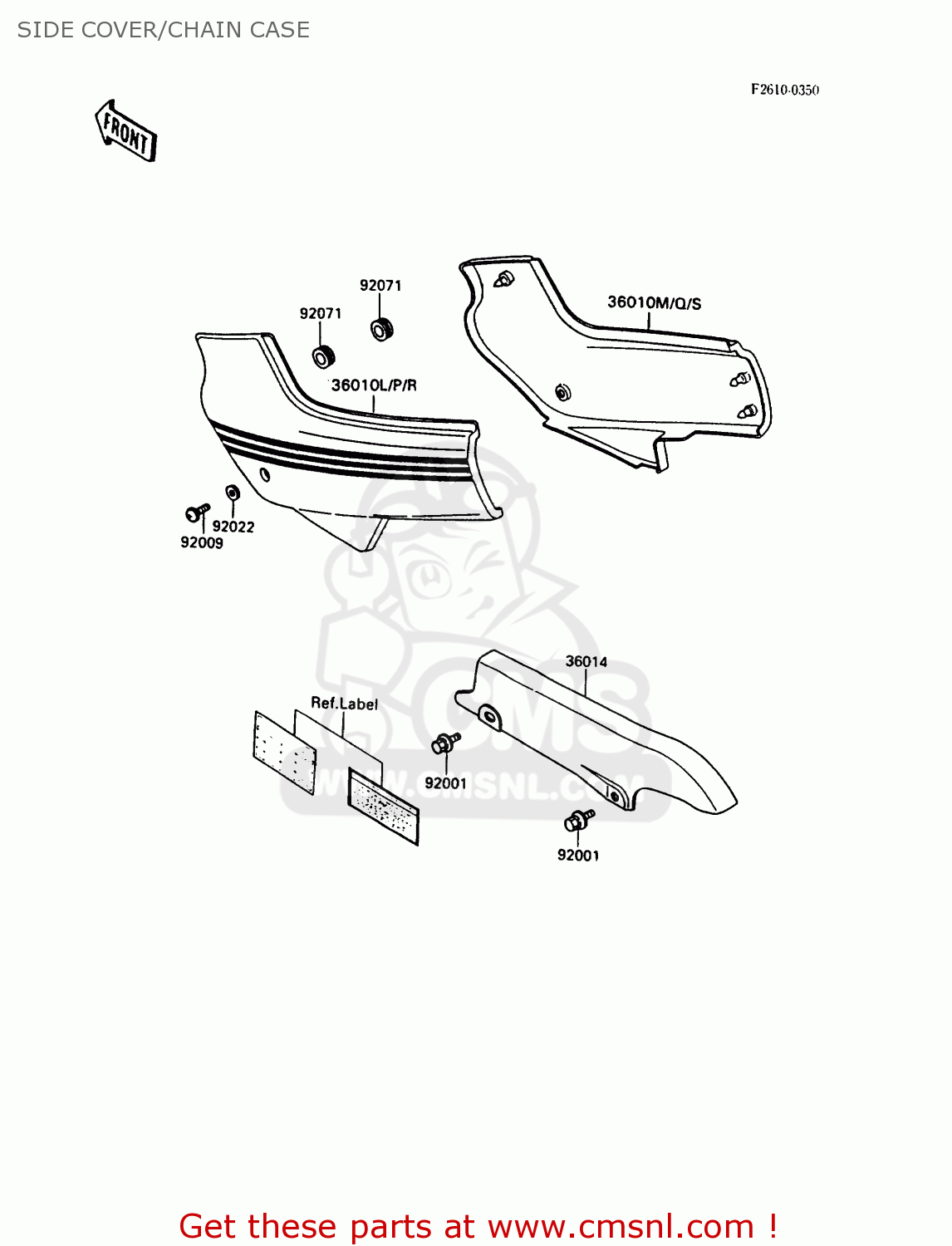

Side cover/chain case diagram EX500A4 GPZ500S 1990 UNITED KINGDOM AR

prices are in EUR

ref

part #

description

quantity

36010L

360105266S3
ref: 36010L

COVER-SIDE,LH,BLUE/WH

€ 199.00

36010M

360105267S3
ref: 36010M

COVER-SIDE,RH,BLUE/WH

€ 146.00

36010P

360105319GP
ref: 36010P

COVER-SIDE,LH,RED/WHI

€ 146.00

36010Q

360105320GP
ref: 36010Q

COVER-SIDE,RH,RED/WHI

€ 155.50

36014

360141144
ref: 36014

CASE-CHAIN

€ 51.00

92001

920011847
ref: 92001

BOLT,6X14,BLACK

€ 2.50

92009

920091288
ref: 92009

SCREW,6X14

€ 2.00

92022

920221654
ref: 92022

WASHER,6.5X16X1.0

€ 2.50

92071

92071056
ref: 92071

GROMMET

€ 2.50
