METER

EX500A4 GPZ500S 1990 UNITED KINGDOM AR

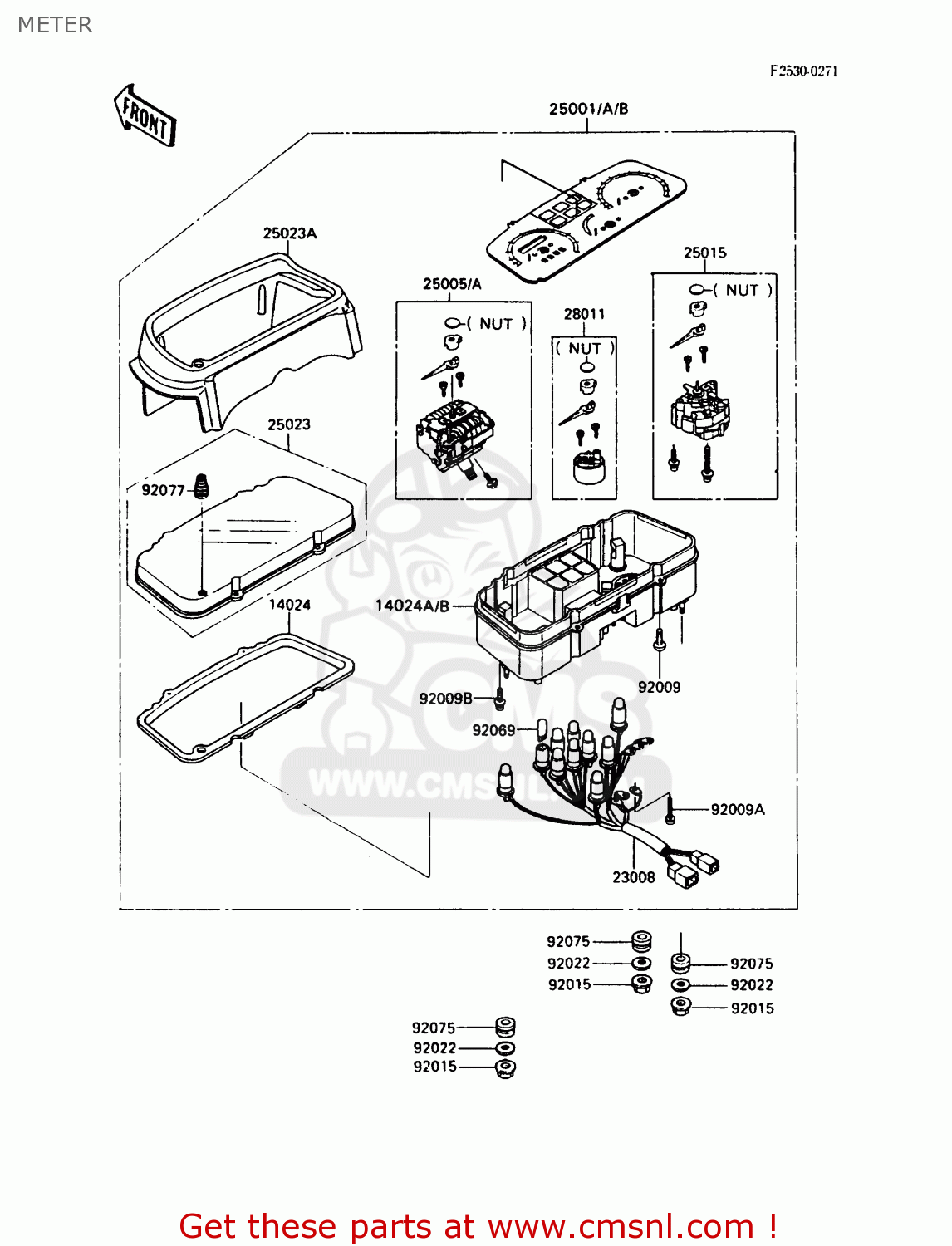

Meter diagram EX500A4 GPZ500S 1990 UNITED KINGDOM AR

METER EX500A4 GPZ500S 1990 UNITED KINGDOM AR
METER EX500A4 GPZ500S 1990 UNITED KINGDOM AR
METER EX500A4 GPZ500S 1990 UNITED KINGDOM AR
prices are in EUR
ref
part #
description
quantity
14024
140241278
ref: 14024
COVER,METER
140241278
€ 10.00
14024A
140241290
ref: 14024A
COVER,METER HOUSING
140241290
€ 43.00
23008
230081315
ref: 23008
SOCKET-ASSY,METER
230081315
€ 56.00
25001
250011676
ref: 25001
AR
METER-ASSY,KPH
250011676
€ 668.00
25001A
250011680
ref: 25001A
UK
METER-ASSY,MPH
€ 1,023.50
25005
250051348
ref: 25005
AR
SPEEDOMETER,KPH
250051348
€ 126.00
25005A
250051349
ref: 25005A
UK
SPEEDOMETER,MPH
€ 250.00
25015
250151267
ref: 25015
TACHOMETER,X1000R/MIN
250151267
€ 171.50
25023
250231141
ref: 25023
COVER-METER CASE,UPP
250231141
€ 57.00
25023A
250231151
ref: 25023A
COVER-METER CASE
250231151
€ 24.00
28011
280111097
ref: 28011
METER,TEMP
280111097
€ 54.50
92009
920091163
ref: 92009
SCREW,TAPPING,4X16
920091163
€ 2.50
92009A
920091293
ref: 92009A
SCREW,3X22
920091293
€ 2.50
92009B
920091382
ref: 92009B
SCREW
€ 2.00
92015
920151259
ref: 92015
NUT,FLANGED,5MM
920151259
€ 2.50
92022
25009004
ref: 92022
WASHER,5.2X16X1.2T
25009004
€ 2.50
92069
920691007
ref: 92069
BULB,12V3.4W
920691007
€ 2.50
92075
920751385
ref: 92075
DAMPER,METER BRACKET
920751385
€ 3.00
92077
920771061
ref: 92077
BOOT,TRIP RESET KNOB
920771061
€ 6.00
