CARBURETOR
EX500A4 GPZ500S 1990 UNITED KINGDOM AR

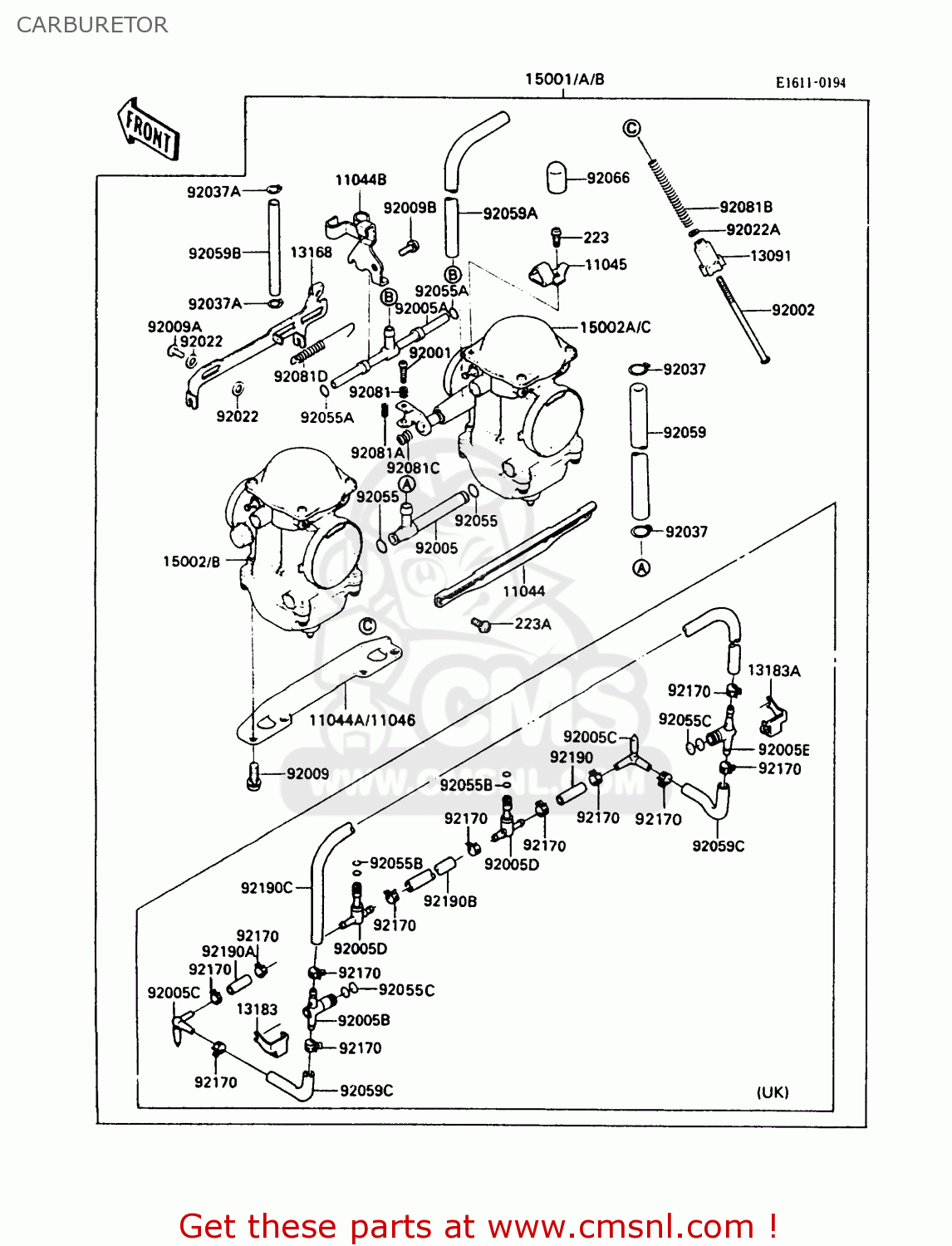

Carburetor diagram EX500A4 GPZ500S 1990 UNITED KINGDOM AR
CARBURETOR EX500A4 GPZ500S 1990 UNITED KINGDOM AR
×
prices are in EUR
ref
part #
description
quantity
11044
110441313
ref: 11044
BRACKET,CARBURETOR ST
€ 43.50
11044A
110441314
ref: 11044A
AR
BRACKET,CARBURETOR ST
€ 45.50
11044B
110441546
ref: 11044B
BRACKET,THROTTLE CABL
€ 41.00
11045
110451824
ref: 11045
BRACKET,STARTER LEVER
€ 44.50
11046
110461743
ref: 11046
UK
BRACKET,CARBURETOR ST
€ 45.00
13091
130911382
ref: 13091
HOLDER,THROTTLE STOP
€ 11.00
13168
131681360
ref: 13168
LEVER
€ 55.50
13183
131831468
ref: 13183
UK
PLATE,LH
€ 10.00
13183A
131831469
ref: 13183A
UK
PLATE,RH
€ 9.00
15001
150011484
ref: 15001
AR
CARBURETOR-ASSY
€ 1,125.50
15001A
150011490
ref: 15001A
UK
CARBURETOR-ASSY
€ 904.50
15002
150021812
ref: 15002
UK
CARBURETOR,LH
€ 491.00
15002A
150021813
ref: 15002A
UK
CARBURETOR,RH
€ 491.00
15002B
150021835
ref: 15002B
AR
CARBURETOR,LH
€ 596.00
15002C
150021836
ref: 15002C
AR
CARBURETOR,RH
€ 596.00
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
€ 11.50
92002
920021552
ref: 92002
BOLT,THROTTLE STOP SC
€ 10.00
92005
920051133
ref: 92005
FITTING
€ 37.50
92005A
920051134
ref: 92005A
FITTING
€ 43.00
92005B
920051192
ref: 92005B
UK
FITTING,T-TYPE
€ 17.50
92005C
920051193
ref: 92005C
UK
FITTING
€ 12.00
92005D
920051194
ref: 92005D
UK
FITTING,WATER
€ 22.50
92005E
920051199
ref: 92005E
UK
FITTING,T-TYPE
€ 7.50
92009
920091129
ref: 92009
SCREW,6X16
€ 3.00
92009A
920091262
ref: 92009A
SCREW
€ 4.00
92009B
920091365
ref: 92009B
SCREW
€ 4.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
€ 3.00
92022A
920221480
ref: 92022A
WASHER,PLAIN,STOP SPR
€ 3.00
92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
€ 2.50
92037A
920371477
ref: 92037A
CLAMP,TUBE
€ 3.00
92055
920551004
ref: 92055
O RING
€ 2.50
92055A
920551223
ref: 92055A
RING-O,FUEL FITTING
€ 3.50
92055B
920551427
ref: 92055B
UK
RING-O,4.5X1.5
€ 3.00
92055C
920551454
ref: 92055C
UK
RING-O
€ 4.00
92059
920591236
ref: 92059
TUBE,FUEL
€ 25.00
92059A
920591465
ref: 92059A
TUBE,6.5X9.5X500
€ 20.50
92059B
920591634
ref: 92059B
TUBE,5X9X140
€ 12.00
92059C
920591977
ref: 92059C
UK
TUBE,4X10X70
€ 9.00
92066
92068006
ref: 92066
RUBBER PLUG
€ 2.50
92081
920811620
ref: 92081
SPRING,THROTTLE ADJUS
€ 3.00
92081A
920811621
ref: 92081A
SPRING,THROTTLE ADJUS
€ 3.00
92081B
920811875
ref: 92081B
SPRING,THROTTLE STOP
€ 5.50
92081C
920811876
ref: 92081C
SPRING
€ 6.00
223
223C0420
ref: 223
SCREW-PAN-WS-CROS
€ 3.00
223A
223C0510
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
92081D
920811893
ref: 92081D
SPRING,STARTER LEVER
€ 12.50
92170
921701054
ref: 92170
UK
CLAMP,TUBE
€ 5.00
92190
921901032
ref: 92190
UK
TUBE,L=40
€ 3.50
92190A
921901033
ref: 92190A
UK
TUBE,L=25
€ 9.00
92190B
921901039
ref: 92190B
UK
TUBE,L=105
€ 8.00
92190C
921901040
ref: 92190C
UK
TUBE,L=385
€ 17.50
