FRAME

EX500A4 GPZ500S 1990 UNITED KINGDOM AR

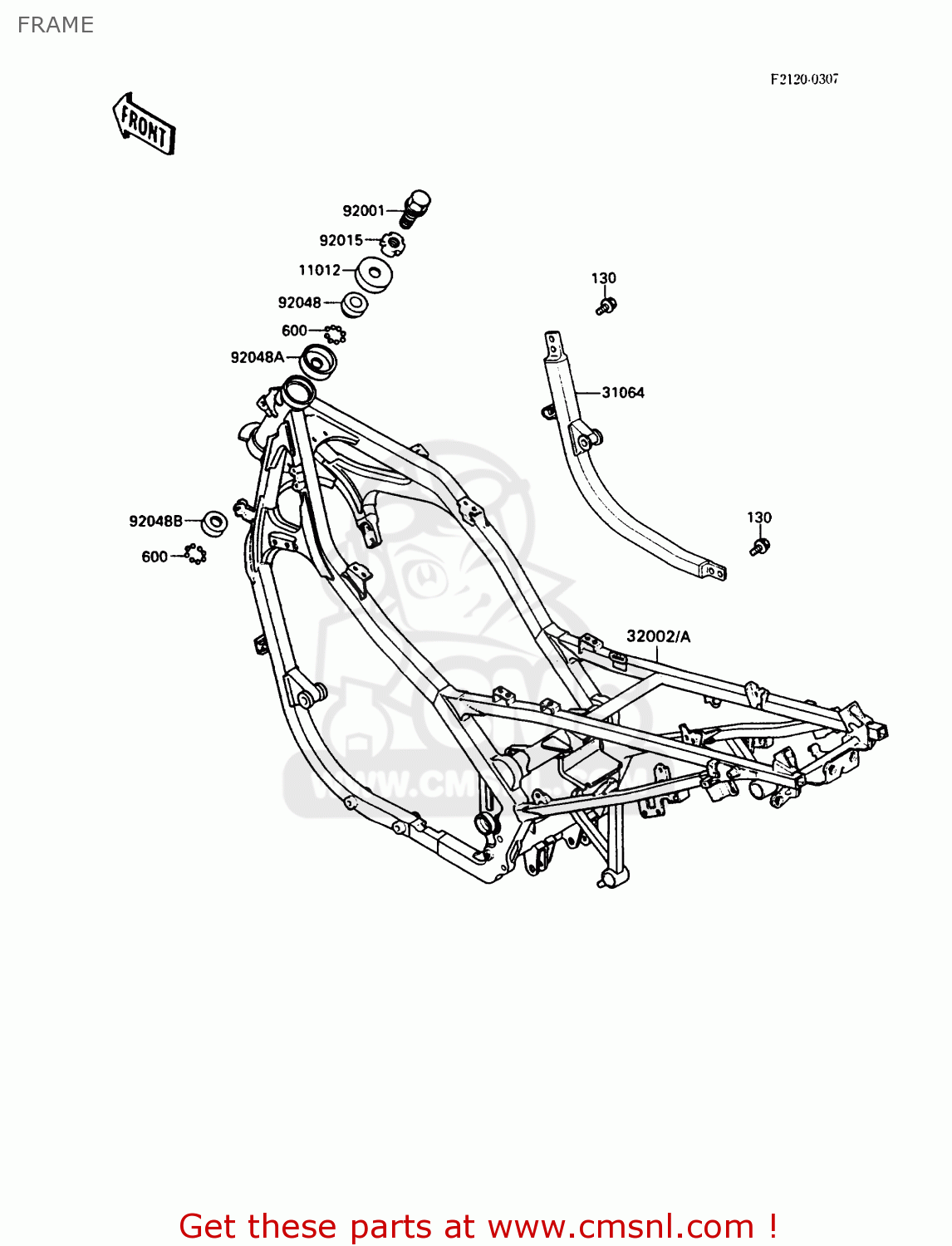

Frame diagram EX500A4 GPZ500S 1990 UNITED KINGDOM AR

prices are in EUR

ref

part #

description

quantity

130

130G1020
ref: 130

BOLT-FLANGED,10X20

€ 1.50

600

600A0800
ref: 600

BALL-STEEL,1/4

€ 0.50

11012

46098016
ref: 11012

CAP,STEERING STEM

€ 4.00

31064

310641082
ref: 31064

PIPE-COMP,FRAME,RH

€ 114.50

32002A

320021924
ref: 32002A

FRAME-COMP

€ 1,002.50

92001

920011488
ref: 92001

BOLT,FLANGED,16X22

€ 13.50

92015

92090007
ref: 92015

NUT-STEERING STEM LCK

€ 8.00

92048

92047011
ref: 92048

CONE-STRNG STM BRNG

€ 14.50

92048A

92048006
ref: 92048A

RACE-STRNG BEARIN-STE

€ 11.50

92048B

92048008
ref: 92048B

RACE-STRNG STM BRNG

€ 16.00
