VALVE(S)
EX500A2 GPZ500S 1988 EUROPE UK AR SD

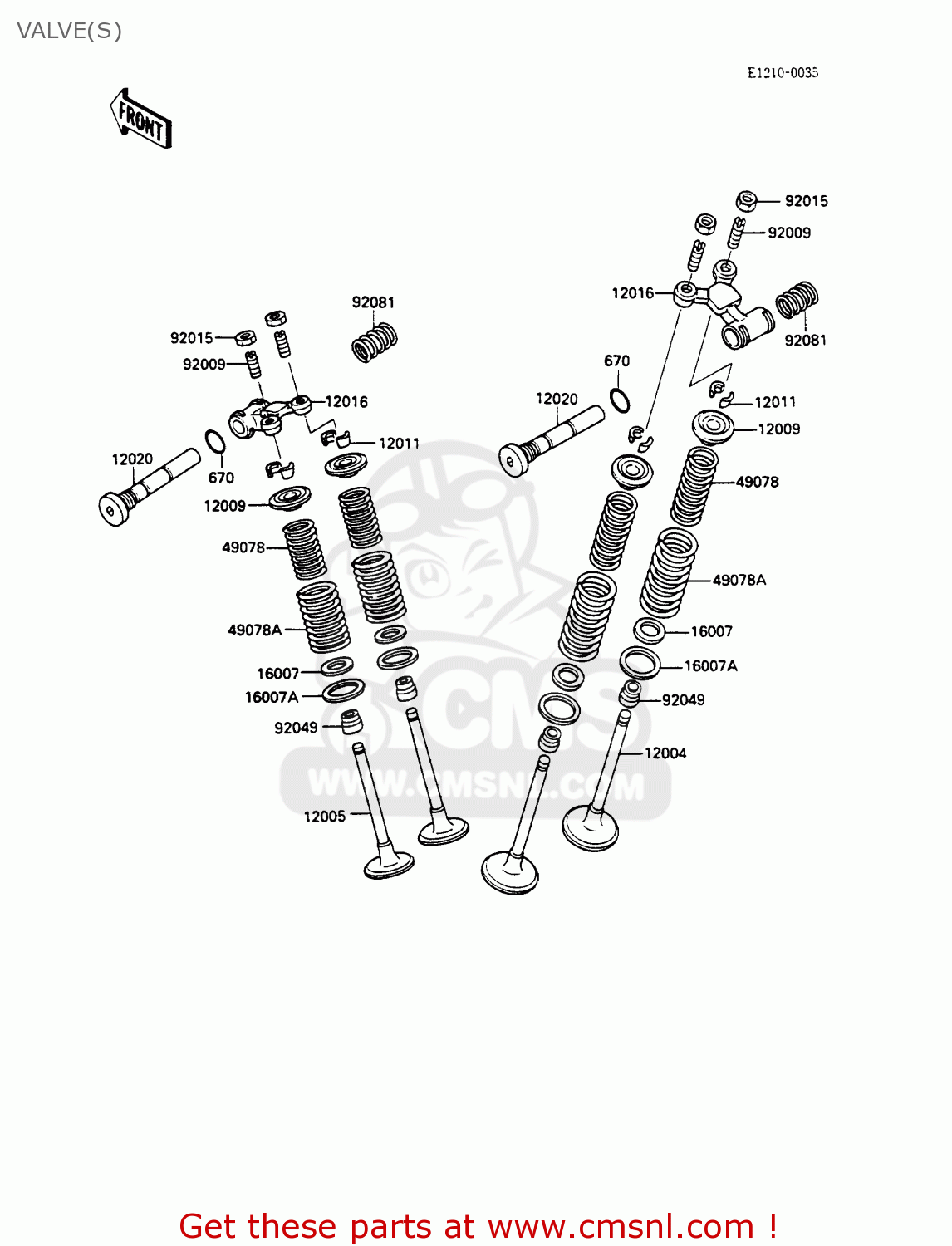

Valve(s) diagram EX500A2 GPZ500S 1988 EUROPE UK AR SD
VALVE(S) EX500A2 GPZ500S 1988 EUROPE UK AR SD
×
prices are in EUR
ref
part #
description
quantity
670
670D2016
ref: 670
O RING,16MM
€ 1.00
12004
120041076
ref: 12004
VALVE-INTAKE
€ 42.50
12005
120051052
ref: 12005
VALVE-EXHAUST
€ 68.00
12009
120091054
ref: 12009
RETAINER-VALVE SPRING
€ 7.00
12011
120111003
ref: 12011
COLLET
€ 3.00
12016
120161051
ref: 12016
ARM-ROCKER
€ 84.00
12020
120201057
ref: 12020
SHAFT-ROCKER
€ 50.00
16007
160071143
ref: 16007
SEAT-SPRING
€ 3.50
16007A
160071144
ref: 16007A
SEAT-SPRING
€ 4.00
49078
490781051
ref: 49078
SPRING-ENGINE VALVE,I
€ 10.50
49078A
490781052
ref: 49078A
SPRING-ENGINE VALVE,O
€ 10.50
92009
920091279
ref: 92009
SCREW,7MM
€ 6.50
92015
920151325
ref: 92015
NUT,7MM
€ 3.00
92049
920491062
ref: 92049
OIL SEAL,RVC2-5.5X8.5
€ 6.50
92081
920811636
ref: 92081
SPRING,ROCKER ARM
€ 10.00
