TRANSMISSION

EX500A2 GPZ500S 1988 EUROPE UK AR SD

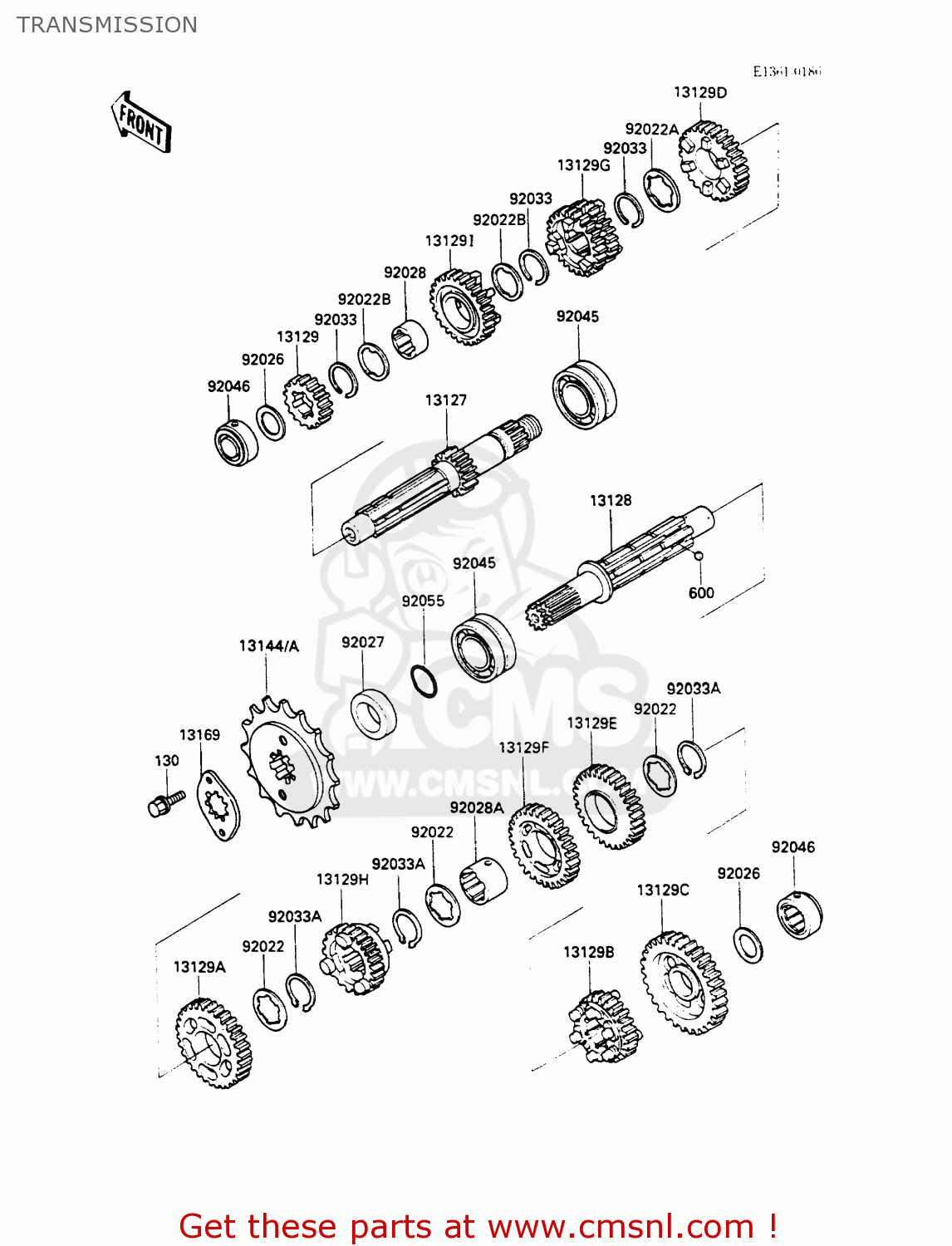

Transmission diagram EX500A2 GPZ500S 1988 EUROPE UK AR SD

TRANSMISSION EX500A2 GPZ500S 1988 EUROPE UK AR SD
TRANSMISSION EX500A2 GPZ500S 1988 EUROPE UK AR SD
TRANSMISSION EX500A2 GPZ500S 1988 EUROPE UK AR SD
prices are in EUR
ref
part #
description
quantity
130
130G0610
ref: 130
BOLT-FLANGED,6X10
130G0610
€ 0.50
600
600A0500
ref: 600
BALL-STEEL,5/32
600A0500
€ 0.50
13127
131271148
ref: 13127
SHAFT-TRANSMISSION IN
€ 187.50
13128
131281143
ref: 13128
SHAFT-TRANSMISSION OU
€ 178.50
13129
131291077
ref: 13129
2ND GEAR,DRIVE,18T
€ 79.50
13129A
131291078
ref: 13129A
2ND GEAR,OUTPUT,32T
€ 75.50
13129B
131291083
ref: 13129B
GEAR,OUTPUT 5TH,25T
131291083
€ 114.50
13129C
131291564
ref: 13129C
GEAR,OUTPUT LOW,36T
131291564
€ 120.50
13129D
131291657
ref: 13129D
GEAR,INPUT 5TH,26T
€ 134.50
13129E
131291659
ref: 13129E
GEAR,OUTPUT 3RD,29T
€ 44.00
13129F
131291660
ref: 13129F
GEAR,OUTPUT 4TH,27T
131291660
€ 113.50
13129G
131291846
ref: 13129G
GEAR,INPUT 3RD&4TH,21
€ 103.00
13129H
131291858
ref: 13129H
GEAR,OUTPUT TOP,23T
131291858
€ 45.00
13129I
131291859
ref: 13129I
GEAR,INPUT TOP,27T
131291859
€ 107.00
13144
131441085
ref: 13144
SPROCKET-OUTPUT,16T
131441085
€ 25.00
13169
131691109
ref: 13169
PLATE,ENGINE SPROCKET
131691109
€ 5.50
92022
920221139
ref: 92022
WASHER,TOOTHED,28.3X3
920221139
€ 4.00
92022A
920221861
ref: 92022A
WASHER,TOOTHED,25.3X3
920221861
€ 4.00
92022B
92024033
ref: 92022B
WASHER,TOOTHED,25.5X3
92024033
€ 4.50
92026
920261022
ref: 92026
SPACER,20.3X30X2.0
920261022
€ 3.00
92027
920271857
ref: 92027
COLLAR,25X40X12
920271857
€ 18.50
92028
920281003
ref: 92028
BUSHING,DRIVE TOP GER
920281003
€ 17.50
92028A
920281364
ref: 92028A
BUSHING,OUTPUT 3RD&4T
920281364
€ 22.00
92033
92033026
ref: 92033
CIRCLIP
92033026
€ 6.00
92033A
920331037
ref: 92033A
SNAP RING,25.9X1.2T
920331037
€ 3.00
92045
92045035
ref: 92045
BEARING-BALL,83993SH2
92045035
€ 66.50
92046
920461161
ref: 92046
BEARING-NEEDLE,NKZ20X
920461161
€ 46.00
92055
92055035
ref: 92055
O RING
92055035
€ 3.00
