COWLING(EX500-A2)
EX500A2 GPZ500S 1988 EUROPE UK AR SD

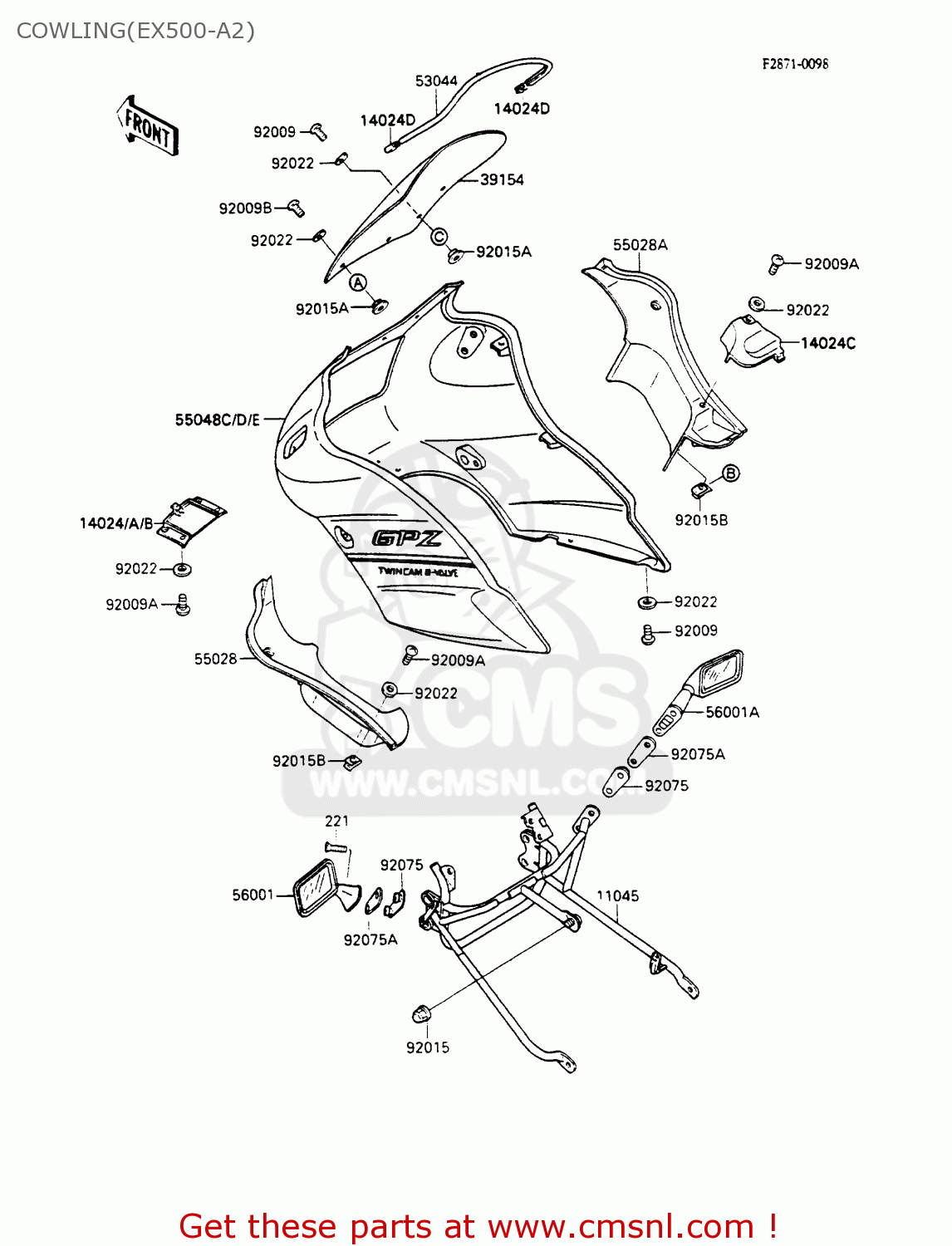

Cowling(ex500-a2) diagram EX500A2 GPZ500S 1988 EUROPE UK AR SD
COWLING(EX500-A2) EX500A2 GPZ500S 1988 EUROPE UK AR SD
×
prices are in EUR
ref
part #
description
quantity
11045
110451816
ref: 11045
BRACKET,COWLING
€ 157.50
14024
140241385H8
ref: 14024
COVER,UPPER COWLING,L
€ 11.00
14024A
140241385R1
ref: 14024A
AREU
COVER,UPPER COWLING,L
€ 14.00
14024B
1402413856L
ref: 14024B
AREUUK
COVER,UPPER COWLING,L
€ 11.50
14024C
1402413857F
ref: 14024C
UK
COVER,UPPER COWLING,L
€ 15.00
14024D
140241392
ref: 14024D
COVER,INNER COWLING,R
€ 16.50
14024E
140251756
ref: 14024E
COVER,TRIM END
€ 4.50
39154
391541100
ref: 39154
WINDSHIELD
€ 246.50
53044
530441120
ref: 53044
TRIM,WINDSHIELD
€ 20.50
55028
550281145
ref: 55028
COWLING,INNER,LH
€ 30.00
55028A
550281146
ref: 55028A
COWLING,INNER,RH
€ 30.00
55028E
550285375B1
ref: 55028E
AREUUK
COWLING,UPP,F.RED
€ 786.50
55028F
550285376R1
ref: 55028F
AREU
COWLING,UPP,P.A.WHITE
€ 746.50
55028G
550285393H8
ref: 55028G
COWLING,UPP,EBONY
€ 816.50
55048
5504850027F
ref: 55048
UK
COWLING.,UPP,L.GREEN
€ 664.00
56001
560011248
ref: 56001
MIRROR-ASSY,LH
€ 71.50
56001A
560011249
ref: 56001A
MIRROR-ASSY,RH
€ 71.50
92009
920091301
ref: 92009
SCREW,5X16
€ 0.50
92009A
920091479
ref: 92009A
SCREW,5X15
€ 2.50
92009B
920091490
ref: 92009B
SCREW,5X12
€ 2.50
92015
920151174
ref: 92015
NUT,CAP,8MM,BLACK
€ 3.00
92015A
920151343
ref: 92015A
NUT,5MM,COWLING
€ 3.00
92015B
920151638
ref: 92015B
NUT,5MM
€ 4.00
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
€ 2.50
221
221C0630
ref: 221
SCREW-CSK-CROS,6X30
€ 1.00
92075
920751492
ref: 92075
DAMPER,MIRROR
€ 5.00
92075A
920751745
ref: 92075A
DAMPER,MIRROR
€ 5.00
