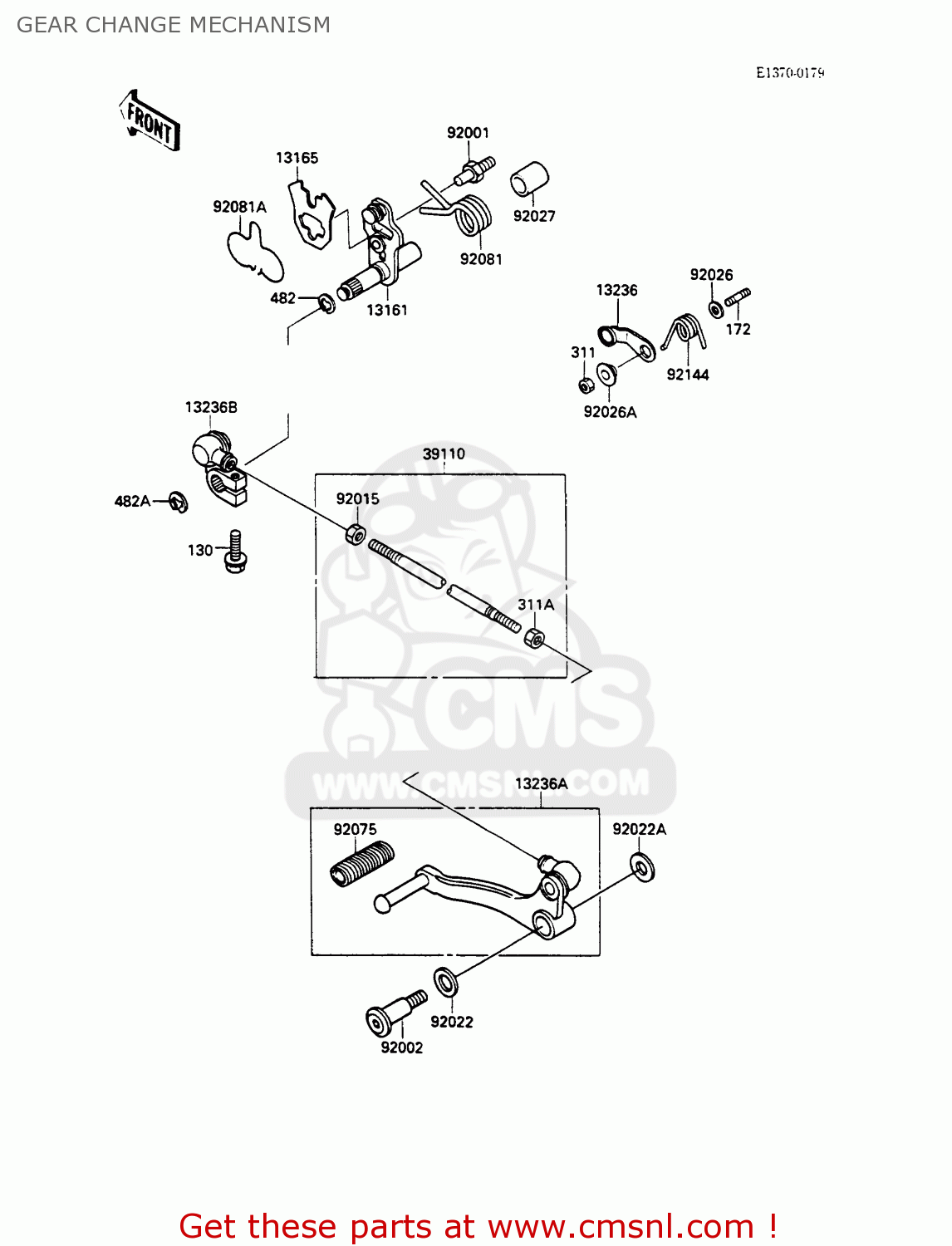

GEAR CHANGE MECHANISM

ref

part #

description

quantity

130

130S0620
ref: 130

BOLT-FLANGED,6X20,BLA

€ 2.50

172

172G0614
ref: 172

STUD,6X14

€ 1.00

311

311G0600
ref: 311

NUT,6M/M

€ 0.50

311A

311J0600
ref: 311A

NUT-HEX

€ 1.00

482

482J0200
ref: 482

CIRCLIP-TYPE-E,12MM

€ 2.50

482A

482L7000
ref: 482A

CIRCLIP-TYPE-E

€ 2.50

13161

131611117
ref: 13161

LEVER-COMP-CHANGE SHA

€ 56.00

13165

131651034
ref: 13165

PAWL,CHANGE LEVER

€ 7.00

13236

132361103
ref: 13236

LEVER-COMP,GEAR POSIT

€ 13.00

13236A

132361153
ref: 13236A

LEVER-COMP,CHANGE PED

€ 51.50

13236B

132361154
ref: 13236B

LEVER-COMP,CHANGE LIN

€ 55.00

39110

391101077
ref: 39110

ROD-ASSY-TIE

€ 9.50

92001

920011455
ref: 92001

BOLT

€ 3.00

92002

920021926
ref: 92002

BOLT,CHANGE PEDAL

€ 10.50

92015

920151178
ref: 92015

NUT

€ 2.50

92022

920221537
ref: 92022

WASHER,12.5X21X1.2,BL

€ 3.50

92022A

920221561
ref: 92022A

WASHER,8.5X20X1.6

€ 2.50

92026

92026094
ref: 92026

WASHER,THRUST

€ 6.50

92026A

920261217
ref: 92026A

SPACER

€ 3.50

92027

920271440
ref: 92027

COLLAR,13X18.3X21.5

€ 3.50

92075

13157007
ref: 92075

RUBBER, SHIFT PEDAL

€ 3.50

92081

920811387
ref: 92081

SPRING,RETURN

€ 6.50

92081A

920811785
ref: 92081A

SPRING,CHANGE LEVER

€ 6.00

92144

921441180
ref: 92144

SPRING,POSITION LEVER

€ 6.00
