IGNITION SWITCH
EX500A2 GPZ500S 1988 EUROPE UK AR SD

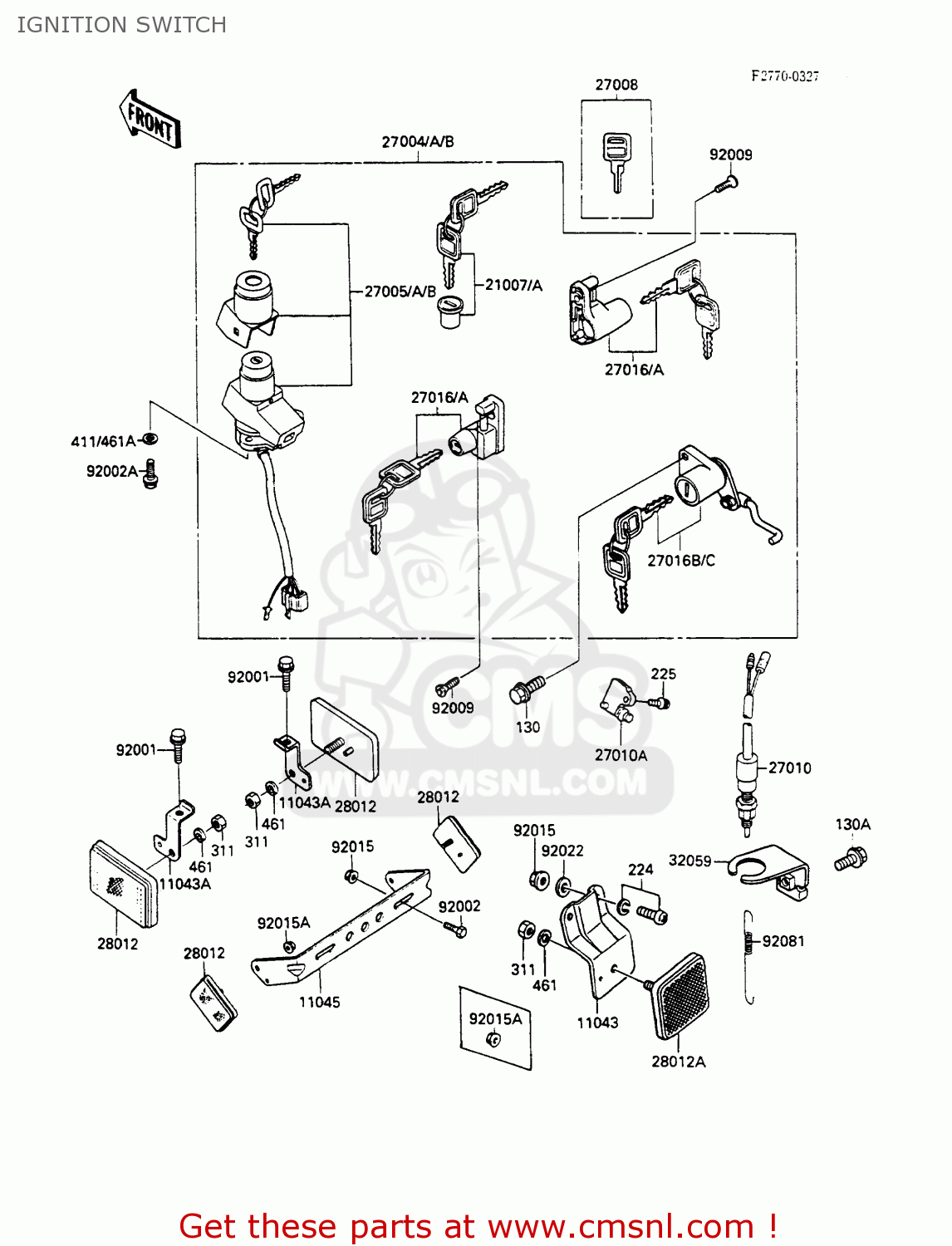

Ignition switch diagram EX500A2 GPZ500S 1988 EUROPE UK AR SD
IGNITION SWITCH EX500A2 GPZ500S 1988 EUROPE UK AR SD
×
prices are in EUR
ref
part #
description
quantity
11043
110431078
ref: 11043
AREU
BRACKET-B,REFLECTOR
€ 13.50
11043A
110431423
ref: 11043A
AR
BRACKET,FR,REFLECTOR
€ 6.50
11045
110451621
ref: 11045
AR
BRACKET,REFLECTOR,RR
€ 14.00
21007
210075012
ref: 21007
AREUUK
ROTOR,LOCK,TANK CAP
€ 65.50
21007A
210075013
ref: 21007A
SD
ROTOR,LOCK,TANK CAP
€ 65.50
27004
270045301
ref: 27004
SD
SWITCH-ASSY
€ 281.00
27004B
270045328
ref: 27004B
AREUUK
SWITCH-ASSY
€ 257.00
27005A
270055071
ref: 27005A
SD
SWITCH-ASSY-IGNITION
€ 143.00
27005B
270055075
ref: 27005B
AREUUK
SWITCH-ASSY-IGNITION
€ 150.00
27008
270081103
ref: 27008
KEY-LOCK,BLANK
€ 13.50
27010
270101019
ref: 27010
SWITCH,REAR BRAKE
€ 23.00
27010A
270101185
ref: 27010A
SWITCH,BRAKE/SIDE STA
€ 25.50
27016
270165091
ref: 27016
AREUUK
LOCK-ASSY,HELMET
€ 24.00
27016A
270165092
ref: 27016A
SD
LOCK-ASSY,HELMET
€ 24.00
27016B
270165123
ref: 27016B
AREUUK
LOCK-ASSY,SEAT
€ 24.00
27016C
270165124
ref: 27016C
SD
LOCK-ASSY,SEAT
€ 24.00
28012
280121003
ref: 28012
AR
REFLECTOR,REFLEX
€ 15.00
130
130B0510
ref: 130
BOLT-FLANGED
€ 1.50
130A
130B0614
ref: 130A
BOLT-FLANGED
€ 0.50
224
224C0614
ref: 224
AREU
SCREW-PAN-WP-CROS
€ 2.50
225
225C0416
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
311
311B0500
ref: 311
AR
NUT-HEX
€ 0.50
311
311B0500
ref: 311
EU
NUT-HEX
€ 0.50
411
411E0600
ref: 411
AREUUK
W-PLAIN-S
€ 0.50
461
461F0500
ref: 461
AR
WASHER-SPRING,5MM
€ 0.50
461
461F0500
ref: 461
EU
WASHER-SPRING,5MM
€ 0.50
461A
461L0600
ref: 461A
SD
WASHER-SPRING
€ 0.50
28012A
280121054
ref: 28012A
REFLECTOR-REFLEX,RR
€ 15.00
32059
320591081
ref: 32059
BRACKET-SWITCH,REAR B
€ 5.50
92001
920011847
ref: 92001
AR
BOLT,6X14,BLACK
€ 2.50
92002
920021132
ref: 92002
AR
BOLT,6X12
€ 2.50
92002A
920021333
ref: 92002A
BOLT
€ 1.50
92009
920091305
ref: 92009
SCREW,5X16
€ 2.50
92015
920151193
ref: 92015
AR
NUT,FLANGED,6MM
€ 0.50
92015
920151193
ref: 92015
EU
NUT,FLANGED,6MM
€ 0.50
92015A
920151259
ref: 92015A
AR
NUT,FLANGED,5MM
€ 2.50
92015A
920151259
ref: 92015A
SDUK
NUT,FLANGED,5MM
€ 2.50
92022
92022125
ref: 92022
AREU
WASHER,6.5X20X1.6
€ 1.00
92081
27011006
ref: 92081
SPRING-BRAKE LAMP SW
€ 3.50
