SWINGARM

EX500A1 GPZ500S 1987 EUROPE UK FR AR FG GR IT NR SD SP ST

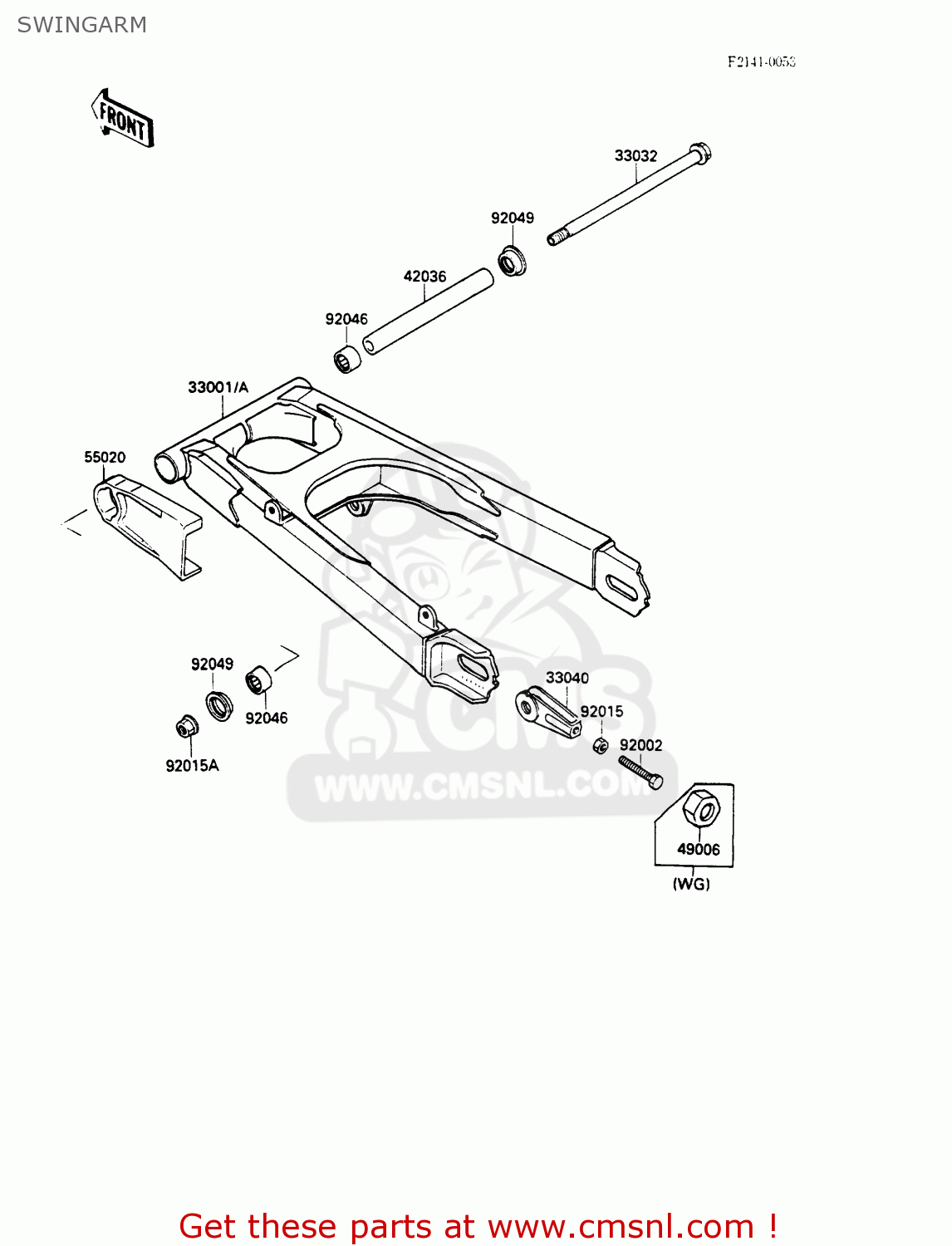

Swingarm diagram EX500A1 GPZ500S 1987 EUROPE UK FR AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

33001A

330011300X3
ref: 33001A

ARM-COMP-SWING,SILVER

€ 411.00

33032

330321109
ref: 33032

SHAFT-SWING ARM

€ 31.50

33040

33040043
ref: 33040

ADJUSTER-CHAIN

€ 20.50

42036

420361212
ref: 42036

SLEEVE,14.1X22X220

€ 45.50

49006

490061217
ref: 49006
FG

BOOT,CHAIN ADJUSTER B

€ 3.50

55020

550201218
ref: 55020

GUARD,CHAIN

€ 34.50

92002

920021825
ref: 92002

BOLT

€ 1.50

92015

920151364
ref: 92015

NUT,8MM

€ 2.50

92015A

920151407
ref: 92015A

NUT,14MM

€ 6.50

92046

920461036
ref: 92046

BEARING

€ 20.50

92049

920491254
ref: 92049

SEAL-OIL,MHA22 28 5.7

€ 6.50
