MUFFLER(S)

EX500A1 GPZ500S 1987 EUROPE UK FR AR FG GR IT NR SD SP ST

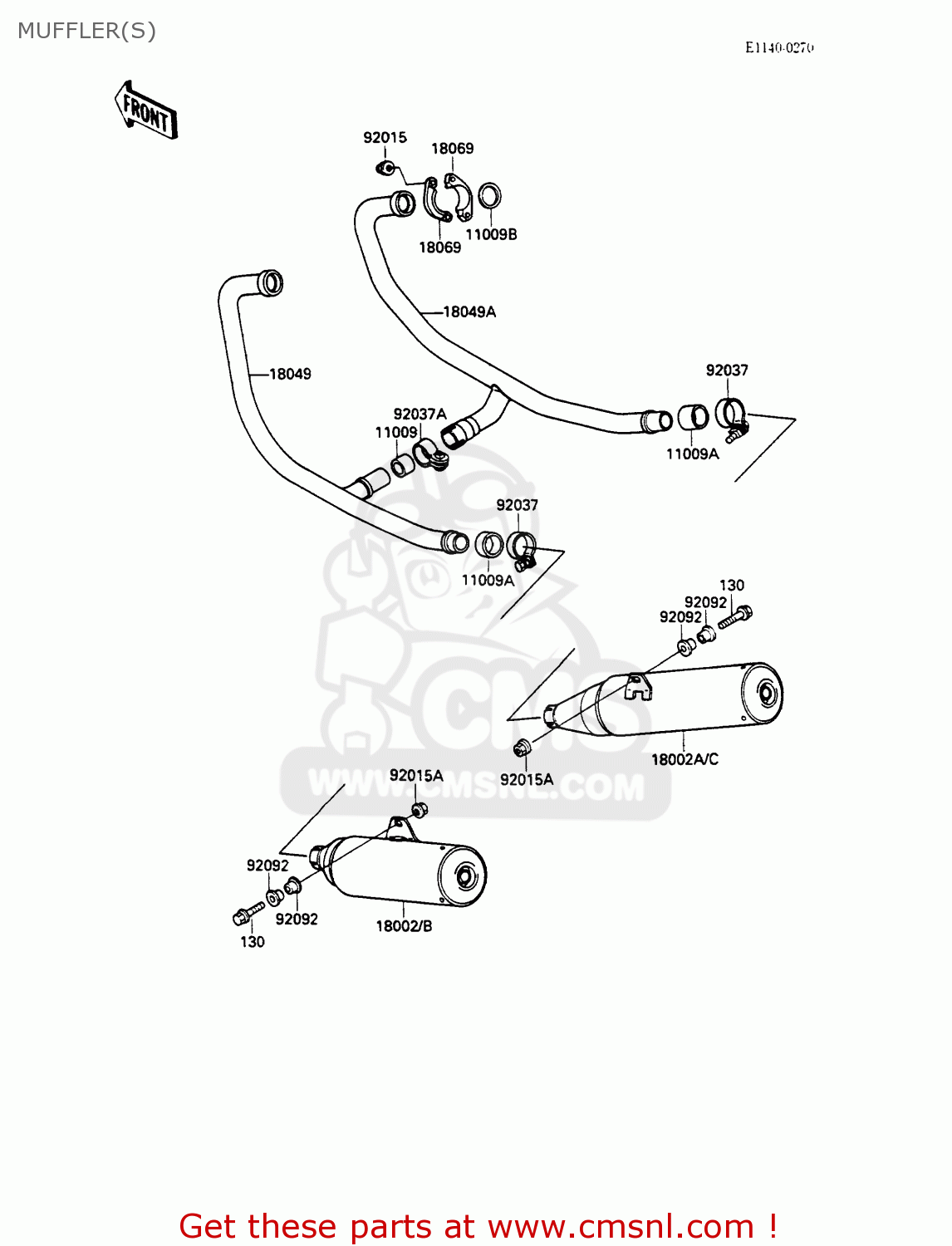

Muffler(s) diagram EX500A1 GPZ500S 1987 EUROPE UK FR AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

130

130J1065
ref: 130

BOLT-FLANGED

€ 5.00

11009

110091606
ref: 11009

GASKET,MUFFLER CONNEC (MCA)

€ 19.50

11009A

110091634
ref: 11009A

GASKET,EXHAUST PIPE C (MCA)

€ 15.00

11009B

18067013
ref: 11009B

GASKET-EXHAUST PIPE (NAS)

€ 7.00

18002

180021738
ref: 18002
AREUFGFRGRITNRSPSTUK

BODY-COMP-MUFFLER,LH

€ 288.50

18002A

180021739
ref: 18002A
AREUFGFRGRITNRSPSTUK

BODY-COMP-MUFFLER,RH

€ 314.50

18002B

180021775
ref: 18002B
SD

BODY-COMP-MUFFLER,LH

€ 346.50

18002C

180021776
ref: 18002C
SD

BODY-COMP-MUFFLER,RH

€ 309.00

18049

180491402
ref: 18049

PIPE-EXHAUST,LH

€ 168.00

18049A

180491403
ref: 18049A

PIPE-EXHAUST,RH

€ 151.00

18069

180691054
ref: 18069

HOLDER-EXHAUST PIPE

€ 16.50

92015

920151370
ref: 92015

NUT,CAP,8MM

€ 3.00

92015A

920151428
ref: 92015A

NUT,FLANGED,10MM

€ 3.00

92037

920371350
ref: 92037

CLAMP,42MM,BLACK

€ 24.50

92037A

920371792
ref: 92037A

CLAMP,39.5MM

€ 10.00

92092

92092010
ref: 92092

BUSHING-MUFFLER FITT

€ 11.00
