COWLING(EX500-A1)

EX500A1 GPZ500S 1987 EUROPE UK FR AR FG GR IT NR SD SP ST

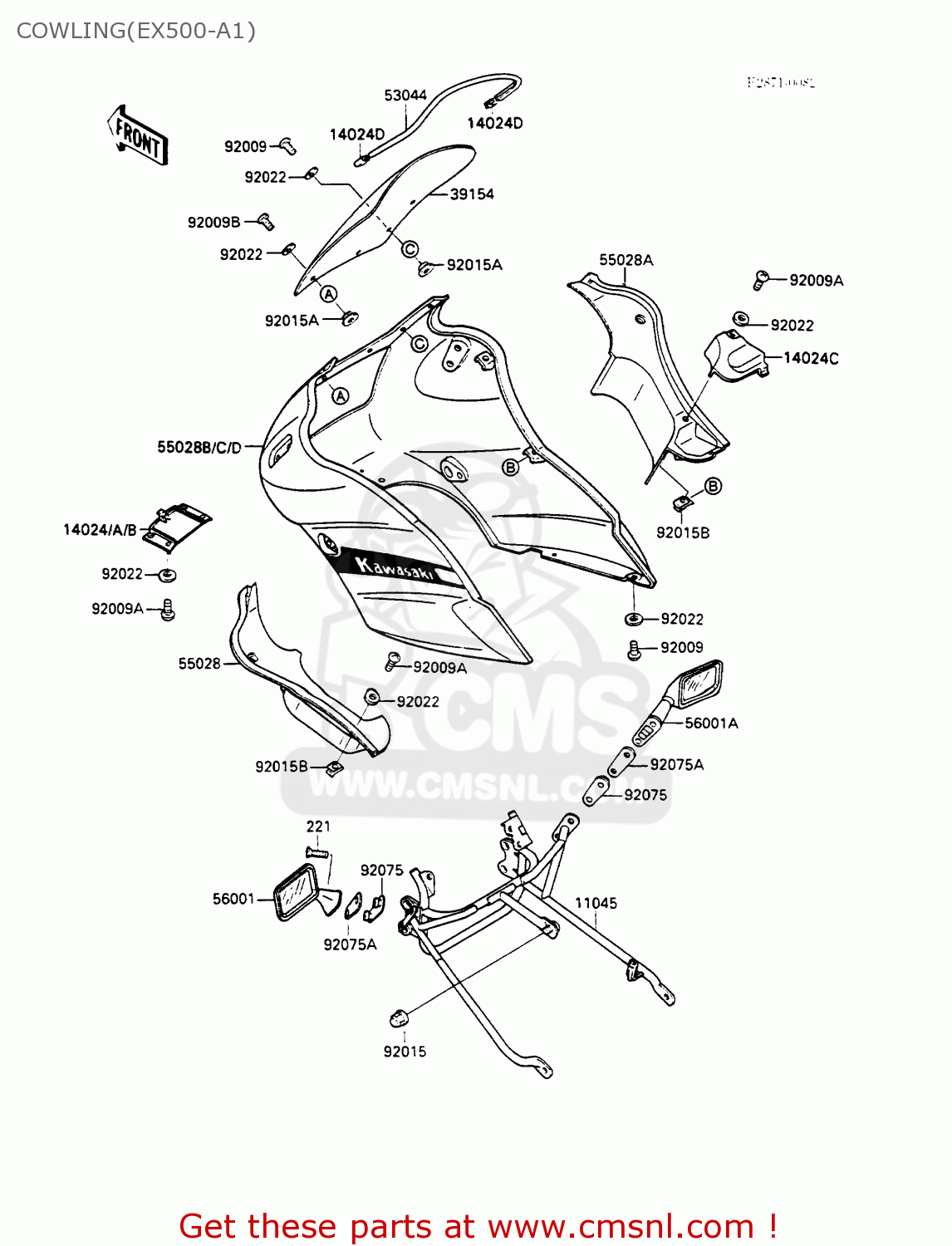

Cowling(ex500-a1) diagram EX500A1 GPZ500S 1987 EUROPE UK FR AR FG GR IT NR SD SP ST

COWLING(EX500-A1) EX500A1 GPZ500S 1987 EUROPE UK FR AR FG GR IT NR SD SP ST
COWLING(EX500-A1) EX500A1 GPZ500S 1987 EUROPE UK FR AR FG GR IT NR SD SP ST
COWLING(EX500-A1) EX500A1 GPZ500S 1987 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11045
110451816
ref: 11045
BRACKET,COWLING
110451816
€ 157.50
14024
140241385R1
ref: 14024
EUFGFRGRITNRSP
COVER,UPPER COWLING,L
140241385R1
€ 14.00
14024A
1402413856C
ref: 14024A
AREUFGGRITSPUK
COVER,UPPER COWLING,L
1402413856C
€ 20.50
14024B
1402413856L
ref: 14024B
COVER,UPPER COWLING,L
1402413856L
€ 11.50
14024C
140241392
ref: 14024C
COVER,INNER COWLING,R
140241392
€ 16.50
14024D
140251756
ref: 14024D
COVER,TRIM END
140251756
€ 4.50
39154
391541100
ref: 39154
WINDSHIELD
€ 246.50
53044
530441120
ref: 53044
TRIM,WINDSHIELD
530441120
€ 20.50
55028
550281145
ref: 55028
COWLING,INNER,LH
550281145
€ 30.00
55028A
550281146
ref: 55028A
COWLING,INNER,RH
550281146
€ 30.00
55028B
550285309B1
ref: 55028B
COWLING,UPP,F.RED
€ 782.00
55028C
550285310R1
ref: 55028C
EUFGFRGRITNRSP
COWLING,UPP,P.A.WHITE
€ 782.00
55028D
550285311H8
ref: 55028D
AREUFGGRITSPUK
COWLING,UPP,EBONY
€ 824.50
56001
560011248
ref: 56001
MIRROR-ASSY,LH
560011248
€ 71.50
56001A
560011249
ref: 56001A
MIRROR-ASSY,RH
560011249
€ 71.50
92009
920091301
ref: 92009
SCREW,5X16
920091301
€ 0.50
92009A
920091479
ref: 92009A
SCREW,5X15
920091479
€ 2.50
92009B
920091490
ref: 92009B
SCREW,5X12
920091490
€ 2.50
92015
920151174
ref: 92015
NUT,CAP,8MM,BLACK
920151174
€ 3.00
92015A
920151343
ref: 92015A
NUT,5MM,COWLING
920151343
€ 3.00
92015B
920151638
ref: 92015B
NUT,5MM
920151638
€ 4.00
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92075
920751492
ref: 92075
DAMPER,MIRROR
920751492
€ 5.00
92075A
920751745
ref: 92075A
DAMPER,MIRROR
920751745
€ 5.00
221
221C0630
ref: 221
SCREW-CSK-CROS,6X30
221C0630
€ 1.00
