FRONT FORK

EX500A1 GPZ500S 1987 EUROPE UK FR AR FG GR IT NR SD SP ST

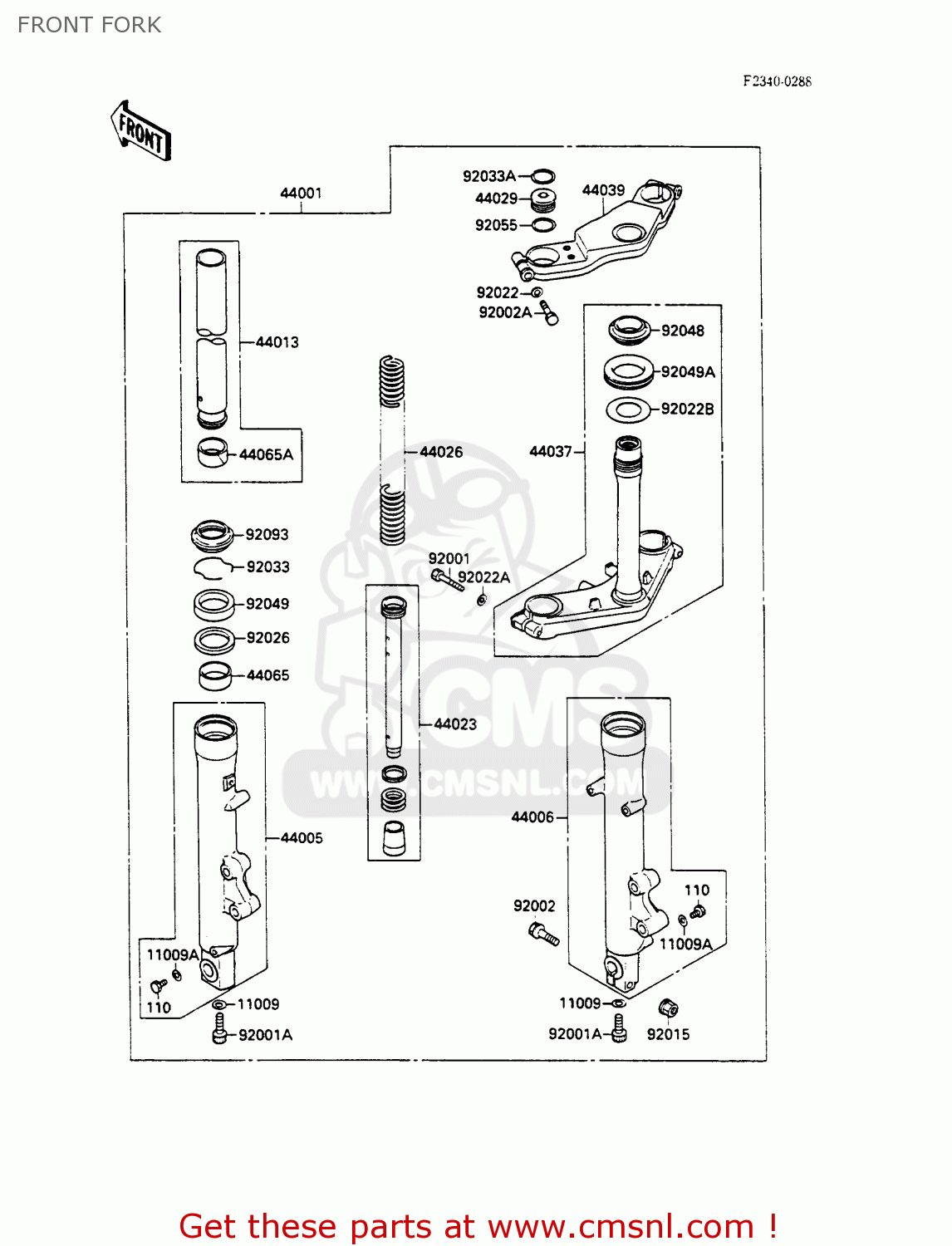

Front fork diagram EX500A1 GPZ500S 1987 EUROPE UK FR AR FG GR IT NR SD SP ST

FRONT FORK EX500A1 GPZ500S 1987 EUROPE UK FR AR FG GR IT NR SD SP ST
FRONT FORK EX500A1 GPZ500S 1987 EUROPE UK FR AR FG GR IT NR SD SP ST
FRONT FORK EX500A1 GPZ500S 1987 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
110
110B0608
ref: 110
BOLT-HEX HEAD,6X8
€ 0.50
11009
44045051
ref: 11009
GASKET,FORK CYLINDER (NAS)
44045051
€ 4.00
11009A
44045052
ref: 11009A
GASKET,DRAIN PLUG (NAS)
€ 6.00
44001
440011652
ref: 44001
FORK-FRONT
€ 1,440.00
44005
440051261
ref: 44005
PIPE-LEFT FORK OUTER
440051261
€ 202.50
44006
440061258
ref: 44006
PIPE-RIGHT FORK OUTER
440061258
€ 184.50
44013
440131262
ref: 44013
PIPE-FORK INNER
440131262
€ 120.50
44023
440231058
ref: 44023
CYLINDER-COMP-FORK
440231058
€ 82.50
44026
440261366
ref: 44026
SPRING-FRONT FORK
440261366
€ 37.50
44029
440291124
ref: 44029
SEAT-FORK SPRING
440291124
€ 29.50
44037
440371212
ref: 44037
HOLDER-FORK UNDER
440371212
€ 186.00
44039
440391161
ref: 44039
HOLDER-FORK UPPER
440391161
€ 104.50
44065
440651068
ref: 44065
BUSHING-FRONT FORK
440651068
€ 16.00
44065A
440651069
ref: 44065A
BUSHING-FRONT FORK,IN
440651069
€ 16.50
92001
920011454
ref: 92001
BOLT
920011454
€ 6.50
92001A
920011464
ref: 92001A
BOLT
920011464
€ 4.00
92002
920021159
ref: 92002
BOLT,FLANGED,8X50
920021159
€ 4.00
92002A
920021812
ref: 92002A
BOLT
€ 4.50
92015
920151408
ref: 92015
NUT,FLANGED,8MM
920151408
€ 1.00
92022
920221703
ref: 92022
WASHER,SPRING,8MM
€ 2.00
92022A
920221704
ref: 92022A
WASHER,SPRING,10MM
920221704
€ 2.00
92022B
92022231
ref: 92022B
WASHER,PLAIN
92022231
€ 3.00
92026
920261038
ref: 92026
SPACER,FORK
920261038
€ 6.50
92033
920331219
ref: 92033
RING-SNAP,FORK
€ 4.00
92033A
920331220
ref: 92033A
RING-SNAP,FORK TOP
920331220
€ 6.00
92048
92047012
ref: 92048
CONE-STRNG STM BRNG
92047012
€ 14.50
92049
920491226
ref: 92049
SEAL-OIL,FORK
920491226
€ 14.50
92049A
92056003
ref: 92049A
OIL SEAL,STEERING STM
92056003
€ 6.00
92055
920551359
ref: 92055
RING-O,FORK SPRING SE
920551359
€ 6.00
92093
920931196
ref: 92093
SEAL,FORK
920931196
€ 15.50
