HEADLIGHT(S)

EX500A1 GPZ500S 1987 EUROPE UK FR AR FG GR IT NR SD SP ST

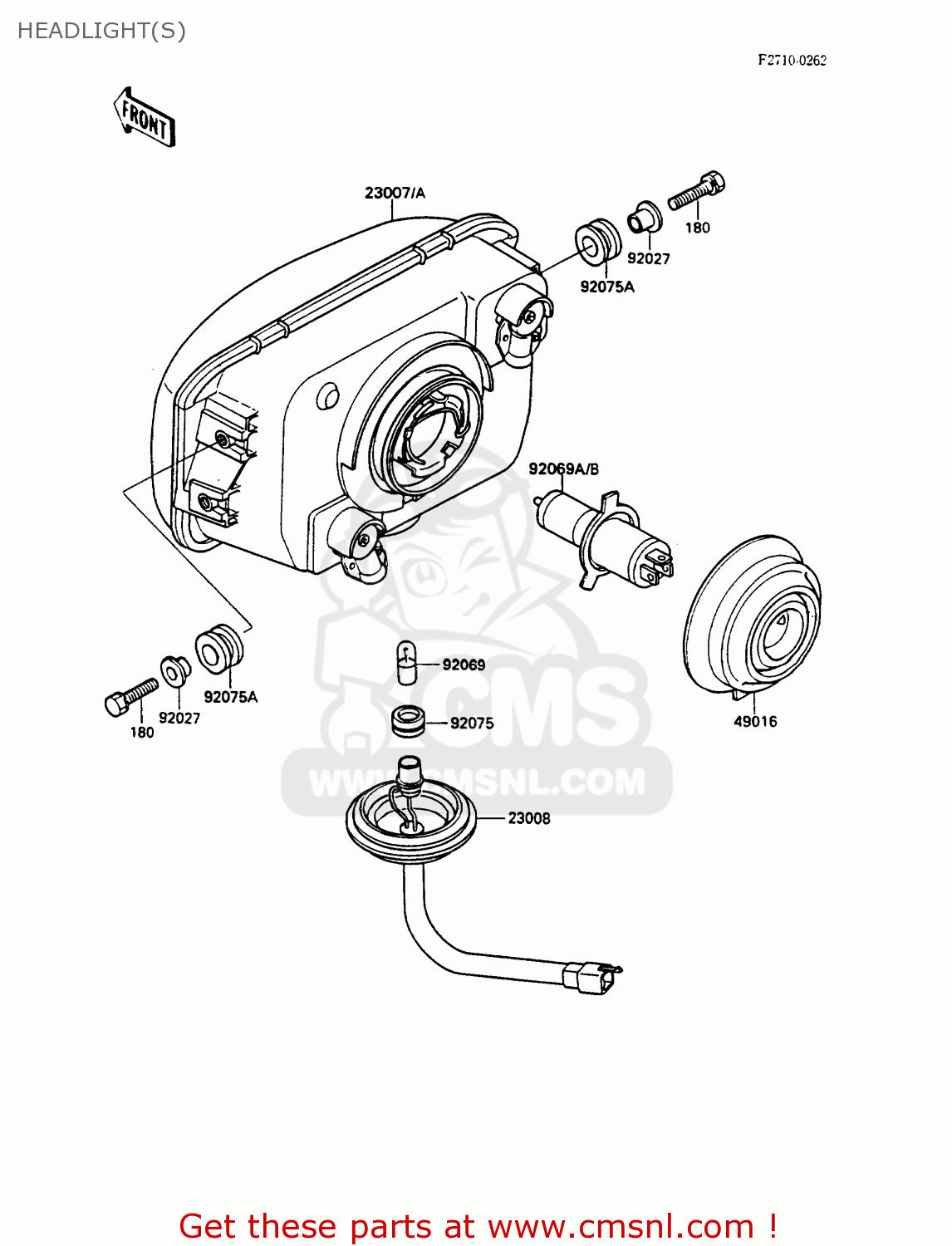

Headlight(s) diagram EX500A1 GPZ500S 1987 EUROPE UK FR AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

180

180D0625
ref: 180

BOLT-UPSET-WS,6X25

€ 2.50

23007

230071151
ref: 23007
UK

LENS-COMP,HEAD LAMP

€ 214.50

23007A

230071165
ref: 23007A
AREUFGFRGRITNRSDSPST

LENS-COMP,HEAD LAMP

€ 341.00

23008

230081268
ref: 23008

SOCKET-ASSY,HEAD LAMP

€ 15.50

49016

490161108
ref: 49016

COVER-SEAL,HEAD LAMP

€ 11.00

92027

92027251
ref: 92027

COLLAR,L=13.1

€ 1.00

92069

92069071
ref: 92069

BULB,12V 4W

€ 4.50

92069A

920691002
ref: 92069A
AREUFGGRITNRSDSPSTUK

BULB,12V-60155W

€ 15.00

92069B

920691004
ref: 92069B
FR

BULB,12V 60/55W,H4,YE

€ 15.00

92075

23066008
ref: 92075

DAMPER,PARKING LAMP

€ 3.00

92075A

920751690
ref: 92075A

DAMPER,10X24X12

€ 3.00
