TRANSMISSION
EX305B1 GPZ305 1985 USA CANADA

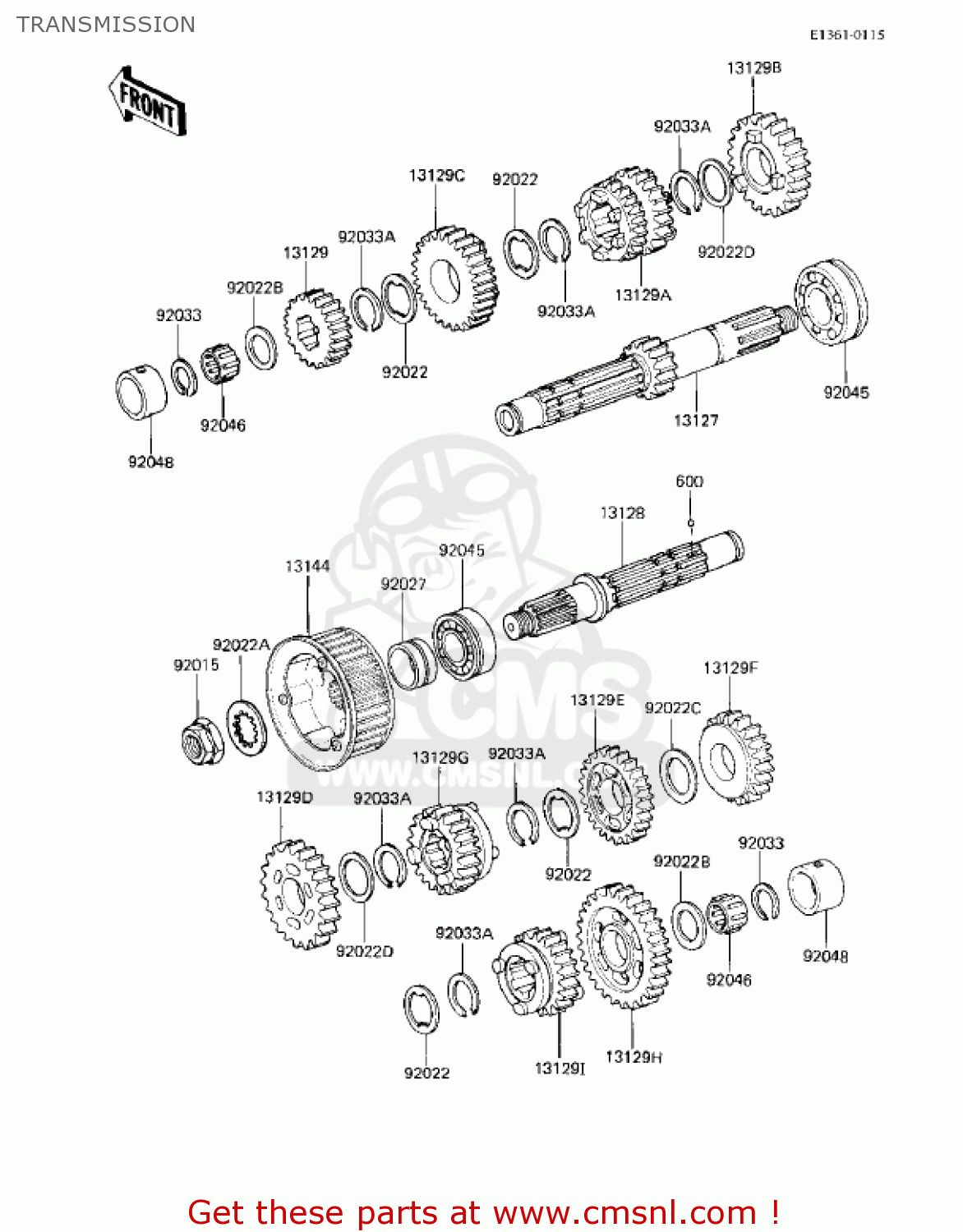

Transmission diagram EX305B1 GPZ305 1985 USA CANADA
TRANSMISSION EX305B1 GPZ305 1985 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13127
131271009
ref: 13127
SHAFT,DRIVE
€ 178.00
13128
131281053
ref: 13128
SHAFT-TRANSMISSION OU
€ 139.50
13129
131291086
ref: 13129
GEAR,INPUT 2ND,19T
€ 72.00
13129A
132601098
ref: 13129A
GEAR,INPUT 3RD&4TH,22
€ 121.00
13129B
131291088
ref: 13129B
GEAR,INPUT 5TH,27T
€ 88.00
13129C
131291089
ref: 13129C
GEAR,INPUT TOP,28T
€ 57.00
13129D
131291091
ref: 13129D
GEAR,OUTPUT 2ND,34T
€ 113.50
13129E
131291092
ref: 13129E
GEAR,OUTPUT 3RD,31T
€ 88.00
13129F
131291093
ref: 13129F
GEAR,OUTPUT 4TH,29T
€ 82.50
13129G
132601099
ref: 13129G
GEAR,OUTPUT TOP,25T
€ 112.00
13129H
131291254
ref: 13129H
GEAR,OUTPUT LOW,39T
€ 122.50
13129I
132601112
ref: 13129I
GEAR,OUTPUT 5TH,27T
€ 100.00
13144
131441138
ref: 13144
SPROCKET-OUTPUT,23T
€ 73.50
92015
920151254
ref: 92015
NUT,20MM
€ 10.50
92022
920221072
ref: 92022
WASHER,TOOTHED,25.3X3
€ 2.00
92022A
922001065
ref: 92022A
WASHER
€ 4.50
92022B
92022112
ref: 92022B
WASHER,20.5X30X1,STEE
€ 6.00
92022C
92022145
ref: 92022C
WASHER-CLUTCH THRUST
€ 4.50
92022D
92022159
ref: 92022D
WASHER-THRUST,25MM
€ 5.50
92027
920271662
ref: 92027
COLLAR,ENGINE SPROCKE
€ 9.50
92033
92033015
ref: 92033
CIRCLIP
€ 2.50
92033A
92033026
ref: 92033A
CIRCLIP
€ 6.00
92045
920451013
ref: 92045
BEARING-BALL,#6205NX3
€ 23.00
92046
92046044
ref: 92046
BEARING-NEEDLE,20R251
€ 23.00
92048
920481003
ref: 92048
RACE,NEEDLE BEARING
€ 19.50
600
600A0500
ref: 600
BALL-STEEL,5/32
€ 0.50
