FRONT FORK
EX305B1 GPZ305 1985 USA CANADA

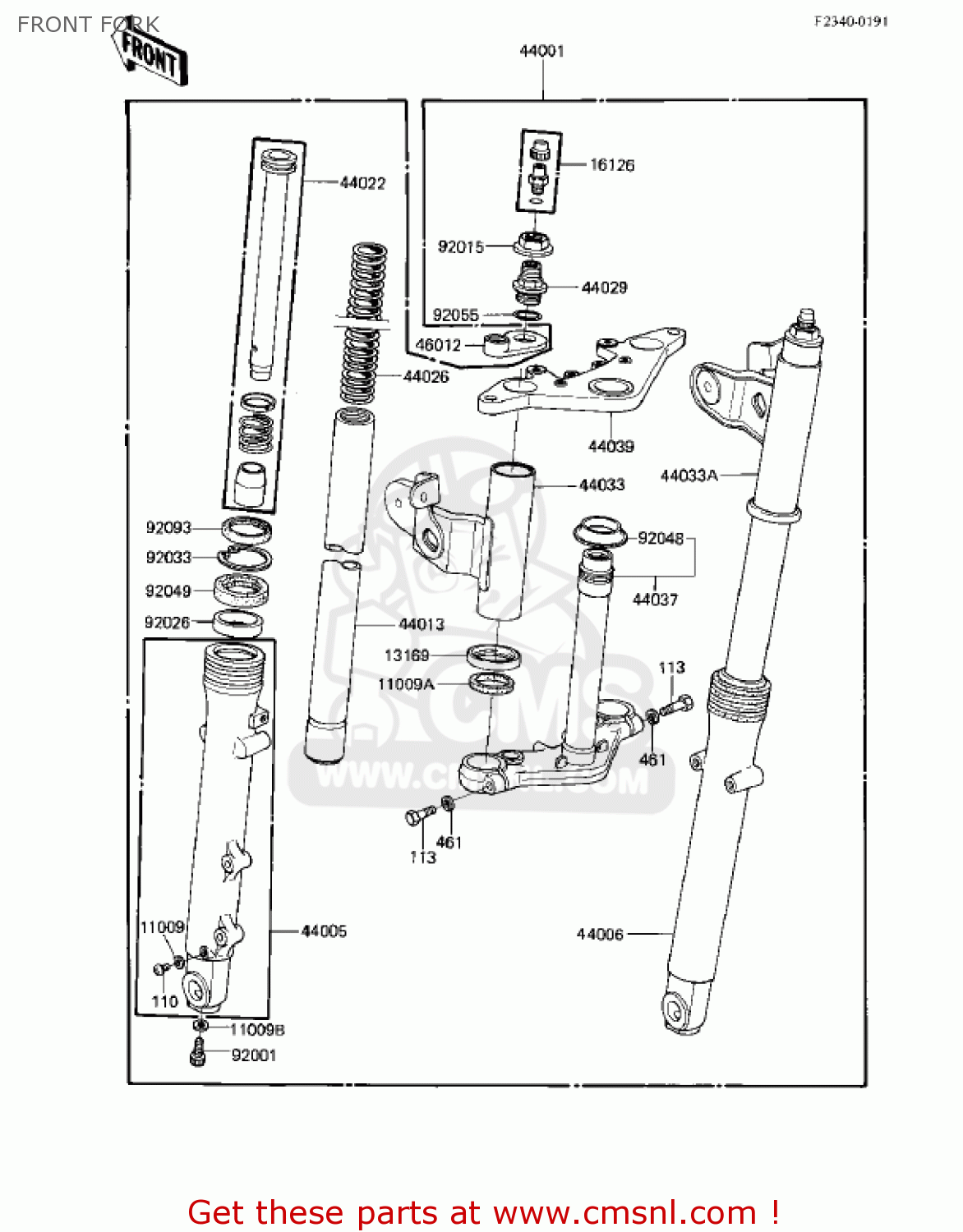

Front fork diagram EX305B1 GPZ305 1985 USA CANADA
FRONT FORK EX305B1 GPZ305 1985 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
44045047
ref: 11009
GASKET,DRAIN PLUG (NAS)
€ 6.00
11009A
44045049
ref: 11009A
GASKET,FORK COVER (NAS)
€ 3.50
11009B
44045051
ref: 11009B
GASKET,FORK CYLINDER (NAS)
€ 4.00
13169
131691842
ref: 13169
PLATE,FORK COVER,LWR
€ 9.00
16126
161261043
ref: 16126
VALVE,AIR
€ 24.50
44001
440011475
ref: 44001
FRONT FORK
€ 882.00
44005
440051145
ref: 44005
PIPE-LEFT FORK OUTER
€ 277.00
44006
440061145
ref: 44006
PIPE-RIGHT FORK OUTER
€ 251.50
44013
440131119
ref: 44013
PIPE-FORK INNER
€ 117.50
44022
440221096
ref: 44022
CYLINDER-FORK
€ 69.00
44026
440261200
ref: 44026
SPRING-FRONT FORK
€ 36.00
44029
440291050
ref: 44029
SEAT-FORK SPRING
€ 37.50
44033
440331135
ref: 44033
COVER-FORK,LH
€ 74.50
44033A
440331136
ref: 44033A
COVER-FORK,RH
€ 61.50
44037
440371107
ref: 44037
HOLDER-FORK UNDER
€ 209.00
44039
440391066
ref: 44039
HOLDER-FORK UPPER
€ 182.50
46012
460121040
ref: 46012
HOLDER-HANDLE
€ 20.50
92001
44041078
ref: 92001
BOLT, FORK CYLINDER
€ 6.50
92015
920151256
ref: 92015
NUT,FLANGED,18MM
€ 11.50
92026
920261099
ref: 92026
SPACER,FORK OUTER
€ 7.00
92033
920331078
ref: 92033
RING-SNAP,FORK OUTER
€ 3.50
92048
92047006
ref: 92048
CONE-STRNG STEM
€ 11.00
92049
920491080
ref: 92049
SEAL-OIL FORK OUTER
€ 14.00
92055
920551101
ref: 92055
0 RING FORK TOP BOLT
€ 3.50
92093
920931083
ref: 92093
SEAL,FORK OUTER TUBE
€ 16.00
110
110B0608
ref: 110
BOLT-HEX HEAD,6X8
€ 0.50
113
112C1035
ref: 113
112C1035
461
461K1000
ref: 461
461K1000
