METERS

EX305B1 GPZ305 1985 USA CANADA

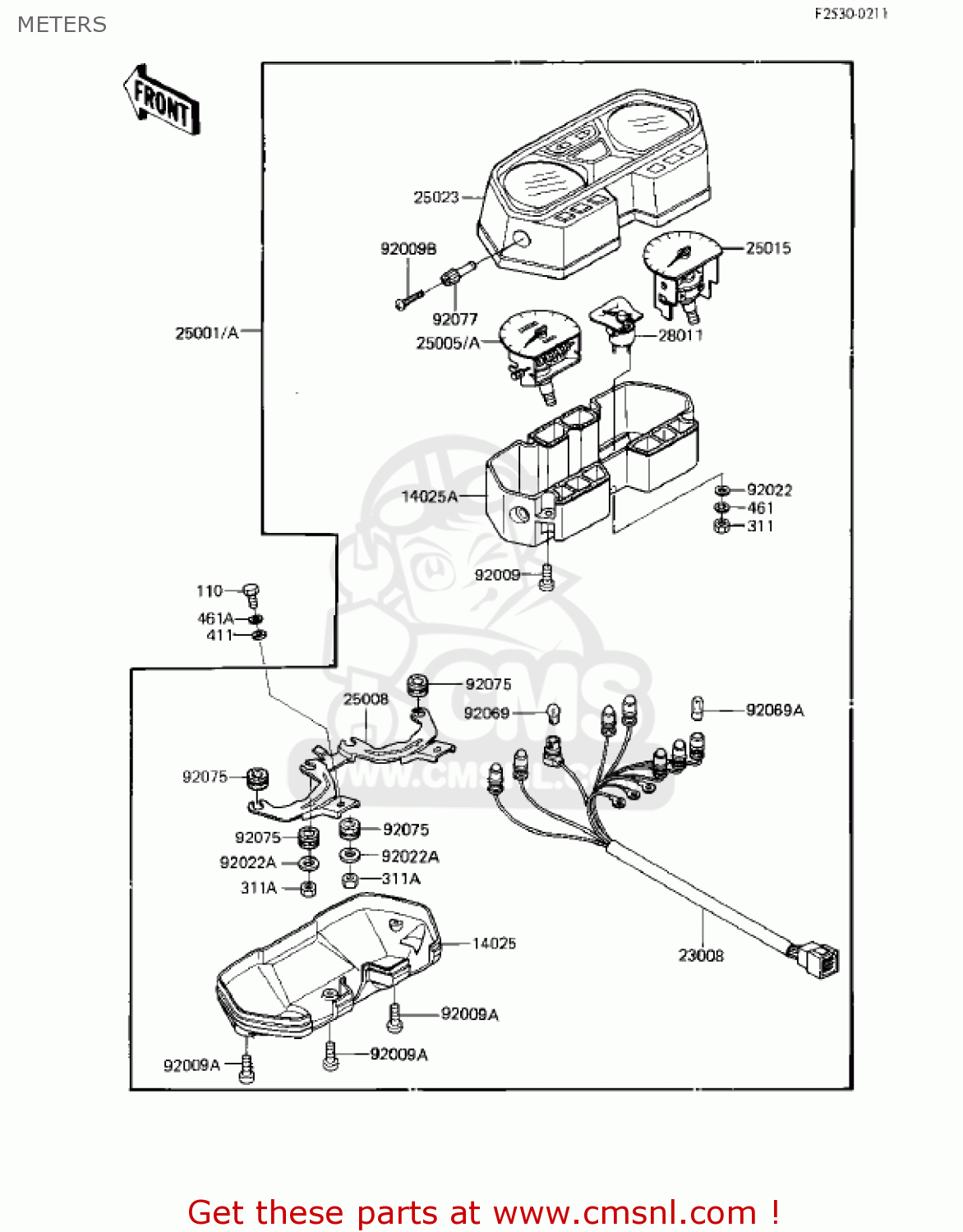

Meters diagram EX305B1 GPZ305 1985 USA CANADA

METERS EX305B1 GPZ305 1985 USA CANADA
METERS EX305B1 GPZ305 1985 USA CANADA
METERS EX305B1 GPZ305 1985 USA CANADA
prices are in EUR
ref
part #
description
quantity
14025
140251564
ref: 14025
COVER,METER CASE LWR
140251564
€ 25.00
14025A
140251604
ref: 14025A
COVER,METER CASE
€ 79.50
23008
230081183
ref: 23008
SOCKET-ASSY,METER
€ 67.00
25001
250011414
ref: 25001
US
METER ASSEMBLY,MPH
€ 552.00
25001A
250011417
ref: 25001A
CN
25001-1418 (Canada)
€ 0.00
25005
250051207
ref: 25005
US
SPEEDOMETER,MPH
€ 237.00
25005A
250051208
ref: 25005A
CN
SPEEDOMETER,KPH
€ 261.50
25008
250081052
ref: 25008
BRACKET-METER
250081052
€ 32.00
25015
250151144
ref: 25015
TACHOMETER,(X1000R/MI
€ 186.50
25023
250231052
ref: 25023
COVER-METER CASE
250231052
€ 70.00
28011
280111034
ref: 28011
METER,FUEL
280111034
€ 56.00
92009
920091163
ref: 92009
SCREW,TAPPING,4X16
920091163
€ 2.50
92009A
920091164
ref: 92009A
SCREW,TAPPING,3X16
920091164
€ 2.50
92009B
920091172
ref: 92009B
SCREW,2X6,BLACK
920091172
€ 2.00
92022
920221374
ref: 92022
WASHER,3MM
920221374
€ 2.00
92022A
92022263
ref: 92022A
WASHER,PLAIN,6MM
92022263
€ 1.50
92069
92069017
ref: 92069
BULB 12V 1.5W
92069017
€ 4.00
92069A
920691007
ref: 92069A
BULB,12V3.4W
920691007
€ 2.50
92075
920751385
ref: 92075
DAMPER,METER BRACKET
920751385
€ 3.00
92077
920771015
ref: 92077
KNOB,METER
920771015
€ 6.00
110
112B0614
ref: 110
BOLT-UPSET 6X14
112B0614
€ 2.50
311
311B0300
ref: 311
NUT-HEX
311B0300
€ 0.50
311A
311B0500
ref: 311A
NUT-HEX
311B0500
€ 0.50
411
411B0600
ref: 411
WASHER-PLAIN,6MM
411B0600
€ 0.50
461
461F0300
ref: 461
WASHER-SPRING,3MM
461F0300
€ 0.50
461A
461F0600
ref: 461A
WASHER-SPRING,6MM
461F0600
€ 0.50
