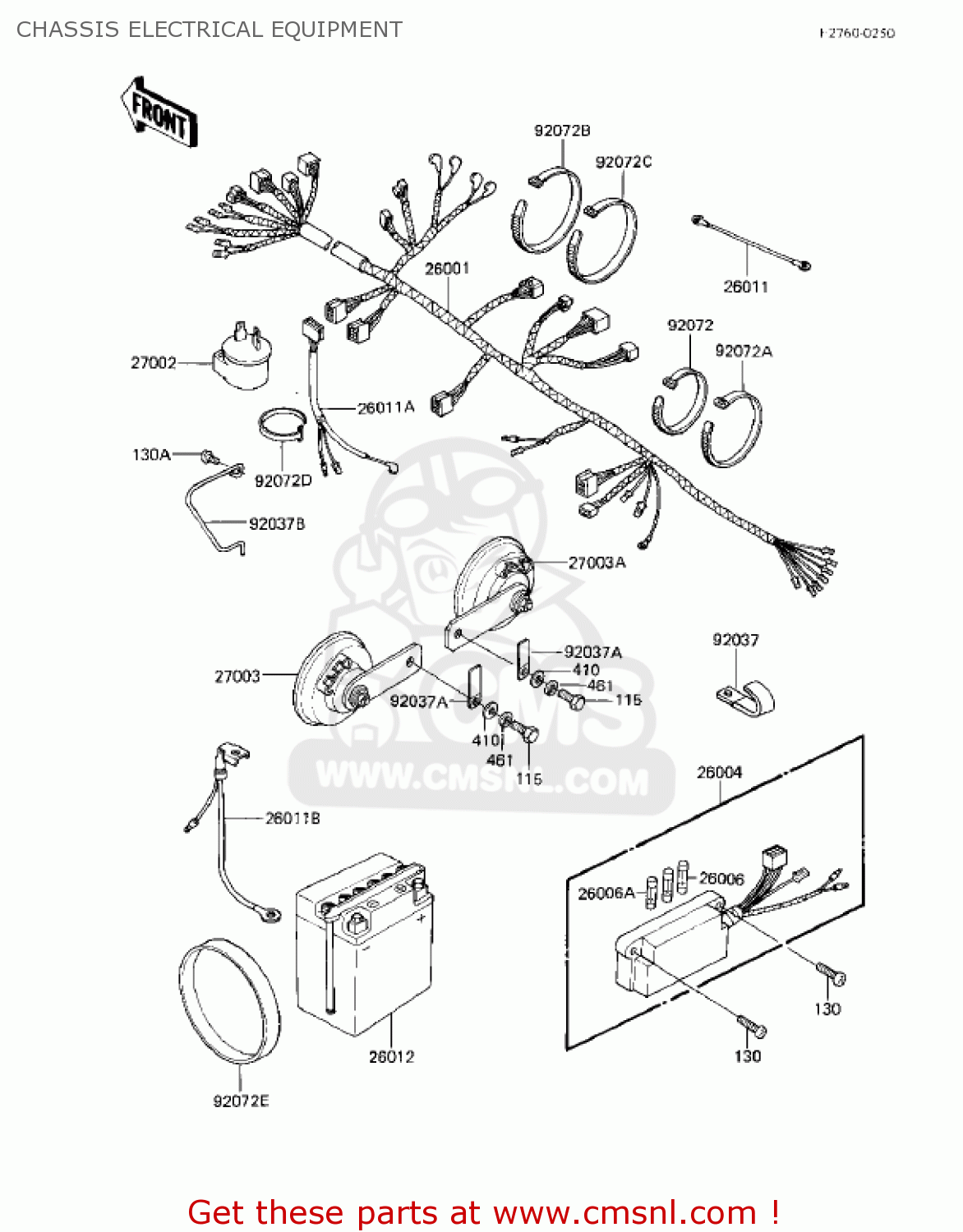

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

26001

260011551
ref: 26001

HARNESS,MAIN

€ 128.00

26004

260041026
ref: 26004

FUSE ASSEMBLY

€ 39.00

26006

26006003
ref: 26006

FUSE 10A

€ 3.00

26006A

26006005
ref: 26006A

FUSE 20A

€ 3.50

26011

260111034
ref: 26011

WIRE-LEAD,CRANKCASE G

€ 4.50

26011A

260111196
ref: 26011A

WIRE-LEAD,SIDE STAND

€ 10.50

26011B

260111252
ref: 26011B

WIRE-LEAD,BATTERY GRO

€ 10.50

26012

260121078
ref: 26012

BATTERY

€ 60.00

27002

27002011
ref: 27002

RELAY-ASSY,TURN SIGNA

€ 69.50

27003

270031057
ref: 27003

HORN,LH

€ 62.00

27003A

270031058
ref: 27003A

HORN,RH

€ 32.50

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92037A

92037113
ref: 92037A

CLAMP

€ 4.00

92037B

920371451
ref: 92037B

CLAMP,HARNESS&CLUTCH

€ 6.00

92072

92072030
ref: 92072

BAND,SHORT

€ 3.00

92072A

92072031
ref: 92072A

BAND,MIDDLE

€ 3.00

92072B

92072032
ref: 92072B

BAND,LONG

€ 3.00

92072C

92072056
ref: 92072C

BAND,RUBBER

€ 3.00

92072D

92072067
ref: 92072D

BAND,L=95

€ 2.50

92072E

920721020
ref: 92072E

BAND,BATTERY

€ 7.00

115

115C0816
ref: 115

BOLT-SMALL,8X16,BLACK

€ 2.00

130

130B0620
ref: 130

BOLT,HEX HEAD,6X20

€ 2.50

130A

130C0612
ref: 130A

BOLT-FLANGED,6X12

€ 1.50

410

920221554
ref: 410

WASHER,PLAIN,8MM

€ 3.00

461

461K0800
ref: 461

WASHER-SPRING,8MM,BLA

€ 1.50
