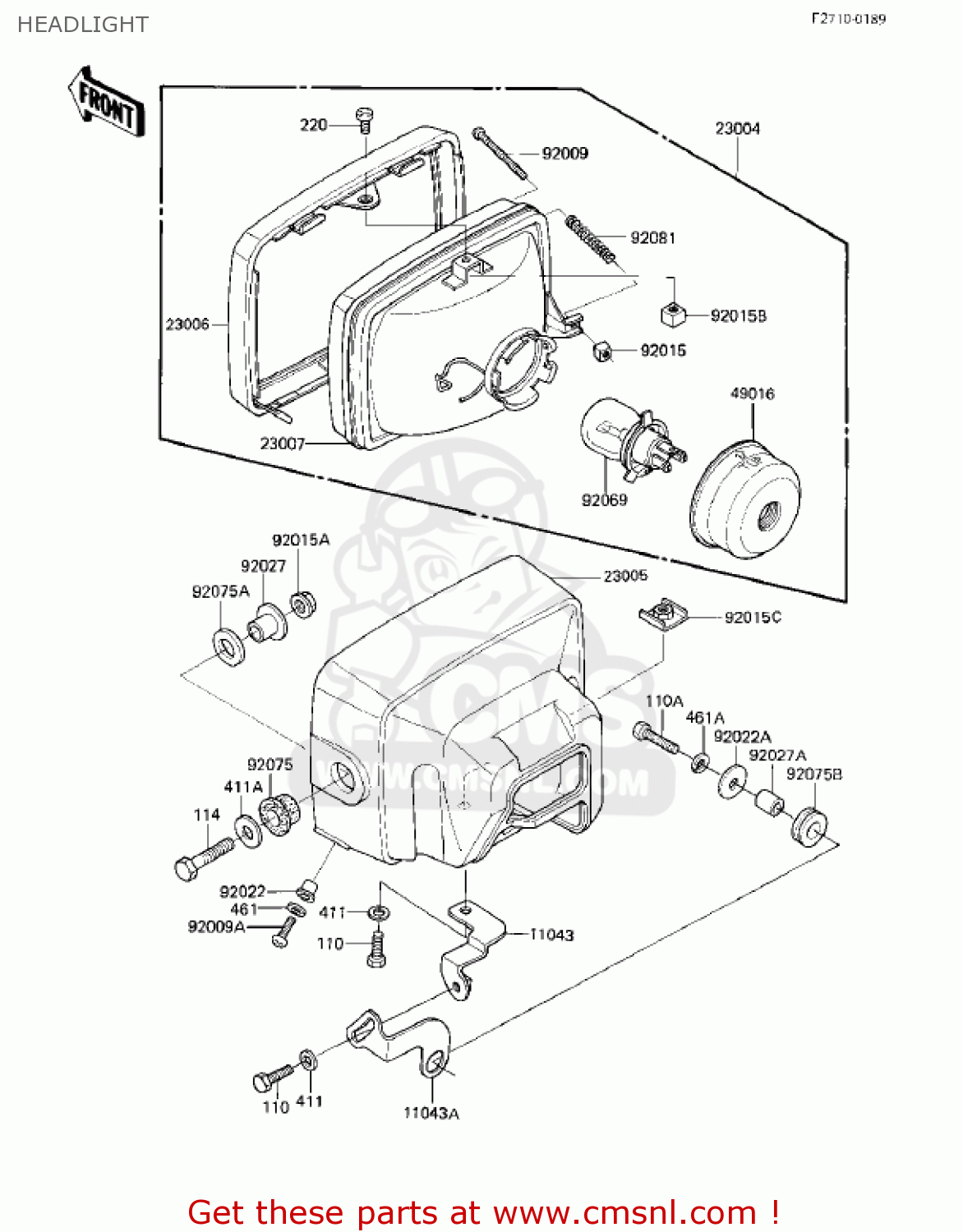

HEADLIGHT

ref

part #

description

quantity

11043

110431029
ref: 11043

BRACKET-B

€ 6.00

11043A

110431030
ref: 11043A

BRACKET-B

€ 7.00

23004

230041109
ref: 23004

HEADLAMP

€ 213.00

23005

2300510306Z
ref: 23005

BODY-COMP-HEAD LAMP

€ 55.00

23006

230061022
ref: 23006

RIM-LAMP,HEAD

€ 60.00

23007

230071058
ref: 23007

HEADLAMP LENS,COMPLETE

€ 100.00

49016

490161046
ref: 49016

COVER-SEAL,HEAD LAMP

€ 7.50

92009

920091033
ref: 92009

SCREW,FOCUS ADJUSTING

€ 3.50

92009A

92011024
ref: 92009A

SCREW-PAN HEAD,5MM

€ 2.00

92015

23020018
ref: 92015

NUT,4MM,FOCUS ADJUST

€ 3.00

92015A

920151014
ref: 92015A

NUT,8MM

€ 0.50

92015B

920151157
ref: 92015B

NUT,5MM

€ 3.50

92015C

920151231
ref: 92015C

NUT,6MM,HEAD LAMP

€ 6.50

92022

23021010
ref: 92022

WASHER

€ 2.50

92022A

92022125
ref: 92022A

WASHER,6.5X20X1.6

€ 1.00

92027

920271131
ref: 92027

COLLAR,HEAD LAMP FITT

€ 6.00

92027A

92027162
ref: 92027A

COLLAR-REAR FENDER

€ 4.50

92069

920691018
ref: 92069

BULB,12V,50/40W

€ 11.50

92075A

920751110
ref: 92075A

DAMPER,HEAD LAMP FITT

€ 3.00

92075B

92075209
ref: 92075B

DAMPER RUBBER

€ 3.00

92081

920811103
ref: 92081

SPRING,HEAD LAMP LENS

€ 3.00

110

112B0614
ref: 110

BOLT-UPSET 6X14

€ 2.50

110A

112G0625
ref: 110A

BOLT-UPSET,6X25

€ 4.00

114

114C0835
ref: 114

BOLT-SMALL,8X35,BLACK

€ 1.50

220

220B0510
ref: 220

SCREW-PAN-CROS,5X10

€ 0.50

411

411B0600
ref: 411

WASHER-PLAIN,6MM

€ 0.50

411A

411F0800
ref: 411A

WASHER-PLAIN,8MM,BLAC

€ 1.00

461

461F0500
ref: 461

WASHER-SPRING,5MM

€ 0.50

461A

461F0600
ref: 461A

WASHER-SPRING,6MM

€ 0.50

all assemblies
