TAILLIGHT(S)
EX250H2 ZZR250 1991 EUROPE UK AR GR NR

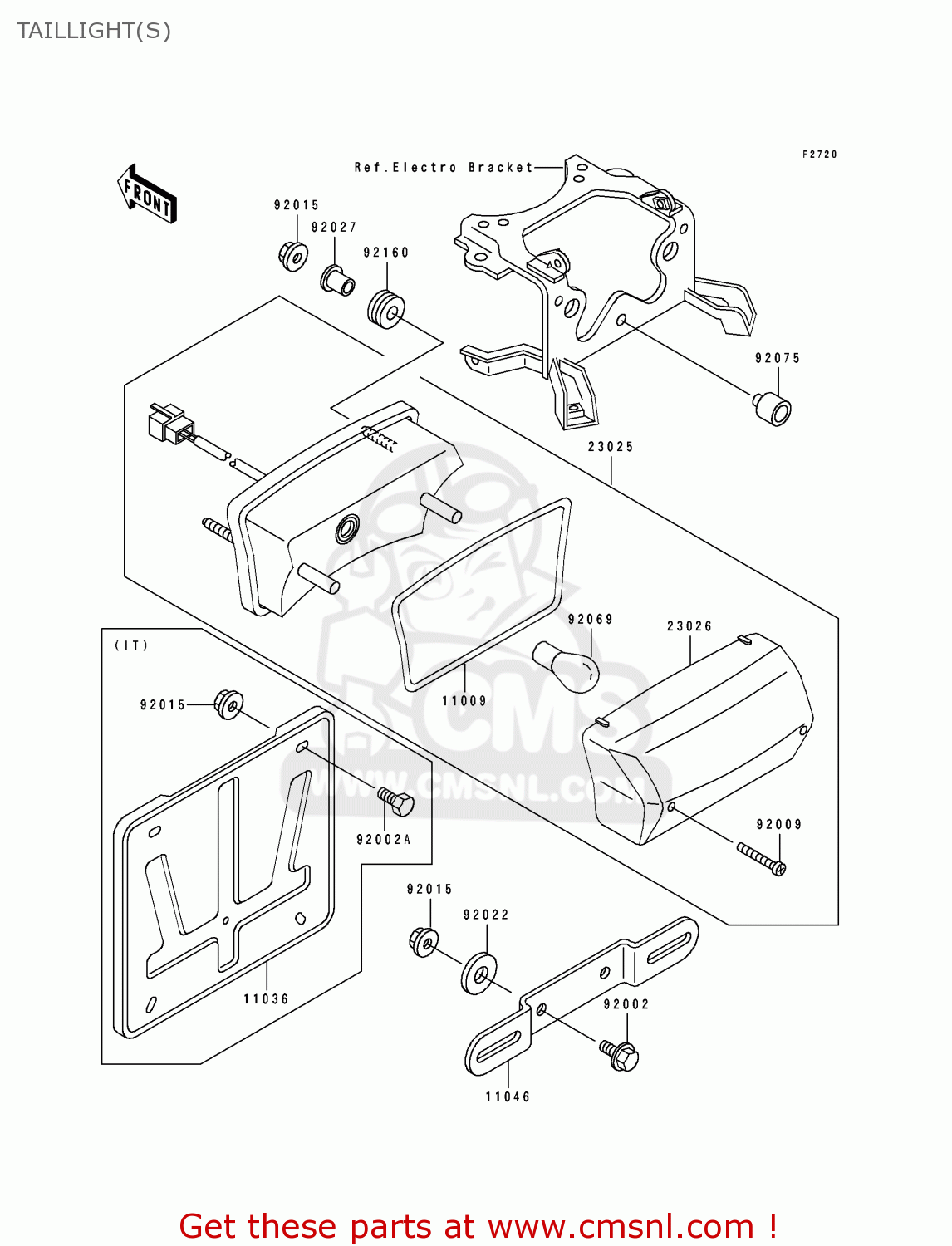

Taillight(s) diagram EX250H2 ZZR250 1991 EUROPE UK AR GR NR
TAILLIGHT(S) EX250H2 ZZR250 1991 EUROPE UK AR GR NR
×
prices are in EUR
ref
part #
description
quantity
11009
110091889
ref: 11009
GASKET,TAIL LAMP LENS (NAS)
€ 7.00
11046
110461109
ref: 11046
BRACKET,LICENSE PLATE
€ 13.00
23025
230251209
ref: 23025
LAMP-TAIL
€ 128.00
23026
230261120
ref: 23026
LENS,TAIL LAMP
€ 43.00
92002
920021124
ref: 92002
BOLT,6X16
€ 2.50
92009
920091506
ref: 92009
SCREW,TAPPING,4X30
€ 2.50
92015
920151367
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92022
920221557
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92027
92027251
ref: 92027
COLLAR,L=13.1
€ 1.00
92069
92069063
ref: 92069
BULB 12V 21/5W
€ 4.50
92075
92075035
ref: 92075
DAMPER
€ 3.00
92160
921601162
ref: 92160
DAMPER
€ 3.00
