CYLINDER HEAD COVER

EX250H2 ZZR250 1991 EUROPE UK AR GR NR

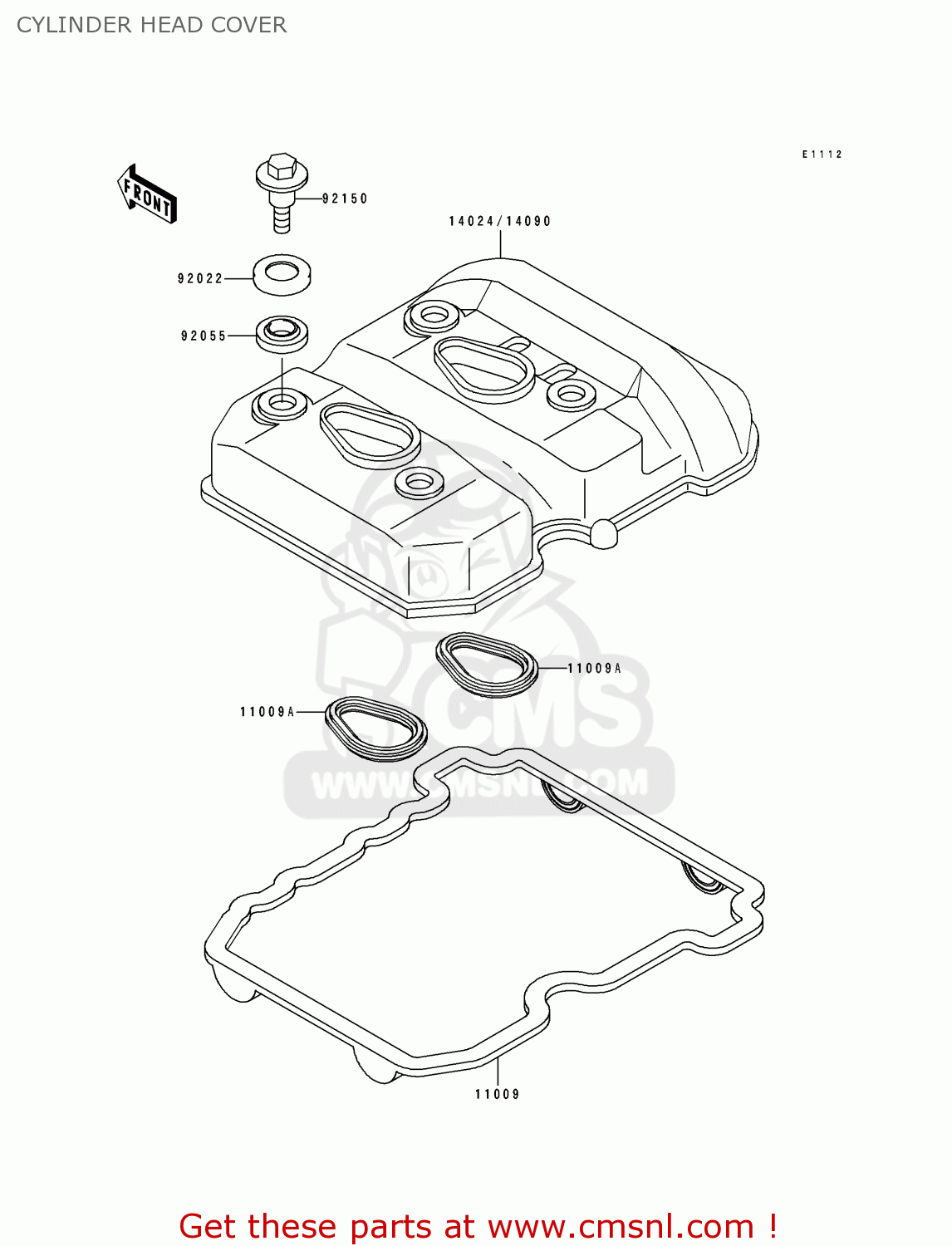

Cylinder head cover diagram EX250H2 ZZR250 1991 EUROPE UK AR GR NR

CYLINDER HEAD COVER EX250H2 ZZR250 1991 EUROPE UK AR GR NR

CYLINDER HEAD COVER EX250H2 ZZR250 1991 EUROPE UK AR GR NR

prices are in EUR

ref

part #

description

quantity

11009

110091574
ref: 11009

GASKET,CYLINDER HEAD (NAS)

€ 35.00

11009A

110091575
ref: 11009A

GASKET (NAS)

€ 5.50

14024

140241523
ref: 14024

COVER,CYLINDER HEAD

€ 266.00

92022

920221637
ref: 92022

WASHER,HEAD COVER BOL

€ 3.50

92055

920551225
ref: 92055

RING-O,HEAD COVER BOL

€ 4.50

92150

921501447
ref: 92150

BOLT

€ 3.00
