REAR BRAKE
EX250H2 ZZR250 1991 EUROPE UK AR GR NR

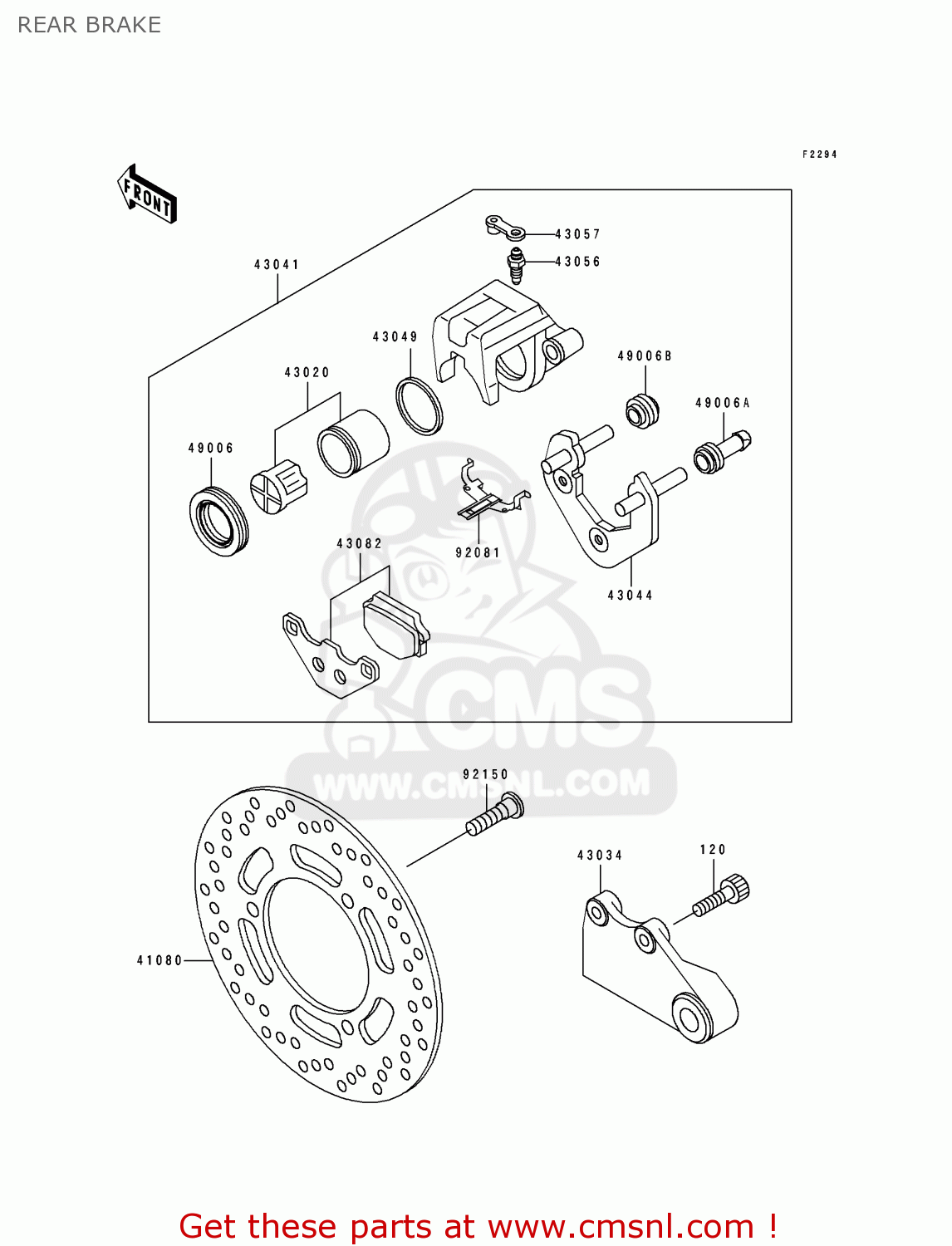

Rear brake diagram EX250H2 ZZR250 1991 EUROPE UK AR GR NR
REAR BRAKE EX250H2 ZZR250 1991 EUROPE UK AR GR NR
×
prices are in EUR
ref
part #
description
quantity
120
120P0816
ref: 120
BOLT-SOCKET
€ 2.50
41080
410801279CM
ref: 41080
DISC,RR,SILVER NO.1
€ 173.00
43020
430201084
ref: 43020
PISTON-COMP-BRAKE
€ 44.50
43034
430341107GD
ref: 43034
HOLDER-BRAKE,RR CALIP
€ 98.50
43041
430411384FE
ref: 43041
CALIPER-ASSY,RR,M.F.G
€ 380.00
43044
430441028
ref: 43044
HOLDER-COMP-CALIPER
€ 121.50
43049
430491016
ref: 43049
PACKING,CALIPER (NAS)
€ 7.50
43056
430561054
ref: 43056
BREATHER-BRAKE
€ 16.50
43057
43057003
ref: 43057
CAP-BREATHER
€ 3.00
43082
430821116
ref: 43082
PAD-ASSY-BRAKE (NAS)
€ 42.50
49006
490061053
ref: 49006
BOOT,PISTON SEAL
€ 14.00
49006A
490061054
ref: 49006A
BOOT,CALIPER
€ 8.00
49006B
490061055
ref: 49006B
BOOT,CALIPER
€ 4.50
92081
920811341
ref: 92081
SPRING
€ 10.00
92150
921501728
ref: 92150
BOLT,DISC PLATE,8X30
€ 3.00
