FRONT BRAKE
EX250H2 ZZR250 1991 EUROPE UK AR GR NR

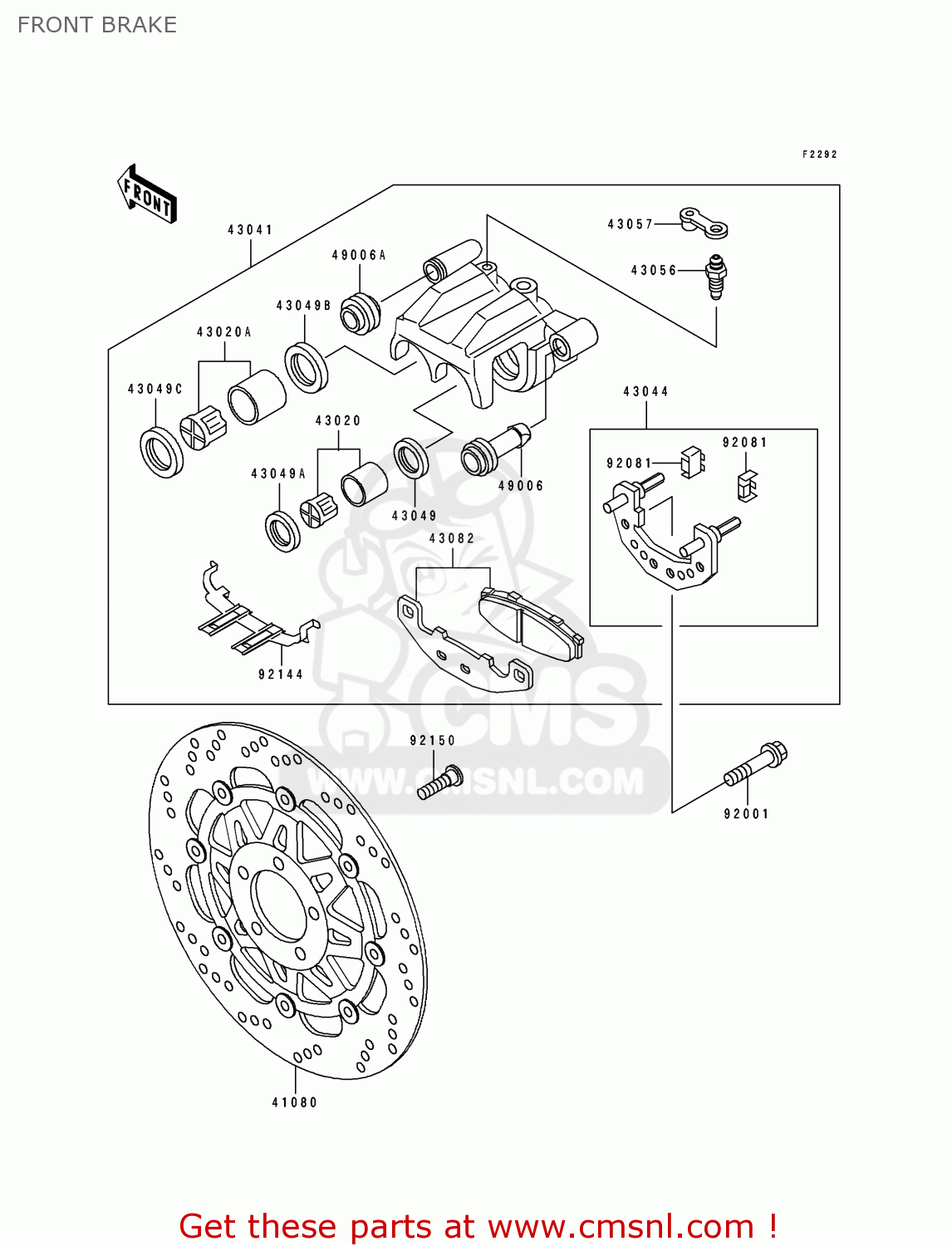

Front brake diagram EX250H2 ZZR250 1991 EUROPE UK AR GR NR
FRONT BRAKE EX250H2 ZZR250 1991 EUROPE UK AR GR NR
×
prices are in EUR
ref
part #
description
quantity
41080
410801297CM
ref: 41080
DISC,FR,RH,SILVER NO.
€ 228.50
43020
430201068
ref: 43020
PISTON-COMP-BRAKE
€ 49.00
43020A
430201069
ref: 43020A
PISTON-COMP-BRAKE
€ 49.00
43041
430411383FE
ref: 43041
CALIPER-ASSY,FR,RH,M.
€ 409.50
43044
430441067
ref: 43044
HOLDER-COMP-CALIPER
€ 126.00
43049
430491054
ref: 43049
PACKING,PISTON SEAL (NAS)
€ 9.00
43049A
430491055
ref: 43049A
PACKING,PISTON (NAS)
€ 7.50
43049B
430491056
ref: 43049B
PACKING,PISTON SEAL (NAS)
€ 9.00
43049C
430491057
ref: 43049C
PACKING,PISTON (NAS)
€ 8.00
43056
430561054
ref: 43056
BREATHER-BRAKE
€ 16.50
43057
43057003
ref: 43057
CAP-BREATHER
€ 3.00
43082
430821114
ref: 43082
PAD-ASSY-BRAKE (NAS)
€ 42.50
49006
490061094
ref: 49006
BOOT,CALIPER
€ 8.00
49006A
490061095
ref: 49006A
BOOT,CALIPER
€ 4.50
92001
920011901
ref: 92001
BOLT,SOCKET,10X33
€ 6.50
92081
920811661
ref: 92081
SPRING,PAD STOPPER
€ 7.50
92144
921441070
ref: 92144
SPRING,PAD
€ 18.50
92150
921501728
ref: 92150
BOLT,DISC PLATE,8X30
€ 3.00
