ENGINE COVER(S)

EX250H2 ZZR250 1991 EUROPE UK AR GR NR

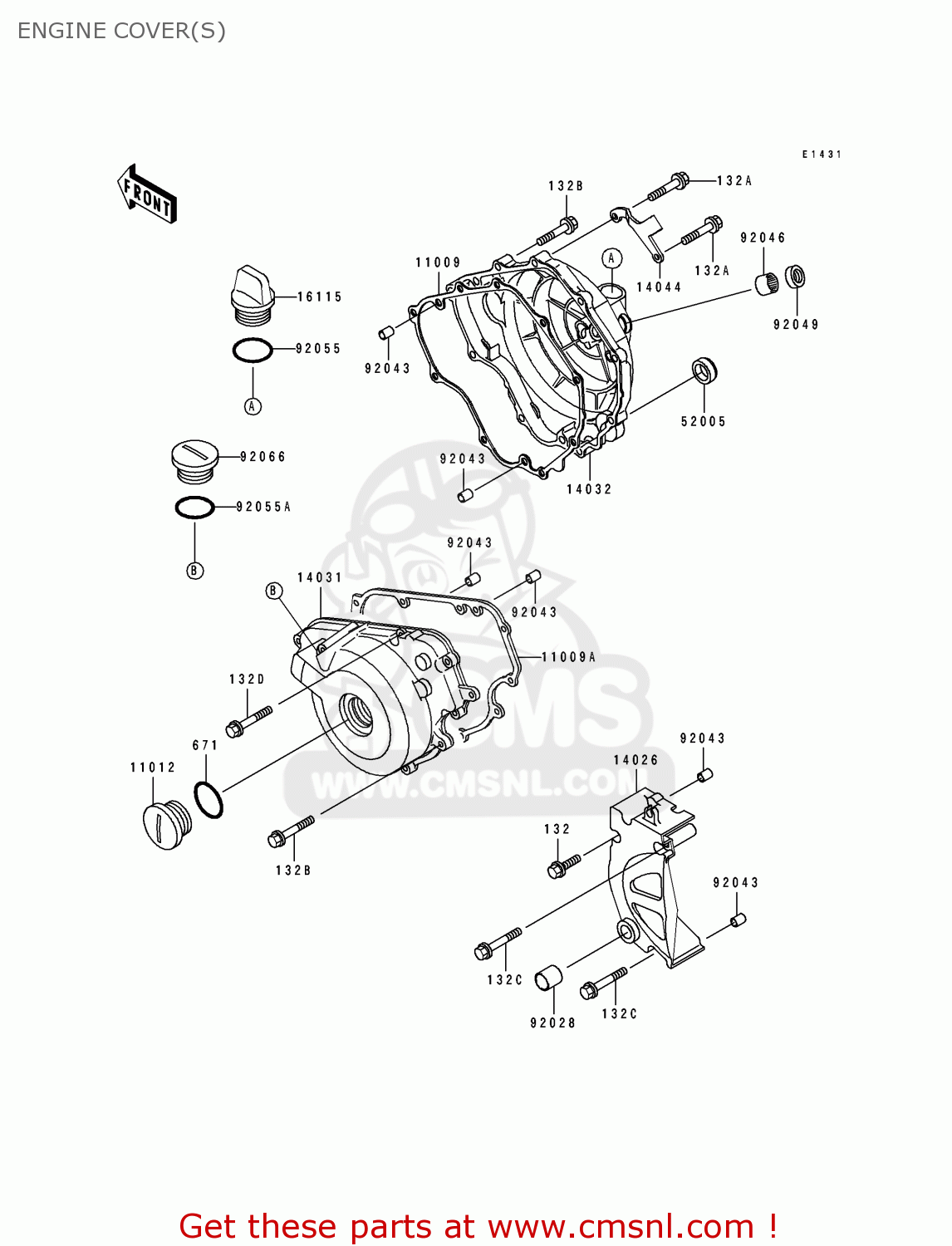

Engine cover(s) diagram EX250H2 ZZR250 1991 EUROPE UK AR GR NR

ENGINE COVER(S) EX250H2 ZZR250 1991 EUROPE UK AR GR NR

ENGINE COVER(S) EX250H2 ZZR250 1991 EUROPE UK AR GR NR

prices are in EUR

ref

part #

description

quantity

132

132E0620
ref: 132

BOLT-FLANGED-SMALL

€ 2.00

132A

132E0625
ref: 132A

BOLT-FLANGED-SMALL

€ 3.00

132B

132E0630
ref: 132B

BOLT-FLANGED-SMALL

€ 3.00

132C

132E0650
ref: 132C

BOLT-FLANGED-SMALL

€ 3.00

132D

132E0675
ref: 132D

BOLT-FLANGED-SMALL

€ 3.00

671

671B2540
ref: 671

O RING,40MM

€ 4.00

11009

110091872
ref: 11009

GASKET,CLUTCH COVER (NAS)

€ 18.00

11009A

110091873
ref: 11009A

GASKET,GENERATOR (NAS)

€ 11.00

11012

110121362
ref: 11012

CAP

€ 6.00

14026

140261161
ref: 14026

COVER-CHAIN

€ 139.00

14031

140311248
ref: 14031

COVER-GENERATOR

€ 153.50

14032

140321287
ref: 14032

COVER-CLUTCH

€ 172.00

14044

140441069
ref: 14044

HOLDER-CABLE

€ 8.50

16115

161151009
ref: 16115

CAP-OIL FILLER

€ 10.00

52005

520051009
ref: 52005

GAUGE,OIL LEVEL

€ 12.00

92028

920281710
ref: 92028

BUSHING

€ 5.50

92043

920431263
ref: 92043

PIN,DOWEL,6.2X8X14

€ 0.50

92046

920461010
ref: 92046

BEARING-NEEDLE,HK1210

€ 17.00

92049

920491271
ref: 92049

SEAL, OIL

€ 7.00

92055

92055049
ref: 92055

'0'RING,31MM

€ 2.50

92055A

920551146
ref: 92055A

RING-O

€ 5.50

92066

920661163
ref: 92066

PLUG,COVER,LH

€ 10.00
