VALVE(S)

EX250F3 NINJA 250R 1989 USA CALIFORNIA CANADA

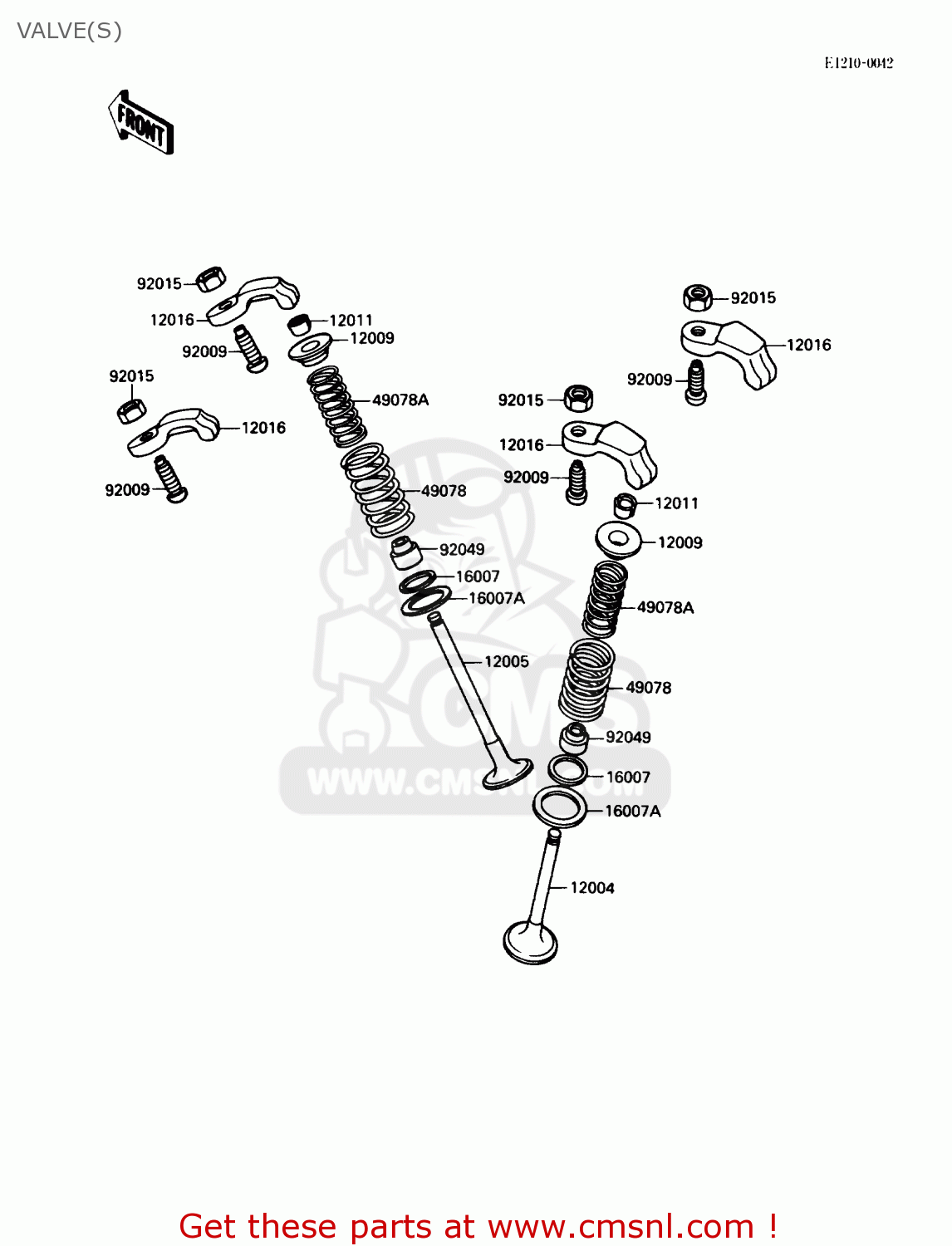

Valve(s) diagram EX250F3 NINJA 250R 1989 USA CALIFORNIA CANADA

VALVE(S) EX250F3 NINJA 250R 1989 USA CALIFORNIA CANADA

VALVE(S) EX250F3 NINJA 250R 1989 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

12004

120041074
ref: 12004

VALVE-INTAKE

€ 34.50

12005

120051091
ref: 12005

VALVE-EXHAUST

€ 29.50

12009

120091060
ref: 12009

RETAINER-VALVE SPRING

€ 7.00

12011

120111051
ref: 12011

COLLET

€ 1.50

12016

120161067
ref: 12016

ARM-ROCKER

€ 62.00

16007

160071143
ref: 16007

SEAT-SPRING

€ 3.50

16007A

160071144
ref: 16007A

SEAT-SPRING

€ 4.00

49078

490781078
ref: 49078

SPRING-ENGINE VALVE

€ 11.00

49078A

490781079
ref: 49078A

SPRING-ENGINE VALVE

€ 10.00

92009

920091424
ref: 92009

SCREW,6MM

€ 10.00

92015

920151586
ref: 92015

NUT,6MM

€ 4.00

92049

920491218
ref: 92049

SEAL-OIL,VSB58.558

€ 3.50
