CYLINDER HEAD

EX250F3 NINJA 250R 1989 USA CALIFORNIA CANADA

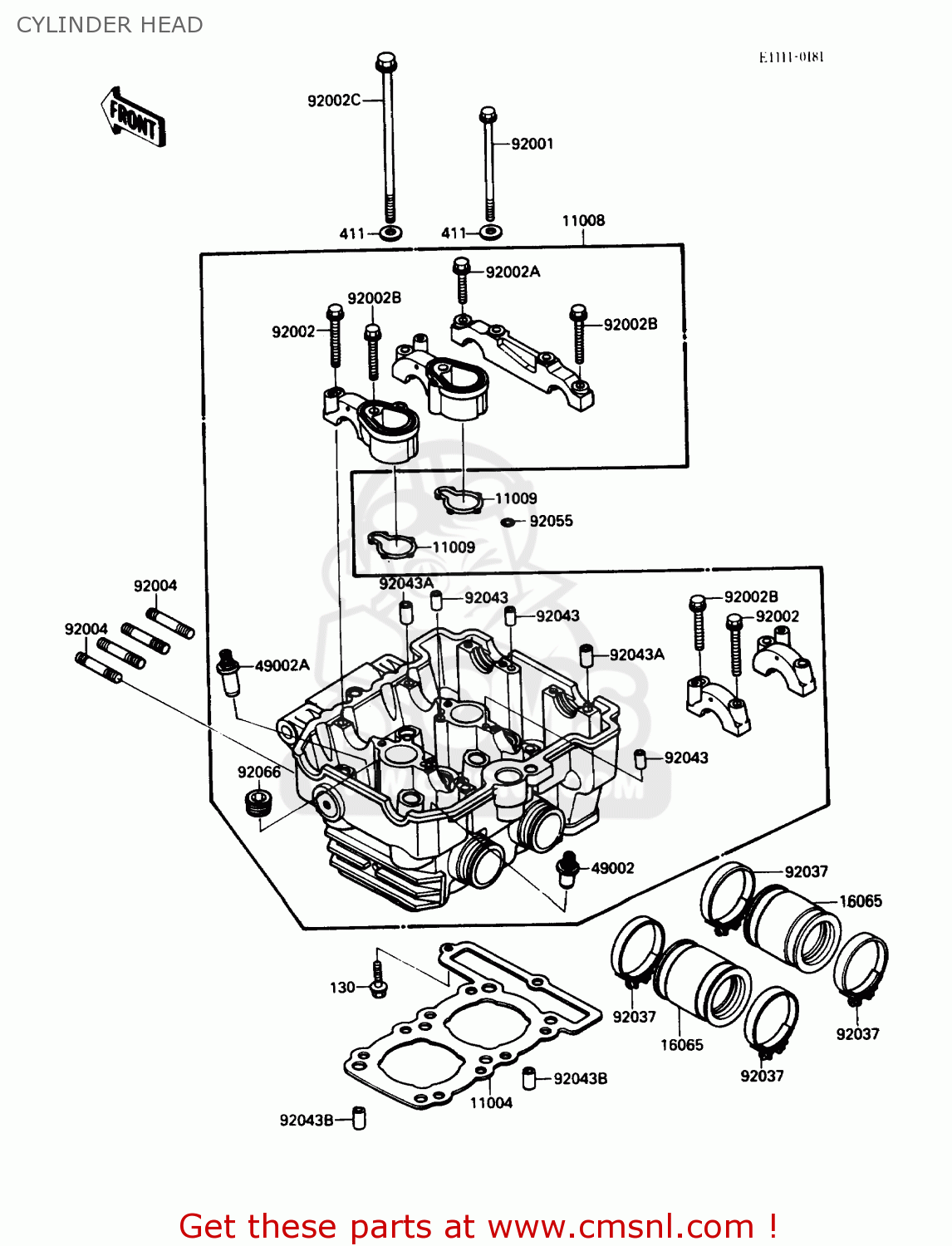

Cylinder head diagram EX250F3 NINJA 250R 1989 USA CALIFORNIA CANADA

CYLINDER HEAD EX250F3 NINJA 250R 1989 USA CALIFORNIA CANADA
CYLINDER HEAD EX250F3 NINJA 250R 1989 USA CALIFORNIA CANADA
CYLINDER HEAD EX250F3 NINJA 250R 1989 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130J0625
ref: 130
BOLT-FLANGED,6X25
130J0625
€ 2.00
411
411B0800
ref: 411
WASHER-PLAIN,8MM
411B0800
€ 0.50
11004
110041150
ref: 11004
GASKET-HEAD
€ 29.50
11008
110081201
ref: 11008
HEAD-COMP-CYLINDER
€ 1,207.50
11009
110091573
ref: 11009
GASKET,CAMSHAFT BRAKE (NAS)
110091573
€ 5.00
16065
160651156
ref: 16065
HOLDER-CARBURETOR
160651156
€ 21.00
49002
490021070
ref: 49002
GUIDE-VALVE,INTAKE
490021070
€ 27.00
49002A
490021071
ref: 49002A
GUIDE-VALVE,EXHAUST
490021071
€ 27.00
92001
920011481
ref: 92001
BOLT,8X115
920011481
€ 8.00
92002
920011872
ref: 92002
BOLT,6X46
920011872
€ 2.50
92002A
920021755
ref: 92002A
BOLT,6X30
920021755
€ 2.50
92002B
920021756
ref: 92002B
BOLT,6X40
920021756
€ 3.00
92002C
920021832
ref: 92002C
BOLT,8X146
920021832
€ 8.00
92004
92004066
ref: 92004
STUD, 6X27
92004066
€ 3.50
92037
920371326
ref: 92037
CLAMP
920371326
€ 5.50
92043
920431262
ref: 92043
PIN,DOWEL,4.2X6X12
920431262
€ 2.50
92043A
920431263
ref: 92043A
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92043B
920431264
ref: 92043B
PIN,DOWEL,8.2X10X14
920431264
€ 0.50
92055
920551339
ref: 92055
RING-O,5.5X1.5
920551339
€ 3.00
92066
920661253
ref: 92066
PLUG,PT1/2X12.5
920661253
€ 6.50
