IGNITION SYSTEM

EX250F3 NINJA 250R 1989 USA CALIFORNIA CANADA

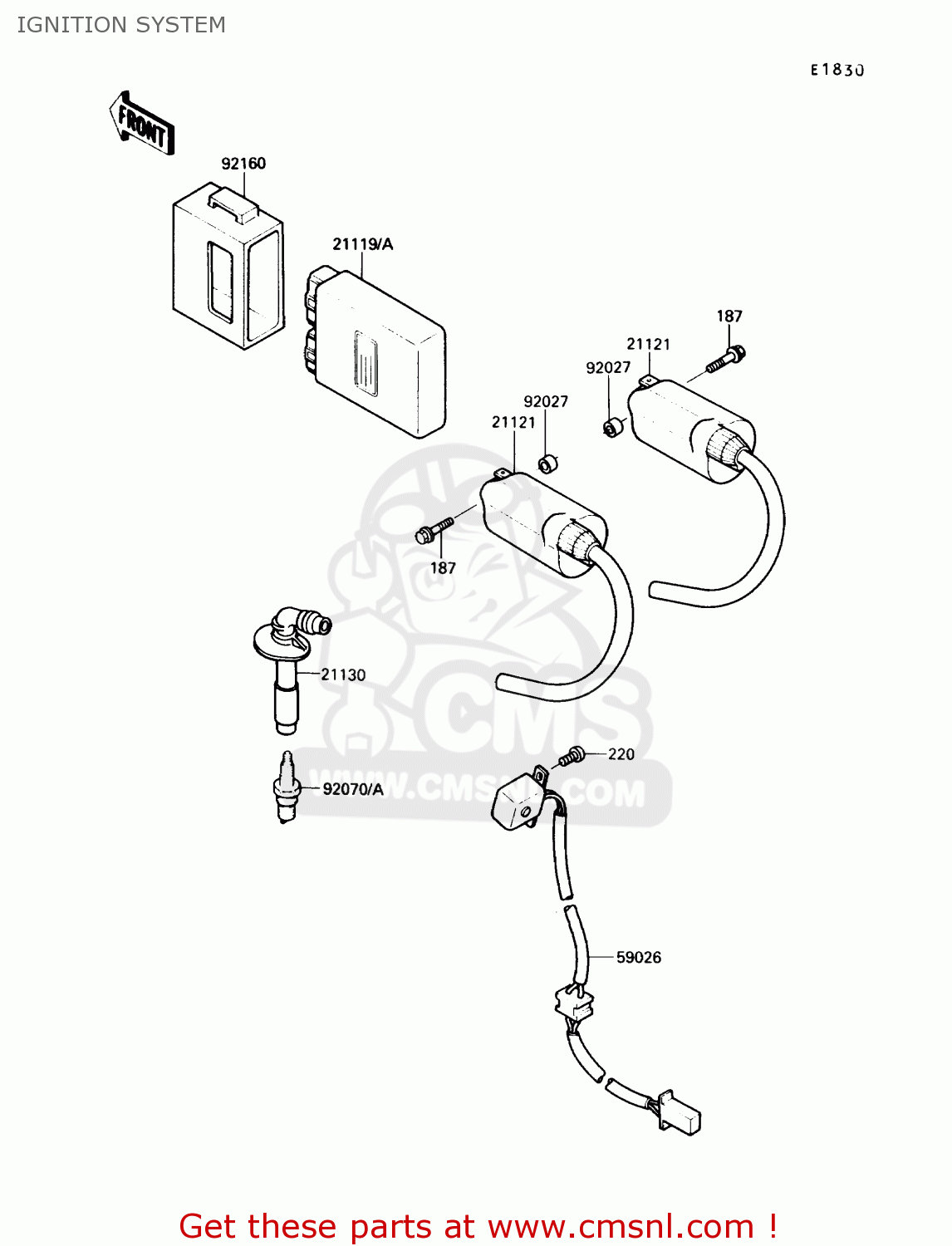

Ignition system diagram EX250F3 NINJA 250R 1989 USA CALIFORNIA CANADA

IGNITION SYSTEM EX250F3 NINJA 250R 1989 USA CALIFORNIA CANADA

IGNITION SYSTEM EX250F3 NINJA 250R 1989 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

187

187G0625
ref: 187

BOLT-UPSET-WSP

€ 2.50

220

220B0510
ref: 220

SCREW-PAN-CROS,5X10

€ 0.50

21119

211191229
ref: 21119
CNUS

IGNITER

€ 195.00

21119A

211191233
ref: 21119A
CA

IGNITER

€ 359.50

21121

211211163
ref: 21121

COIL-IGNITION

€ 144.50

21130

211301056
ref: 21130

CAP-SPARK PLUG

€ 38.00

59026

590261086
ref: 59026

COIL-PULSING

€ 111.00

92027

92027103
ref: 92027

COLLAR

€ 2.50

92070

920701131
ref: 92070
CAUS

SPARK PLUG,C8HA,C8HA,C8HSA

€ 1.50

92070A

920701155
ref: 92070A
CN

CR8HSA (NGK SPARKPLUG

€ 4.00

92160

921601181
ref: 92160

DAMPER,IGNITER

€ 25.00
