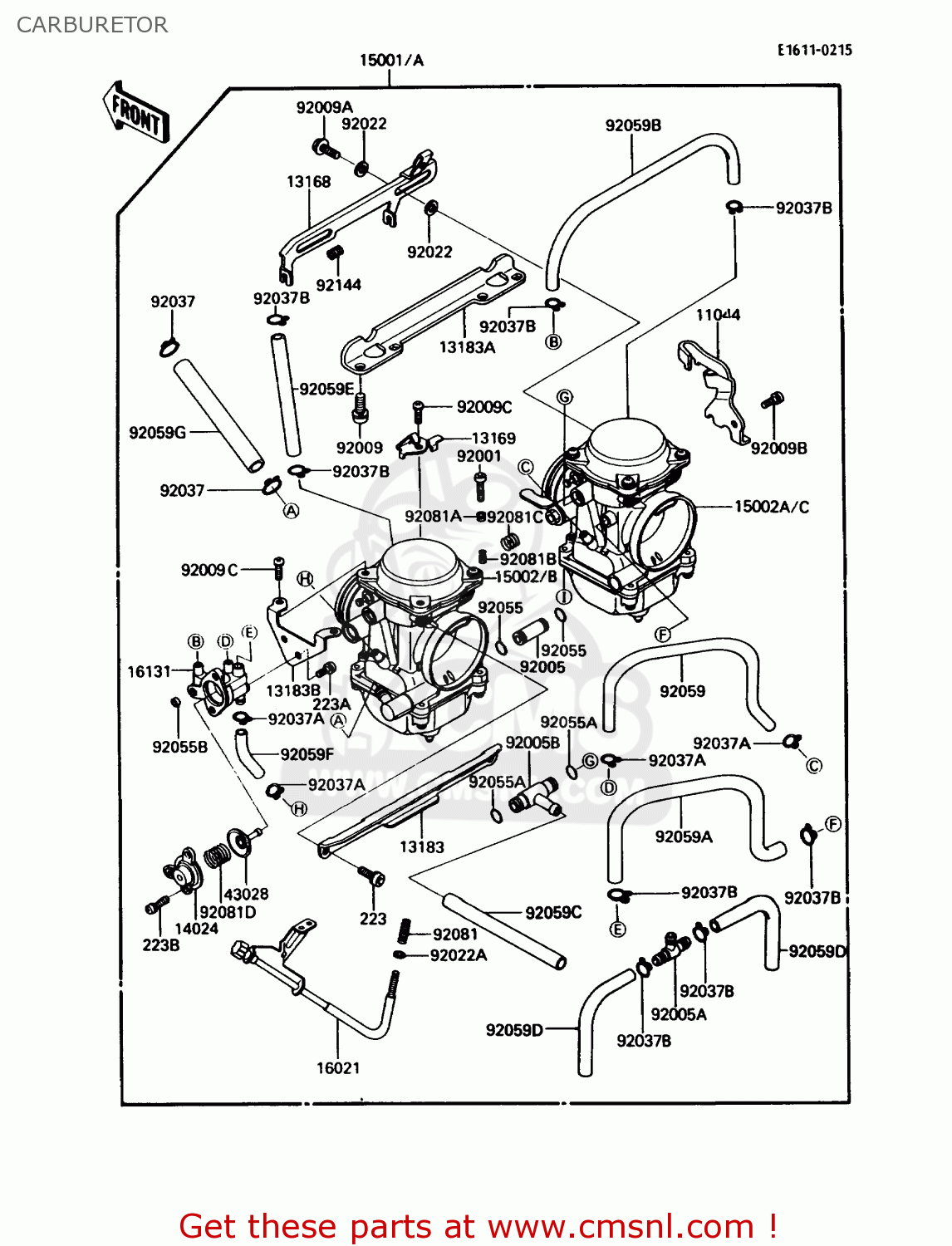

CARBURETOR

ref

part #

description

quantity

11044

110441061
ref: 11044

BRACKET,THROTTLE CABL

€ 44.00

13168

131681330
ref: 13168

LEVER,STARTER

€ 59.50

13169

131691965
ref: 13169

PLATE,STARTER CABLE

€ 26.50

13183

131831029
ref: 13183

PLATE,CARBURETOR STAY

€ 49.00

13183A

131831030
ref: 13183A

PLATE

€ 21.50

13183B

131831031
ref: 13183B

PLATE,AIR CUT VALVE

€ 28.50

14024

140241327
ref: 14024

COVER,AIR CUT VALVE

€ 43.00

15001

150011433
ref: 15001
CNUS

CARBURETOR ASSEMBLY

€ 652.50

15001A

150011434
ref: 15001A
CA

CARBURETOR ASSEMBLY

€ 652.50

15002

150021600
ref: 15002
CNUS

CARBURETOR,LH

€ 375.50

15002A

150021601
ref: 15002A
CNUS

CARBURETOR,RH

€ 375.50

15002B

150021602
ref: 15002B
CA

CARBURETOR,LH

€ 375.50

15002C

150021603
ref: 15002C
CA

CARBURETOR,RH

€ 375.50

16021

160211114
ref: 16021

SCREW-THROTTLE STOP

€ 84.50

16131

161311062
ref: 16131

BODY-VALVE,DIAPHRAGM

€ 51.50

43028

430281053
ref: 43028

DIAPHRAGM,5.9MM,AIR C

€ 62.50

92001

920011998
ref: 92001

BOLT,THROTTLE ADJUST

€ 11.50

92005

920051109
ref: 92005

FITTING,FUEL,I-TYPE

€ 25.00

92005A

920051112
ref: 92005A
CA

FITTING,FUEL,T-TYPE

€ 10.00

92005B

920051125
ref: 92005B

FITTING,T-TYPE

€ 18.00

92009

920091129
ref: 92009

SCREW,6X16

€ 3.00

92009A

920091262
ref: 92009A

SCREW

€ 4.00

92009B

920091365
ref: 92009B

SCREW

€ 4.50

92009C

920091446
ref: 92009C

SCREW,4X18

€ 4.00

92022

920221199
ref: 92022

WASHER,6.1X11X0.8,POL

€ 3.00

92022A

920221480
ref: 92022A

WASHER,PLAIN,STOP SPR

€ 3.00

92037

920371075
ref: 92037

CLAMP,FUEL INLET TUBE

€ 2.50

92037A

920371142
ref: 92037A

CLAMP,TUBE

€ 2.50

92037B

920371477
ref: 92037B
CNUS

CLAMP,TUBE

€ 3.00

92037B

920371477
ref: 92037B
CA

CLAMP,TUBE

€ 3.00

92055

920551004
ref: 92055

O RING

€ 2.50

92055A

920551223
ref: 92055A

RING-O,FUEL FITTING

€ 3.50

92055B

920551245
ref: 92055B

RING-O

€ 3.50

223

223C0510
ref: 223

SCREW-PAN-WS-CROS

€ 2.50

223A

223D0408
ref: 223A

SCREW-PAN-WS-CROS

€ 1.00

223B

223D0410
ref: 223B

SCREW-PAN-WS-CROS

€ 2.50

92059

920591140
ref: 92059

TUBE,3.5X6.5X180

€ 17.50

92059A

920591201
ref: 92059A

TUBE,5X9X160

€ 14.50

92059B

920591377
ref: 92059B
CNUS

TUBE,5X9X180

€ 16.50

92059C

920591465
ref: 92059C

TUBE,6.5X9.5X500

€ 20.50

92059D

920591627
ref: 92059D
CA

TUBE,5X9X90

€ 7.00

92059E

920591634
ref: 92059E

TUBE,5X9X140

€ 12.00

92059F

920591722
ref: 92059F

TUBE

€ 15.50

92059G

920591860
ref: 92059G

TUBE,7.3X12.5X150

€ 14.00

92081

920811617
ref: 92081

SPRING,THROTTLE STOP

€ 3.50

92081A

920811620
ref: 92081A

SPRING,THROTTLE ADJUS

€ 3.00

92081B

920811621
ref: 92081B

SPRING,THROTTLE ADJUS

€ 3.00

92081C

920811622
ref: 92081C

SPRING,THROTTLE ADJUS

€ 6.50

92081D

920811719
ref: 92081D

SPRING,AIR CUT VALVE

€ 8.50

92144

921441048
ref: 92144

SPRING,STARTER LEVER

€ 7.00

all assemblies
