GENERATOR

EX250F3 NINJA 250R 1989 USA CALIFORNIA CANADA

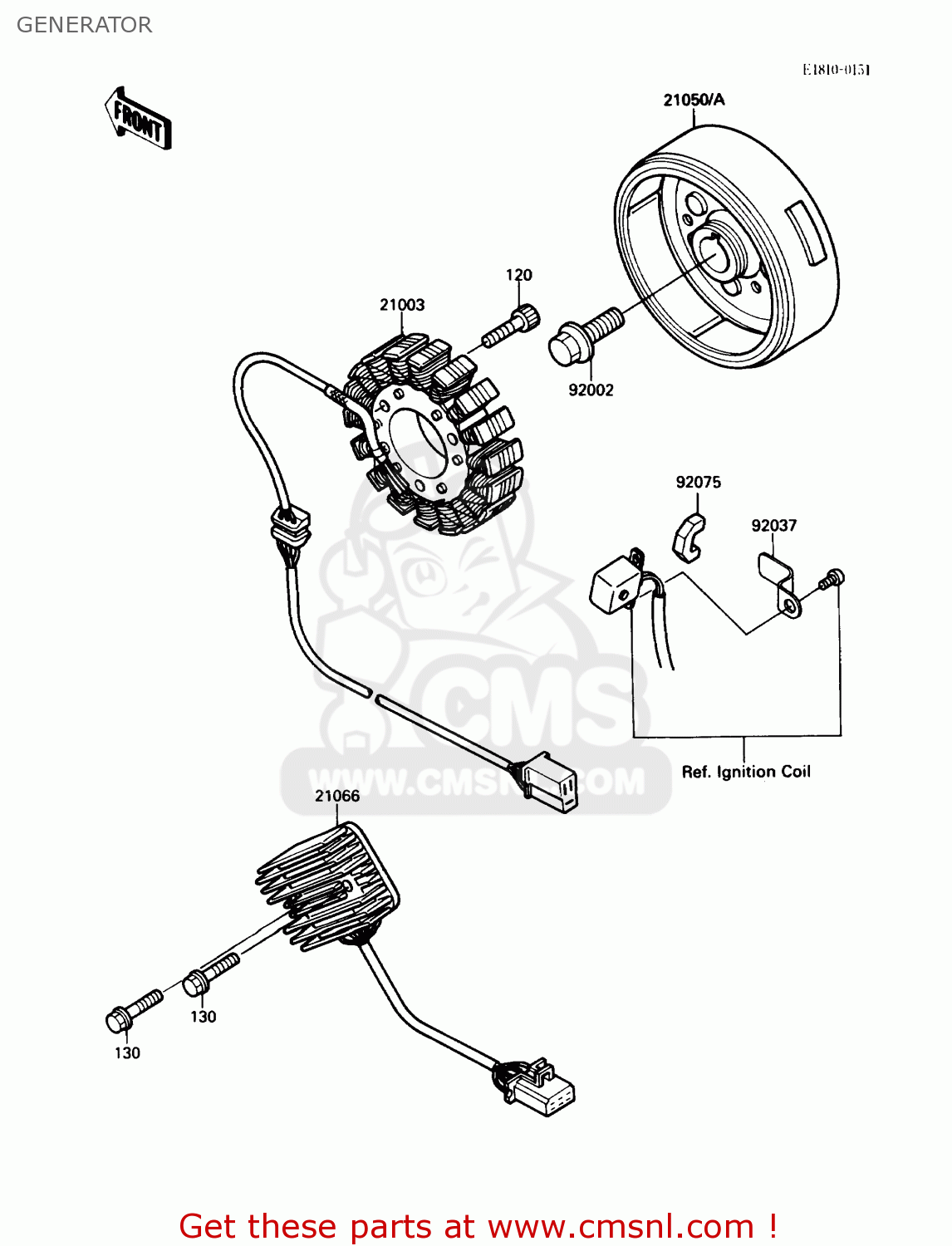

Generator diagram EX250F3 NINJA 250R 1989 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

120

120P0625
ref: 120

BOLT,6X25

€ 1.50

130

130B0625
ref: 130

BOLT,FLANGED,6X25

€ 0.50

21003

210031154
ref: 21003

STATOR

€ 484.00

21050

210501129
ref: 21050
CNUS

FLYWHEEL

€ 459.50

21050A

210501134
ref: 21050A
CA

FLYWHEEL

€ 307.50

21066

210661030
ref: 21066

REGULATOR-VOLTAGE

€ 176.00

92002

920021688
ref: 92002

BOLT,10X28

€ 7.00

92037

920371919
ref: 92037

CLAMP

€ 3.00

92075

920751811
ref: 92075

DAMPER

€ 4.00
