REAR HUB
ER500C1 ER5 2001 CANADA

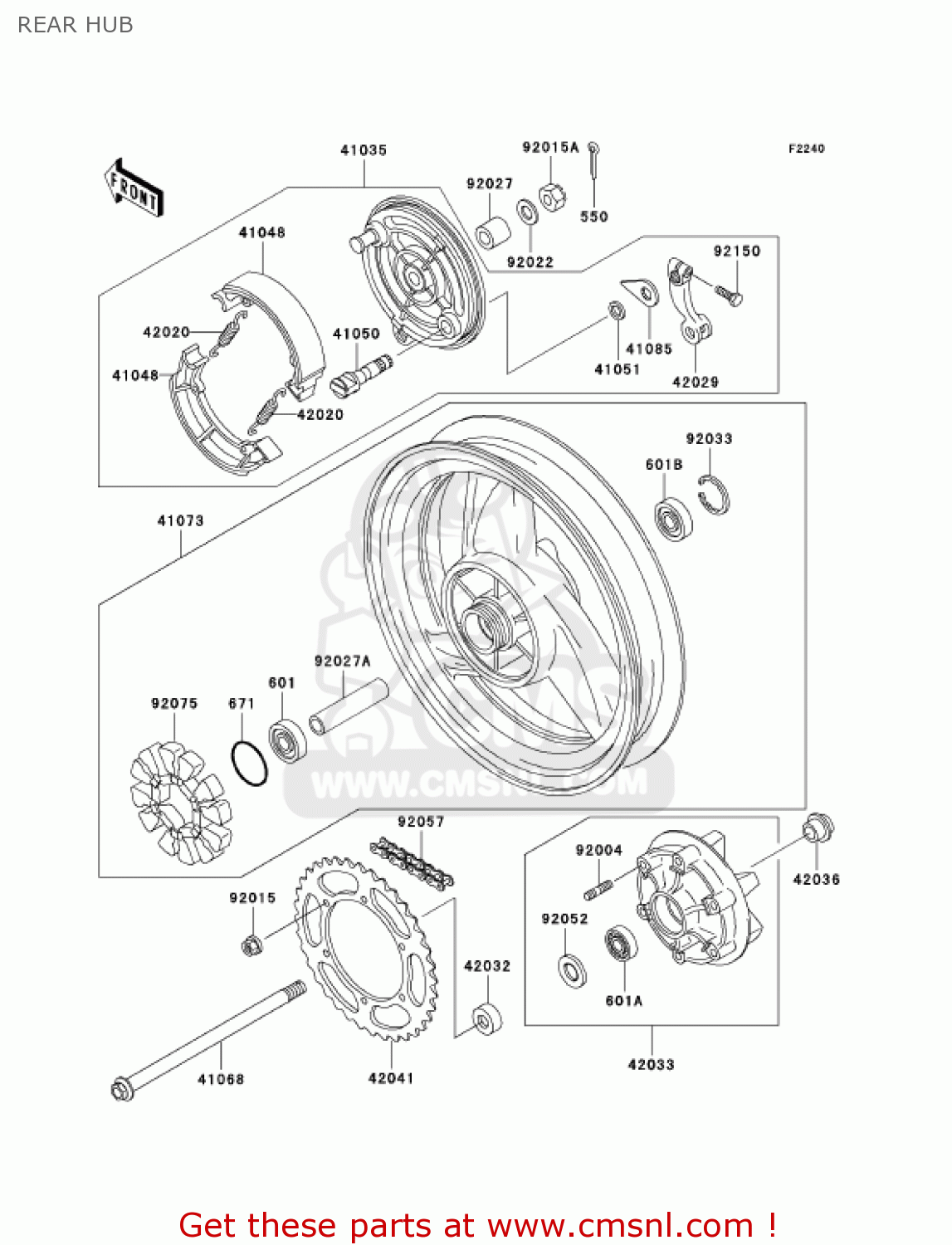

Rear hub diagram ER500C1 ER5 2001 CANADA
REAR HUB ER500C1 ER5 2001 CANADA
×
prices are in EUR
ref
part #
description
quantity
550
550D4035
ref: 550
PIN-COTTER,4.0X35
€ 1.00
601
601B6203UU
ref: 601
BEARING-BALL,#6203UUC
€ 25.00
601A
601B6205G
ref: 601A
BEARING BALL
€ 14.00
601B
601B6303UU
ref: 601B
BEARING-BALL,6303LLUC
€ 30.50
671
671B2550
ref: 671
O RING,50MM
€ 1.50
41035
410351301GD
ref: 41035
PANEL-ASSY-BRAKE,RR,G
€ 443.50
41048
410481069
ref: 41048
SHOE-BRAKE (NAS)
€ 26.00
41050
410501065
ref: 41050
CAM-BRAKE
€ 29.00
41051
41051003
ref: 41051
DUST SHIELD-BRAKE CAM
€ 2.50
41068
410681191
ref: 41068
AXLE,RR
€ 55.50
41073
410731615GE
ref: 41073
WHEEL-ASSY,RR,G.GRAY
€ 862.50
41085
41085004
ref: 41085
INDICATOR,BRAKE SHOE
€ 10.00
42020
42020004
ref: 42020
SPRING-BRAKE SHOE
€ 5.50
42029
42029039
ref: 42029
LEVER REAR BRAKE CAM
€ 37.00
42032
42032063
ref: 42032
COLLAR,RR AXLE,L=13
€ 15.00
42033
4203312107J
ref: 42033
COUPLING-ASSY,RR HUB,
€ 213.00
42036
420361055
ref: 42036
SLEEVE,L=25
€ 19.00
42041
420411279
ref: 42041
SPROCKET-HUB,42T
€ 40.00
92004
920041275
ref: 92004
STUD
€ 6.50
92015
920151335
ref: 92015
NUT,FLANGED,10MM
€ 1.50
92015A
920151947
ref: 92015A
NUT
€ 6.50
92022
920221916
ref: 92022
WASHER
€ 3.00
92027
920271257
ref: 92027
COLLAR,17.2X30X24.5
€ 21.50
92027A
920271555
ref: 92027A
COLLAR,17.2X25X96
€ 13.00
92033
920331042
ref: 92033
CIRCLIP,47M/M
€ 4.00
92052
92052006
ref: 92052
OIL SEAL WTC35527
€ 6.50
92057
920571288
ref: 92057
CHAIN,DRIVE,EK520SX-O
€ 107.50
92075
920751436
ref: 92075
DAMPER,RR HUB SHOCK
€ 65.00
92150
921501797
ref: 92150
BOLT
€ 3.50
